2014-2016 Mercedes-Benz CLA250 Front End Assembly: A Guide to Sport, Base, and Sensor Variants
This guide details the critical differences in front end assemblies for the 2014-2016 CLA250, ensuring you get the right parts for a perfect fit after a collision.
- Compatibility is critical: You must match the bumper style (Base vs. AMG Sport), Parktronic sensors (yes/no), and headlamp washers (yes/no).
- Always use the donor vehicle's VIN to verify its options before buying a used assembly to guarantee fitment.
- Used OEM parts are strongly recommended over new aftermarket parts for better fit, quality, and safety performance.
- Replacement is a complex, high-difficulty job that involves multiple vehicle systems and requires professional paint and panel alignment.
Key Variants for 2014-2016 CLA250 Front Ends
When replacing a front end assembly on a 2014-2016 CLA250 (C117 chassis), precision is key. Mercedes-Benz offered several options that change the shape, mounting points, and wiring of the front-end components. Ordering the wrong parts will lead to fitment issues, non-functioning electronics, and warning lights. Always verify the donor vehicle's options using its VIN before purchasing a used assembly.
1. Bumper Styling: Standard (Base) vs. AMG Sport Package
The most significant variation is the bumper styling. The two are not interchangeable without swapping multiple associated parts.
- Standard (Base) Bumper: Features a simpler, less aggressive design. The lower grilles are typically smaller and have a more conservative pattern.
- AMG Sport Package Bumper: This was a popular option that gives the car a look closer to the high-performance CLA45 AMG. It features larger, more aggressive lower air intakes, often with chrome or gloss black trim accents. The overall shape is distinct and will not align with a standard car's fender liners or undertray correctly.
2. Parking Sensors: Parktronic vs. No Parktronic
Mercedes' parking assist system, called Parktronic, uses ultrasonic sensors embedded in the front and rear bumpers. A bumper's compatibility depends on whether the vehicle has this feature.
- With Parktronic: The bumper cover will have several small, circular cutouts for the sensors. The assembly will include a wiring harness that connects these sensors.
- Without Parktronic: The bumper cover is smooth, with no sensor holes. You cannot easily add sensors to a bumper that was not made for them.
Pro Tip: Even if a bumper has sensor holes, the system may be called 'Active Park Assist', which is a more advanced version. Always match the exact system from the donor car to your vehicle to avoid compatibility problems.
3. Headlamp Washers
Vehicles equipped with optional Xenon/HID headlights often came with a high-pressure headlamp washing system.
- With Headlamp Washers: The bumper cover will have small, rectangular or shaped cutouts below each headlight for the pop-up washer nozzles.
- Without Headlamp Washers: The area below the headlights is solid plastic.
Symptoms of a Damaged Front End Assembly
Failure of a front end assembly is almost always the result of a collision. The symptoms are typically obvious but can have cascading effects on other vehicle systems.
- Visible Cosmetic Damage: This includes cracked or torn bumper covers, dented fenders or hood, and broken grilles.
- Structural Misalignment: Poor panel gaps between the hood, fenders, and bumper can indicate a bent radiator support or frame damage.
- Cooling System Leaks: A frontal impact can easily damage the radiator or A/C condenser, which sit directly behind the bumper. Look for dripping coolant (typically green, blue, or pink) or a non-functioning air conditioning system.
- Warning Lights and Sensor Errors: Damage to the front end can sever wires or break sensors for the Parktronic system, ambient air temperature, or any forward-facing radar modules used for driver assistance. You may see messages like "Parktronic Inoperative" on the dash.
Known Issues, Recalls, and TSBs
While there are no recalls specifically for the front end assembly itself, several recalls and service bulletins apply to components located within it for the 2014-2016 CLA250.
- Recall 23V854000 (Sunroof Panel Detachment): On some vehicles, the front roof panel between the windshield and sunroof may not have been bonded correctly during a prior repair, creating a risk of it detaching. While not part of the front clip, this is a notable body panel issue for this generation.
- Recall 17V627 (Driver Airbag Deployment): Insufficient grounding of the steering column components could lead to an inadvertent driver airbag deployment. The fix involves adding a grounding wire.
- TSB LI54.65P056779 (Parktronic Inoperable): A technical service bulletin was issued for inoperable Parktronic systems, which could be related to sensor or control unit issues.
- TSB for Fogging Headlamps: Mercedes has noted that some headlamp fogging can be a natural physical phenomenon under certain weather conditions and may not indicate a leak. However, excessive water inside the housing points to a bad seal or crack.
Buying a Used Front End Assembly: What to Check
Purchasing a complete, used OEM front end assembly is often the most cost-effective way to perform a quality repair. Aftermarket panels frequently suffer from poor fitment, requiring extra labor to align, and may not meet the same safety standards as original parts.
Inspection Checklist:
- Verify Compatibility with the Donor VIN: This is the most critical step. Get the Vehicle Identification Number (VIN) from the car the parts came from. A Mercedes-Benz dealer or a specialized online service can use the VIN to provide a 'datacard' listing all factory-installed options, including AMG Sport Package, Parktronic, and headlamp type. Match this to your car's options.
- Inspect the Bumper Cover Thoroughly: Look for more than just surface scratches. Check all mounting tabs on the top and sides, as these are easily broken. Flex the plastic to reveal hidden cracks, especially around sensor mounts or grille openings.
- Examine the Radiator Support: This is the core structural piece. Look for any signs of cracks, stress marks in the plastic, or bends in any metal portions. A damaged radiator support will prevent everything else from aligning correctly.
- Check the Headlights: Inspect the headlight housings for deep scratches, cracks, or yellowing/hazy lenses. Check that all mounting tabs are intact. Broken tabs are a very common issue and can make the headlight impossible to secure and align.
- Confirm All Grilles and Trim are Included: A complete assembly should include the main center grille (with the star), lower bumper grilles, and any decorative trim. These small plastic pieces can be surprisingly expensive to buy separately.
- Check the Wiring Harness: If the car has Parktronic, ensure the sensor wiring harness is present and undamaged. Any cuts or broken connectors will cause system errors.
Cost of Replacement
Replacing the front end assembly is a significant repair. Costs can vary widely based on the specific parts needed and labor rates.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Bumper Cover (Unpainted) | $500 - $800 |
| New Aftermarket Bumper Cover (Unpainted) | $250 - $450 |
| Used OEM Front End Assembly (Bumper, Support, Grilles) | $1,000 - $2,500+ |
| Shop Labor (Installation) | $600 - $1,200 |
| Paint (Bumper, Fenders, Hood) | $800 - $2,000+ |
Note: These prices are estimates. A complete new OEM front end assembly from the dealer, including a hood, fenders, headlights, and all small components, can easily exceed $5,000 before labor and paint.
Installation Overview
- Difficulty: 4 out of 5
- Time: 6-10 hours for a complete assembly swap
Replacing a full front end assembly is a complex job best suited for experienced DIYers or a professional body shop. The process involves disconnecting electrical components, draining the cooling system, and carefully aligning multiple panels.
Key Steps:
- Disconnect the battery.
- Remove the front wheels and fender liners to access bumper and fender bolts.

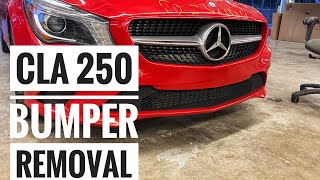

- Unbolt the bumper cover from the fenders, undertray, and radiator support. 🎬 Watch this step-by-step CLA250 front bumper removal guide Disconnect any sensor or lighting wiring.
- Drain the radiator and disconnect coolant hoses. Discharge and disconnect the A/C condenser lines (requires specialized equipment).
- Unbolt and remove the entire radiator support assembly with the radiator and condenser attached.
- Unbolt and remove the fenders and hood.
- Installation is the reverse of removal. Panel alignment is a time-consuming process that requires patience to achieve even gaps.
Warning: After installation, any driver assistance systems that use front-facing sensors (like Parktronic) may require recalibration with a diagnostic scan tool to function correctly.
Frequently Asked Questions (FAQ)
Can I upgrade my standard CLA250 to the AMG Sport bumper?
Yes, but it is not a direct swap. To do it correctly, you will need the AMG-style bumper cover, all associated lower grilles, the correct fender liners, and potentially the front undertray, as they are shaped differently to match the more aggressive bumper.
My parking sensors are acting up, especially when it's wet. Is the sensor bad?
It's possible, but not always. The Parktronic system is sensitive to dirt, water, and even heat. Sometimes, a sensor can be pushed slightly into the bumper, affecting its reading. Before replacing a sensor, ensure all sensors are perfectly clean and properly seated in the bumper. If the problem persists, a diagnostic scan can identify which specific sensor is faulting.
Will a front end from a CLA45 AMG fit my CLA250?
While they look similar, there can be subtle differences in the mounting for cooling components and grilles designed for the higher-output AMG engine. It is safest to use a front end from another CLA250 with the Sport Package to ensure proper fitment of all underlying parts.
Do I have to paint a used bumper cover?
Almost certainly, yes. Even if you find a used bumper in the same color, there will be slight variations due to sun exposure and different paint batches. For a perfect match, a body shop will need to blend the paint into the adjacent panels (fenders and hood). Some retailers sell new, pre-painted bumpers, but you must provide your VIN for a precise color match.

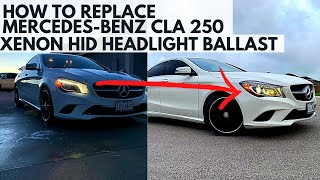

Helpful Videos
Technical Specifications
OEM Part Numbers: 1178800040 11788000409999 1178800840 11788008409999 1178803300 1178804540 11788045409999 1178804740 11788047409999 1178200261 1178204461 1178204561 1178205161 1178206761 1178206861 1178800057 117880005764 1178800140 1178800740
Fits C117 chassis. Variations exist for Standard vs. AMG Sport styling, with/without Parktronic sensors, and with/without headlamp washers.
