2010-2013 Lexus GX460 Front End Guide: Matching Bumpers, Grilles, and Sensors

The Biggest Challenge: Verifying Options Before You Buy

The single most important factor when purchasing a replacement front end assembly for a 2010-2013 Lexus GX460 is matching the optional equipment your vehicle has. Lexus offered several configurations that change the physical shape and mounting points of the bumper and grille. Installing the wrong components can result in parts that don't fit, features that no longer work, and warning lights on your dashboard.

Pre-Collision System (PCS)

The Pre-Collision System (PCS) uses a radar sensor to detect potential frontal crashes. On the 2010-2013 GX460, this sensor is located behind the Lexus emblem in the center of the grille. Vehicles with PCS have a specific grille and emblem designed to allow the radar waves to pass through. A standard grille will block the sensor, rendering the system inoperative and triggering a "PCS Warning" message on the dash.

• How to check: Look at your grille emblem. The PCS-compatible emblem is a flat, smooth plastic piece. The standard emblem has a raised, three-dimensional logo. You can also check for the PCS on/off button, which is often located low on the dashboard, sometimes hidden near the driver's knee area.

Front Parking Sensors

The Park Assist system uses ultrasonic sensors embedded in the front and rear bumpers to detect objects. Front bumpers designed for this system have four round cutouts for these sensors. A bumper cover without these holes cannot be easily modified to fit them, and a bumper with the holes will look incorrect on a vehicle that doesn't have the sensors or wiring harness.

• How to check: Simply look at your front bumper cover. You will see four small, circular sensors, each about the size of a quarter, distributed across the front face.

Adaptive Front-Lighting System (AFS) & Headlight Washers

The Adaptive Front-Lighting System (AFS) swivels the headlight beams as you turn the steering wheel to better illuminate corners. This was typically part of a package that included HID (High-Intensity Discharge) headlights. While this doesn't change the main bumper, it was often paired with pop-out headlight washers, which do require specific cutouts in the bumper cover. AFS-equipped vehicles also have different headlight assemblies and wiring.

• How to check: Look for rectangular cutouts below each headlight for the pop-out washer nozzles. If your vehicle has AFS, you will also see an "AFS OFF" switch on the dashboard.

Symptoms of a Damaged Front End Assembly

Since the front end is a collection of body parts, "failure" is almost always due to physical impact. Symptoms are usually obvious.

• Visible Damage: This is the most common symptom. Look for cracks in the plastic bumper cover, dents, deep scratches, or a broken grille. Mounting tabs, which are critical for proper alignment, are often broken in minor impacts.
• Poor Panel Gaps: After an impact, even if the main cover looks okay, the underlying reinforcement bar or mounting brackets could be bent. This will cause uneven gaps between the bumper, fenders, and hood.
• Warning Lights: An impact can easily damage the parking sensors or the Pre-Collision radar sensor. This will trigger warnings like "Check Parking Sensor" or "PCS Warning" on the instrument cluster.

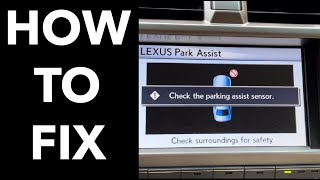

🎬 See how to replace a broken Lexus GX460 parking sensor
• Wind Noise: A loose or improperly fitted bumper can create whistling or rushing noises at highway speeds.

Buying a Used 2010-2013 GX460 Front End Assembly: A Checklist

A used OEM front end assembly can be an excellent value, offering better fit and durability than aftermarket alternatives. However, careful inspection is key.

1. Confirm Compatibility: Before anything else, verify the donor vehicle's options. Does it have PCS? Parking Sensors? Headlight Washers? Match these to your own vehicle perfectly. The VIN of the donor vehicle is the best way to confirm its original equipment.
2. Inspect for Hidden Damage: Look at the back side of the bumper cover. Check for plastic welding, epoxy, or fiberglass repairs that indicate a previous fix. These repairs may not last.
3. Check All Mounting Tabs: Carefully inspect all the plastic tabs and slots, especially along the top edge where the bumper meets the grille and headlights, and on the sides where it attaches to the fenders. Broken tabs are a major red flag and will prevent the bumper from sitting flush.
4. Clarify What's Included: A "front end assembly" can mean different things to different sellers. Confirm if the sale includes the bumper cover, upper grille, lower grille, fog lights, reinforcement bar, foam absorber, and wiring harnesses.
5. Assess the Paint: Unless the used part is the exact same color as your vehicle, it will need to be repainted. Factor the cost of prep and paint into your budget. Even if the color matches, inspect for deep scratches, peeling clear coat, or rock chips.

Known Issues, Recalls, and Service Bulletins

While the front end components themselves are not subject to many issues beyond damage, the 2010-2013 GX460 had a few notable recalls and warranty extensions.

• NHTSA Recall 10V176000: A significant recall was issued for early 2010 models for the Vehicle Stability Control (VSC) system. The software could be slow to react in certain high-speed turns, potentially leading to a skid. Dealers performed a software update to correct this. While not directly a front-end part, it's a critical safety item for the model year.
• Takata Airbag Recalls: Like millions of other vehicles, the 2010-2013 GX460 was included in the massive Takata airbag inflator recalls. These recalls address front passenger-side inflators that could rupture during deployment.
• Warranty Enhancement (ZE3): Lexus extended the warranty for the air injection pumps and air switching valves, which can fail due to moisture and trigger a check engine light. This is not related to the front bumper but is a common issue for these model years.

Cost of Replacement (2010-2013 GX460)

Prices can vary based on the specific part numbers needed for your vehicle's options. The following is an estimate for the main components.

Installation Overview

• Difficulty: 2 out of 5. The process is straightforward but requires care to avoid scratching paint.
• Time: 1.5 - 2.5 hours for removal and replacement (not including paint).
• Tools: Basic hand tools like a 10mm socket, screwdrivers, and plastic trim removal tools are needed.
• Process: The bumper is held on by a series of bolts under the front edge, clips and screws in the wheel wells, and clips along the top edge under the hood. After removing fasteners, carefully disconnect any wiring for fog lights and sensors before pulling the bumper away from the vehicle.
• Calibration: If you disturb, replace, or install a new Pre-Collision System sensor, it may require calibration by a Lexus dealer or a qualified shop with the correct equipment to function properly.
