2019-2022 Honda Pilot Grille Support Bracket: Fixing Panel Gaps & Hood Vibration
The definitive guide to diagnosing, replacing, and sourcing the correct upper grille bracket for your Pilot, including a critical 2019 model year safety warning.
- For 2019 models, a broken bracket can cause hood vibration linked to a critical hood latch failure recall (NHTSA 21V932000).
- When buying a used bracket, the integrity of the small plastic mounting tabs is more important than any cosmetic scuffs.
- Replacement requires the complete removal of the front bumper cover, which is the most time-consuming part of the job.
- Using a genuine used OEM part is often better than a new aftermarket one to ensure perfect fitment and avoid panel gaps.
Critical Safety Warning: 2019 Honda Pilot Hood Latch Recall
Warning: For 2019 Honda Pilot models, a broken or improperly fitted upper grille bracket can be a serious safety concern. NHTSA Campaign Number 21V932000 addresses an issue where an incorrect gap between the hood and grille causes the hood to vibrate at speed. This vibration can damage the hood latch striker, potentially causing the hood to fly open while driving. 🎬 Watch: Honda's official hood striker recall details If your grille is loose or damaged on a 2019 Pilot, it is crucial to have it inspected immediately to prevent this potential failure.
Symptoms of a Failed Upper Grille Bracket
Failure of this bracket is almost always caused by a front-end impact, even a minor one. Since it is a structural support piece, the symptoms are primarily visual and auditory.
- Sagging Grille or Bumper: The most common symptom is a visible sag in the center of the grille or the top edge of the bumper cover.
- Uneven Panel Gaps: You will notice a large or uneven gap between the top of the grille and the bottom edge of the hood. The gaps between the bumper, headlights, and fenders may also appear misaligned.
- Vibration or Rattling: A loose or broken bracket will allow the grille and bumper assembly to vibrate or rattle, especially when driving over bumps or at highway speeds.
Understanding Part Numbers
There can be some confusion when ordering this part. The main, central support piece is often called the "Upper Grille Support" in repair videos and guides. However, parts catalogs often list smaller, related brackets. For example, part number 71198-TG7-A51 is a smaller "Bumper Cover Spacer" located on the front left side, not the main central support. When sourcing a replacement, be sure to use photos to confirm you are buying the large, horizontal bracket that spans the area over the radiator.

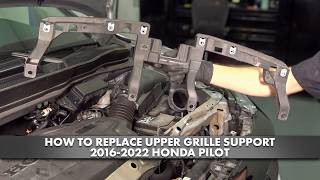

🎬 See this upper grille support replacement walkthroughBuying a Used Front Bumper Upper Grille Bracket
Because this is a simple, non-wear item, a used OEM bracket from an undamaged vehicle is an excellent choice. It will offer the same fit and durability as a new part at a lower cost. Aftermarket versions can be brittle and may not have the precise molding of an OEM part, leading to installation problems and poor panel alignment.
Before buying a used bracket, perform a thorough inspection:
- Check for Cracks: Carefully inspect the entire part for any cracks, no matter how small. Pay close attention to the areas around screw holes and mounting points, as this is where stress is concentrated.
- Inspect All Mounting Tabs: This is the most critical check. Ensure every clip slot, screw hole, and mounting tab is intact and not broken, bent, or stressed (indicated by white discoloration in the plastic). A single broken tab can prevent the grille from sitting flush.
- Look for Stress Marks: Bend the part slightly to check for flexibility. Look for any white stress lines in the plastic, which indicate it has been impacted or bent in the past and is weakened.
- Confirm Vehicle Year Range: The front end of the Pilot was refreshed for the 2019 model year. Brackets from 2016-2018 models will not fit. Ensure the part is from a 2019, 2020, 2021, or 2022 Pilot.
Cost Comparison for Replacement
The cost of this repair depends heavily on whether you do it yourself or use a repair shop, as the main expense is the labor required to remove and reinstall the front bumper cover.
| Part/Service | Estimated Cost | Notes |
|---|---|---|
| New OEM Bracket | $50 - $100 | Price for the main upper support can vary; smaller side brackets are much cheaper ($5-$10). |
| New Aftermarket Bracket | $30 - $60 | Fitment may not be as precise as OEM. |
| Used OEM Bracket | $25 - $60 | Best value, provided it's from an undamaged vehicle. |
| Shop Labor | $150 - $300 | Based on 1.5-2 hours of labor to remove and reinstall the front bumper cover. |
Replacement Guide
Replacing the upper grille bracket requires removing the entire front bumper cover assembly. While it doesn't require specialized tools, it is tedious and requires care to avoid scratching the paint or breaking plastic clips.
🎬 Watch: How to safely remove the front bumper cover- Difficulty: 3/5 (Moderate)
- Estimated Time: 2 hours
- Tools Needed: Ratchet with 10mm socket, Phillips screwdriver, flathead screwdriver, plastic trim removal tool set.
Pro Tip: A plastic trim removal tool set is essential for this job. Using a metal screwdriver to pry clips will almost certainly scratch your paint or break the delicate plastic tabs on the bumper and trim.
Step-by-Step Overview
- Open the Hood: Remove the plastic radiator shroud cover by popping out the series of push-clips.
- Remove Upper Fasteners: Remove the clips and bolts securing the top of the grille and bumper cover to the core support.
- Remove Wheel Well Screws: In each front wheel well, remove the Phillips head screws that secure the edge of the bumper cover to the fender.
- Remove Underside Fasteners: Remove the bolts and clips holding the bottom of the bumper cover to the splash shield.
- Release Bumper Sides: This is the trickiest step. Carefully and firmly pull the sides of the bumper cover away from the body, releasing them from the retaining brackets under the headlights. Start from the edge by the wheel well and work your way in.
- Disconnect Wiring (if applicable): With a helper holding the bumper, pull it forward slightly and disconnect any electrical connectors for fog lights or parking sensors. Place the bumper cover on a soft blanket to prevent scratches.
- Replace the Bracket: The upper grille support bracket is now exposed. Unbolt it from the radiator core support, swap in the new one, and tighten the bolts.
- Reassembly: Carefully reverse the process. Pay close attention to aligning the bumper cover with the brackets under the headlights before snapping it into place.
Frequently Asked Questions
Can I drive with a broken upper grille bracket?
Yes, but it's not recommended for long. The grille and bumper will be loose and can vibrate, and in a worst-case scenario, the bumper cover could catch the wind and be torn off at highway speeds. For 2019 models, it is more urgent to fix due to the associated hood latch safety recall.
Is this a left or right side part?
The main upper grille support is a single, large bracket that spans the center of the vehicle. It is not side-specific. However, there are smaller side brackets and spacers, so be sure you are ordering the correct part for your needs.
Will this bracket fit a 2018 or older Honda Pilot?
No. The Honda Pilot received a significant front-end facelift for the 2019 model year. Parts like the grille, bumper, and their associated brackets are not interchangeable with the 2016-2018 models.
Are there any other recalls I should know about for my 2019-2022 Pilot?
Yes. Other notable recalls for this generation include a faulty coaxial cable that can cause the rearview camera to fail (NHTSA 23V-431) and a rear subframe corrosion issue for vehicles operated in salt-belt states. You can check if your specific vehicle is affected by entering your VIN on the NHTSA website.
Helpful Videos
Technical Specifications
OEM Part Numbers: 71198-TG7-A51 (Front Left Bumper Side Spacer)
The primary part is a single-piece, injection-molded plastic bracket. It is not side-specific. Note that cataloged part numbers may refer to smaller, related brackets rather than the main upper support.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
