1998-2002 Daewoo Lanos Flywheel: Guide to Failures, Replacement, and Used Parts
This is your definitive guide to diagnosing a bad flywheel on a 1.6L manual transmission Lanos and finding a quality used replacement.
- This flywheel is ONLY for 1998-2002 Daewoo Lanos models with a 1.6L engine and a manual transmission.
- Before buying, you must verify the flywheel has a 135-tooth ring gear and a 5-bolt mounting pattern.
- Replacement is a major, labor-intensive job (5/5 difficulty) that requires removing the transmission. Always replace the clutch kit at the same time.
- When buying a used flywheel, carefully inspect the friction surface for heat cracks, the ring gear for damaged teeth, and the body for any cracks.
Flywheel vs. Flex Plate: A Critical Distinction
The 1998-2002 Daewoo Lanos was sold with both manual and automatic transmissions. It is crucial to understand that these two transmissions use different parts. Manual transmission models use a flywheel, which is a heavy, solid disc. Automatic transmission models use a flex plate, which is a much thinner, lighter stamped steel plate. This guide and the part numbers listed are exclusively for the flywheel used in 1.6L manual transmission models only.
Common Symptoms of a Failing Daewoo Lanos Flywheel
A failing flywheel can cause a range of problems, from annoying noises to making the car undrivable. Here are the most common signs to watch for:

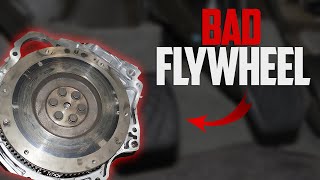

🎬 Watch this overview of bad flywheel symptoms and replacement costs- Clutch Chatter or Shudder: When you release the clutch from a stop, the car may shake or shudder violently. This is often the most common symptom and is caused by an uneven, warped, or heat-damaged flywheel surface that prevents the clutch from engaging smoothly.
- Vibration Through the Clutch Pedal: You may feel a noticeable vibration or pulsation in the clutch pedal as you press and release it. This can be caused by a warped flywheel or worn internal components on dual-mass types, though the Lanos uses a solid flywheel.
- Gears Slipping: If the flywheel surface is excessively worn or glazed (hardened and smooth from heat), the clutch disc can't get enough grip. This will feel like the engine is revving up, but the car isn't accelerating proportionally, especially under load.
- Difficulty Shifting Gears: A warped flywheel can cause issues with clutch disengagement, making it hard to shift into or out of gear.
- Burning Smell: A strong burning smell, similar to burnt toast, indicates excessive heat from a slipping clutch. While this is often a sign of a worn clutch disc, it also means the flywheel surface is likely being damaged by the intense heat.
- Grinding or Whirring Noises: If you hear a grinding noise when you try to start the engine, it could be caused by broken or worn teeth on the flywheel's ring gear, preventing the starter from engaging properly.
Buying a Used 1998-2002 Lanos Flywheel: A Buyer's Guide
Since new OEM flywheels can be difficult to find, a quality used OEM part is an excellent option. Used OEM parts often offer better material quality and fitment than cheap aftermarket alternatives. Here’s what to check before you buy.
Critical Compatibility Checks
Warning: Failure to verify these details will result in a part that does not fit. This is a labor-intensive job you do not want to do twice.
- Engine and Transmission: This flywheel fits 1.6L manual transmission models ONLY. It will not work on automatic models.
- Tooth Count: You must verify the ring gear has 135 teeth. Count them carefully before purchasing.
- Bolt Pattern: Confirm the flywheel has 5 mounting bolt holes for the crankshaft.
- Part Numbers: Cross-reference with known OEM part numbers like 96184353, 90236309, and 25198268. This part was also used in other GM vehicles like the Chevrolet Aveo and Pontiac G3/Wave, which can expand your search options.
Physical Inspection Checklist
When you have the used flywheel in hand, perform this detailed inspection:
- Check the Friction Surface: Look for signs of heavy wear. Run your fingernail across the surface; it should be smooth. Deep grooves or a wavy feel indicate a worn-out part.
- Inspect for Heat Damage: Look for blue, purple, or dark brown discoloration on the friction surface. These are 'hot spots' caused by excessive clutch slippage. Also, look for a network of tiny, web-like cracks, known as 'heat checking'. A flywheel with significant heat checking or deep hot spots should be rejected.
- Examine the Ring Gear: Carefully inspect the teeth all the way around the flywheel. Look for any that are chipped, broken, or excessively worn down. Damaged teeth can cause starter engagement problems or loud grinding noises.
- Check for Cracks: Inspect the entire flywheel, especially around the mounting bolt holes, for any visible cracks. A cracked flywheel is unsafe and must be discarded.
- Verify Flatness: Lay the flywheel on a known flat surface. It should sit perfectly flat with no wobble. A warped flywheel will cause severe clutch chatter.
Known Issues, Recalls, and TSBs
Searches for recalls and Technical Service Bulletins (TSBs) specific to the flywheel on the 1998-2002 Daewoo Lanos did not yield any results. Failures of this part are typically due to normal wear and tear over time or as a consequence of a failing clutch.
Several recalls were issued for the Daewoo Lanos for other issues, including a camshaft position sensor that could melt, wiring harness issues that could cause stalling, and problems with the passenger airbag cover. However, none of these directly pertain to the flywheel.
Cost of Replacement: New vs. Used
Replacing a flywheel is a labor-intensive job, as the transmission must be removed. Labor costs will make up a significant portion of the total price.
| Part/Service | Estimated Cost | Notes |
|---|---|---|
| New OEM (GM/Daewoo) | $250 - $400+ | May be difficult to source as new old stock. |
| New Aftermarket | $75 - $160 | Brands like LuK, Sachs, and Autopart Premium are common. Quality can vary. |
| Used OEM | $50 - $125 | A cost-effective option if properly inspected. Prices vary by seller and condition. |
| Shop Labor Cost | $800 - $1,200 | Labor typically takes 5-8 hours. This is a general estimate and can vary significantly by location and shop. |
Pro Tip: Since the transmission must be removed to replace the flywheel, it is highly recommended to replace the clutch disc, pressure plate, and release bearing at the same time. This is often sold as a 'clutch kit'. Replacing these parts together saves you from paying for the same labor twice in the near future.
Frequently Asked Questions (FAQ)
Can I resurface my old Daewoo Lanos flywheel?
Yes, in many cases, a solid flywheel like the one in the Lanos can be resurfaced by a machine shop. This involves removing a thin layer of metal to create a new, flat friction surface. However, it should not be done if the flywheel has deep grooves, significant heat checking, or cracks. Resurfacing is only an option if the wear is minor.
What is the difference between a solid and a dual-mass flywheel?
The Daewoo Lanos uses a simple, one-piece solid flywheel. Some modern cars use a dual-mass flywheel (DMF), which has two sections connected by springs to dampen engine vibrations. While DMFs provide a smoother feel, they are more complex, heavier, and more expensive to replace. The solid flywheel in the Lanos is durable and reliable.
🎬 See how to properly inspect and test a dual-mass flywheelIs this flywheel the same as in a Chevy Aveo?
Yes, the flywheel for the 1999-2002 Daewoo Lanos 1.6L manual is shared with several other GM vehicles, including the 2004-2011 Chevrolet Aveo, Pontiac G3, and Pontiac Wave with the 1.6L engine. This can make it easier to find a compatible used part.
How difficult is it to replace the flywheel myself?
This is a very difficult job for a DIY mechanic, rated 5 out of 5. It requires removing the transmission from the vehicle, which involves disconnecting driveshafts, linkages, wiring, and mounts. You will need a transmission jack, a comprehensive set of tools, and a safe way to lift and support the vehicle. Due to the complexity and safety risks, this job is best left to experienced technicians.
Helpful Videos
Technical Specifications
OEM Part Numbers: 90236309 96184353 25198268
Solid (single-mass) type, 135-tooth ring gear, 5-bolt crankshaft mounting pattern, for 1.6L manual transmission models.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
