2012-2015 Range Rover Evoque Fender Vent: Fitment, Replacement, and Style Guide
This guide covers the unique fender vents on pre-facelift Evoque models, focusing on how to spot damage, ensure correct fitment, and perform a simple replacement.
- Compatibility is critical: These vents only fit 2012-2015 pre-facelift Range Rover Evoque models.
- When buying used, the condition of the mounting clips on the back is more important than minor cosmetic scuffs.
- Replacement is an easy, 10-minute DIY job that only requires a plastic trim tool or just your hands.
- Used OEM parts are recommended over cheap aftermarket alternatives for a guaranteed factory fit and finish.
Symptoms of a Failing Fender Vent
Since the fender vent is a cosmetic trim piece, all failure symptoms are visual or audible. There are no associated fault codes or effects on vehicle performance.
- Physical Damage: Cracks, deep scuffs, or broken pieces are common signs of failure, usually resulting from minor impacts in parking lots or from road debris.
- Loose Fit or Rattling: The vents are secured by several plastic or metal spring clips. Over time, these clips can become brittle and break, causing the vent to fit loosely in the fender. This can lead to an annoying rattling or buzzing sound, especially at higher speeds.
- Faded or Peeling Finish: Constant exposure to UV rays from the sun and harsh car wash chemicals can cause the vent's finish to fade, peel, or bubble. This is particularly noticeable on the gloss black versions, which can turn dull and grey over time.
- Missing Vent: In some cases, a vent with multiple broken clips may fall off the vehicle while driving. Theft can also be an issue in some areas, as the vents can be removed without tools.
Warning: The fender vents for 2012-2015 pre-facelift Range Rover Evoque models are NOT the same as those on the 2016 and newer facelift models. The shape and mounting points are different. Always verify the part is for the correct year range before purchasing.
Buying a Used Fender Vent
A used OEM fender vent is often an excellent choice, providing the same fit and quality as a new part for a fraction of the price. However, careful inspection is key to getting a good part.
What to Check Before You Buy
- Inspect All Mounting Clips: This is the most critical inspection point. Turn the vent over and carefully check every single mounting tab and clip location. Even one broken clip can result in a poor fit and rattling. Compare the used part to photos of a new one to ensure all tabs are present and intact.
- Examine the Finish: Look for deep scratches, peeling clear coat, or significant fading. Hold the vent under good light to check for imperfections. Minor scuffs may be acceptable and can sometimes be polished out, but peeling or cracked finishes cannot be easily repaired.
- Check for Cracks: Flex the part gently to reveal any hairline cracks in the plastic, especially around the clip areas and thin edges.
- Verify the Part Number and Side: The right (passenger side) and left (driver side) vents are different parts. The right side base part number is typically BJ32-16C628, and the left side is BJ32-16C629. Ensure you are buying the correct side for your needs.
Pro Tip: When buying online, ask the seller for clear, high-resolution photos of the back of the vent to verify the condition of the mounting clips. Do not purchase if the seller cannot provide these photos.
Known Issues, TSBs, and Recalls
There are no official recalls or Technical Service Bulletins (TSBs) from Land Rover related to the fender vents on the 2012-2015 Evoque. The most common owner-reported issues are clips breaking, leading to loose fitment, and the potential for theft due to the ease of removal.
Replacement Guide
Replacing a fender vent on a 2012-2015 Evoque is a very simple DIY task that requires minimal tools.
- Installation Difficulty: 1 out of 5
- Estimated Time: 10-15 minutes per side
- Tools Required: Plastic trim removal tool, masking tape (optional)
Step-by-Step Replacement

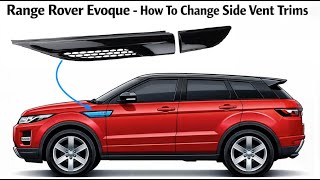

🎬 Watch: Step-by-step video on removing the side vent trims- Open the Front Door: Open the door on the side you are working on to get better access to the rear edge of the fender vent.
- Protect the Paint: You may want to apply a few strips of masking tape to the painted fender around the vent to prevent accidental scratches.
- Pry and Pull: The vent on the fender is held in only by clips. You can often get a good grip on the rear edge (near the door opening) and give it a firm, steady pull outward. Alternatively, carefully insert a plastic trim removal tool to gently pry one edge loose. Once it starts to pop out, work your way around the vent to release the other clips.
- Remove the Door Portion (If Applicable): Some vent styles are two pieces, with a smaller section on the door itself. This piece is also held by clips and can be removed by prying gently with a plastic tool.
- Clean the Area: Before installing the new vent, wipe down the recessed area on the fender to remove any dirt or grime.
- Install the New Vent: Align the clips on the new vent with the corresponding holes in the fender. Press firmly and evenly around the perimeter of the vent until you hear and feel it click securely into place.
Cost Comparison
Prices for a single fender vent can vary based on finish and supplier.
| Part Type | Estimated Price (per side) |
|---|---|
| New OEM | $100 - $160 |
| New Aftermarket | $40 - $80 |
| Used OEM | $50 - $90 |
| Shop Labor | $25 - $50 |
Frequently Asked Questions (FAQ)
Will a fender vent from a 2016 Evoque fit my 2014 model?
No. The 2016 model year marked a facelift for the Evoque, which included redesigned fender vents. The shape, size, and mounting clips are different and are not interchangeable with the 2012-2015 pre-facelift models.
Are the left and right side vents the same part?
No, they are not. They are mirror images of each other and have unique part numbers. The right-hand (passenger) side is typically BJ32-16C628-XX, and the left-hand (driver) side is BJ32-16C629-XX.
Do I need any special tools to replace the vent?
No special tools are required. A simple plastic trim removal tool is recommended to avoid scratching the paint, but many people can remove the old vent by hand. The new part simply snaps into place.
My vent was stolen. Is this a common problem?
While not rampant, theft of these vents does occur because they can be removed quickly without tools. If you live in an area where exterior trim theft is common, you might consider adding a small dab of automotive adhesive to the back of one of the non-clip mounting posts as a deterrent, though this will make future removal more difficult.
Helpful Videos
Technical Specifications
OEM Part Numbers: BJ32-16C628-ADW BJ32-16C628-AB LR074253 BJ32-16C629-ADW BJ32-16C629-AB LR027960
Material: ABS Plastic. Attachment Method: Clips. Finishes: Atlas Silver, Narvik Black, and others.
