2019-2025 Audi A6 & S6 Fender Guide: Aluminum Damage, Costs, and S-Line Differences

Symptoms of a Damaged Fender

Unlike mechanical parts, a fender's failure is almost always visual and caused by external forces. There are no diagnostic codes or electronic warnings associated with a failing fender itself, though related damage could trigger sensor warnings.

• Visible Damage: This is the most obvious symptom. Dents, dings, creases, or large-scale crumpling from a collision are clear signs of failure.
• Paint Damage: Scratches, chips, or peeling paint are common. If left untreated on a steel fender, this would lead to rust. While aluminum does not rust in the same way, it can still corrode, appearing as a white, powdery substance.
• Poor Panel Gaps: A bent or improperly installed fender will have uneven gaps with the hood, front bumper, or door. This can be a sign of underlying structural damage.
• Tire Rubbing: If the fender is pushed inward, it may rub against the tire, especially during turns. This is a safety concern that needs immediate attention.
• Broken Mounting Points: The tabs and holes used to bolt the fender to the car's frame can crack or break, causing the fender to become loose.

Known Issues, Recalls, and TSBs

While the fender itself is a simple body panel, its replacement can be linked to other vehicle systems. No recalls or Technical Service Bulletins (TSBs) directly address the fender panel for the 2019-2025 Audi A6 and S6. However, related issues are important to be aware of during repair.

• Recalls: Several recalls exist for this generation of A6/S6, including for the passenger air bag, fuel level sender, and a potential short circuit in the starter generator on some 2019-2020 models. A body repair could involve systems related to these recalls, so it's wise to check if your vehicle has any open campaigns by entering your VIN on the NHTSA website.
• TSBs: Technical Service Bulletins have been issued for issues like rumbling noises from the front end (TSB #A4022322059474_3) and flickering lines in the virtual cockpit (TSB #90 24 72 2072065/2), which could be relevant if the front end of the vehicle is being disassembled for fender replacement.
• Sensor Recalibration: The front bumper and surrounding areas contain numerous sensors for driver-assist systems like adaptive cruise control and parking assist. Removing the front bumper to replace a fender may require recalibration of these sensors, which can add significant cost to the repair.

Buying a Used Fender: A Detailed Checklist

Purchasing a used OEM fender is often a smart choice, as it guarantees the fitment and material quality of a factory part at a lower cost than new. Aftermarket parts, while cheaper, may be made of steel instead of aluminum and can have fitment issues. Here’s what to check before you buy.

1. Verify Trim Level: S-Line vs. Base Model

The most critical compatibility check is for the trim package. The S-Line package, which is standard on the S6 and optional on the A6, features different body styling than the base model. While the core shape of the fender is the same, the way it interfaces with the S-Line specific side skirts and front bumper may differ. Always confirm the donor vehicle's trim level matches your own. S-Line models often have a small badge on the fender itself.

2. Inspect for Hidden Damage

• Check All Mounting Points: Carefully examine all the bolt holes and mounting tabs. These are often the first things to break in a minor impact and are difficult to repair correctly.
• Look for Cracks and Stress Marks: Aluminum can crack under stress. Flex the fender slightly and look for any hairline cracks, especially around curves and edges.
• Feel for Previous Repairs: Run your hand along the entire surface, both inside and out. Feel for any waviness, rough patches (sanding marks), or the thickness of body filler (Bondo). A magnet will not stick to the aluminum fender, but it can help you find areas of steel-based body filler if a previous repair was done improperly.

3. Confirm Sensor and Accessory Holes

While most sensors are located in the bumper cover, some fender variations may exist for different equipment packages. The initial data mentioned verifying sensor holes (SLP), though search results primarily place sensors for parking and driver assist in the front and rear bumpers. It is still wise to visually compare the used part to your original fender, paying close attention to any small holes or mounting provisions for wiring harnesses or side markers.

4. Ask About the Donor Vehicle

Knowing the history of the donor car can be helpful. A fender from a low-mileage, front-end collision car is often a good bet, as the side panel may be undamaged. Ask for the VIN if possible to verify the exact model year and trim.

Replacement Overview

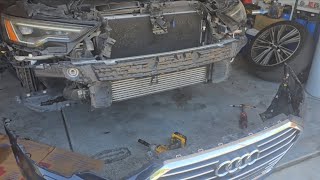

Replacing the front fender on a C8 A6 or S6 is a moderately difficult job. While it primarily involves unbolting the old panel and bolting on the new one, achieving perfect alignment with the hood, door, and bumper requires patience and precision. Accessing all the bolts requires removing the front wheel and the plastic wheel well liner. The front bumper cover may also need to be loosened or partially removed 🎬 Watch this guide on how to remove the front bumper to access bolts securing the front of the fender.

Cost Comparison

Prices for a fender replacement can vary significantly based on the part source, paint, and labor rates.

Frequently Asked Questions (FAQ)
