2019 Freightliner Cascadia Engine Harness: Chafing, Faults, and Replacement Guide

Symptoms of a Failing Engine Wire Harness

A bad engine harness on a 2019 Cascadia can cause a variety of symptoms, often appearing intermittently. Because the harness connects to nearly every engine system, problems can be difficult to diagnose and may mimic the failure of other individual components.

• Sudden Engine Shutdown: The most serious symptom is the engine shutting off without warning, sometimes at highway speeds. This is often caused by a short circuit in the harness that cuts power to the engine's computer.
• Check Engine and Warning Lights: A cascade of warning lights is common, including the check engine light (CEL), red stop engine light, and blinking DEF light.

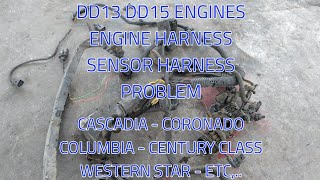

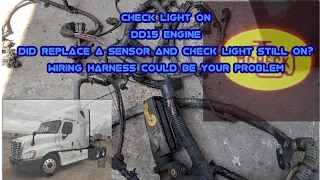

🎬 Watch: Diagnosing a check engine light caused by the harness
• No-Start or Hard Starting: The engine may crank but fail to start, or start only after repeated attempts. This can happen if the harness isn't providing a clear signal from the crankshaft or camshaft position sensors.
• Erratic Engine Behavior: You may experience rough or unstable idling, loss of power, or incorrect sensor readings that change when the harness is physically moved or wiggled.
• Communication Fault Codes: Diagnostic scans may show fault codes indicating a loss of communication with key modules like the Motor Control Module (MCM), Aftertreatment Control Module (ACM), or Transmission Control Module (TCM). Common codes include MCM 625/9, CPC 625/14, and MCM 1231/9.
• Blown Fuses: A short within the harness can cause specific fuses in the Power Distribution Module to blow repeatedly.

Known Issues: Harness Chafing (TSB 54-330)

A well-documented problem on New Cascadia models with Detroit engines is harness chafing near the air compressor. Constant engine vibration can cause the harness to rub against its own metal support bracket (part number A06-95037-000). Over time, this friction wears through the protective conduit and wire insulation, leading to short circuits.

This issue is so prevalent that Freightliner issued Service Bulletin 54-330, which provides a procedure for modifying the bracket to improve clearance. The National Highway Traffic Safety Administration (NHTSA) also opened a Preliminary Evaluation (PE21-004) in 2021 to investigate the extent and safety implications of this problem, which could lead to unexpected engine shutdown and loss of motive power.

Buying a Used Engine Wire Harness: What to Check

A used OEM harness is often a smart, cost-effective choice over a prohibitively expensive new one, but careful inspection is critical. A faulty used harness will just create more diagnostic headaches. Here’s what to look for:

1. Verify the Part Number: This is the most important step. Several different harnesses were used on these trucks. Find the part number tag on your original harness and match it exactly. Common part numbers for the 2019 Cascadia DD15 engine harness include 622004902 and A 472 150 30 20. Do not assume a harness will work just because it came from the same year and model truck.
2. Inspect All Connectors: Carefully check every single connector. Look for broken locking tabs, cracked plastic housings, and bent or corroded pins. A single damaged pin can make the entire harness useless.
3. Check for Chafing and Abrasion: Visually inspect the entire length of the harness for signs of rubbing. Pay special attention to areas that would have been near mounting brackets or hot engine components. Look for worn-through plastic conduit.
4. Feel for Brittleness and Flexibility: Gently flex the harness in several places. It should be pliable. If the outer sheathing is hard, brittle, or cracks when you bend it, it has been damaged by excessive heat and will not last.
5. Look for Previous Repairs: Be wary of harnesses with signs of amateur repairs. Excessive electrical tape, poorly crimped butt connectors, or mismatched wires are all red flags that someone tried to fix a problem without replacing the harness. A professional repair with heat-shrink tubing may be acceptable, but a messy repair is not.
6. Avoid Oil-Soaked Harnesses: While some mechanics claim oil doesn't harm the wires themselves, a harness saturated in oil can hide damage and make installation messy. More importantly, it may indicate the donor engine had severe leaks, and the harness could have been subjected to extreme heat or other related damage.

Cost Comparison for a 2019 Cascadia Engine Harness

Harness replacement costs can vary significantly based on the part source and labor rates.

Replacement Overview and Difficulty

Replacing the engine harness is a time-consuming job but does not require specialized software or programming. The key is patience and organization.

• Difficulty: 4 out of 5
• Estimated Time: 6-10 hours

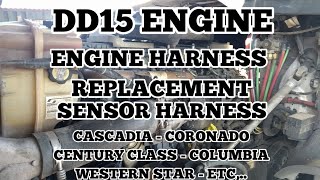

• Process: The general procedure involves disconnecting the batteries, then methodically unplugging every sensor and component connected to the harness on the left, right, and front of the engine. The harness is secured by multiple clips and a few bolts, including two bolts at the MCM. Once all connections are free, the old harness can be removed and the new one routed. 🎬 See this step-by-step engine harness replacement walkthrough It is highly recommended to label each connector as you remove it to ensure everything is reconnected correctly.
