2016-2023 Mazda CX-9 ECM Upper Bracket: A Simple Part That Protects a Critical Computer
Learn why this simple bracket is key to preventing rattles and electrical problems, and what to check when buying a used one for your CX-9.
- The correct OEM part number for the upper bracket is PYFL-18-945; other numbers like TK4950C51 and TN3951694A are for unrelated parts.
- Failure is rare, but symptoms include rattling from the engine bay and, in severe cases, intermittent electrical faults from the ECM shaking loose.
- For 2018 models, check for an open wiring harness recall (NHTSA 18V030) as its symptoms can mimic problems caused by a loose ECM.
- A used OEM bracket is a smart buy if you inspect it for cracks, bends, and heavy corrosion before purchasing.
Symptoms of a Failing ECM Upper Bracket
Because the ECM bracket is a simple, durable piece of metal, outright failure is uncommon. However, if it does fail due to collision damage, corrosion, or stripped fasteners, the symptoms are related to the ECM becoming loose. You will not get a check engine light for the bracket itself.
- Rattling or Clunking Noises: The most common symptom will be a distinct rattling or metallic vibration sound coming from the engine bay, specifically near the battery and main fuse box where the ECM is located. This noise may be more noticeable at idle or when driving over rough roads.
- Intermittent Electrical Problems: In severe cases where the bracket is completely broken and the ECM is free to move, the constant shaking can strain the electrical connectors. This can lead to a host of confusing, intermittent engine issues, such as stalling, hesitation, a no-start condition, or a dashboard lit up with various warning lights.
- Communication Error Codes: If the ECM's connection is compromised by excessive movement, it may trigger communication-related Diagnostic Trouble Codes (DTCs), such as U0100 (Lost Communication With ECM/PCM 🎬 Watch: How to diagnose and fix a U0100 code). While this code has many potential causes, a physically loose ECM should be considered during diagnosis.
Important Note for 2018 Models: A wiring harness recall (NHTSA ID: 18V030, Mazda recall: 3419E) was issued for some 2018 CX-9s due to weak connector pins that could cause symptoms identical to a loose or failing ECM, including a no-start condition and communication errors. Before replacing any parts, check if your vehicle is affected by this recall.
Buying a Used 2016-2023 CX-9 ECM Upper Bracket
Since this bracket is a simple structural component, a used OEM part from a reputable recycler is an excellent, cost-effective choice. Unlike complex electronics, a bracket's condition is easy to assess visually. A used OEM bracket will provide the exact same fit and durability as a new one, as long as it's inspected properly.
What to Check Before You Buy:
- Physical Integrity: Carefully inspect the entire bracket for cracks, especially around the bolt holes and bends. Stress fractures can form from accidents.
- Straightness: Lay the bracket on a flat surface. It should sit flush with no significant warping or bending. A bent bracket will not align properly with the mounting points on the chassis and ECM.
- Mounting Holes: Check that all bolt holes are round and not stripped or elongated. Damaged holes will prevent you from securely tightening the fasteners.
- Corrosion: Look for any signs of heavy rust or corrosion. While surface rust is usually cosmetic, deep or flaking rust can weaken the metal and should be a red flag.
Pro Tip: When you receive your used bracket, it's a good idea to clean it and apply a coat of rust-inhibiting paint before installation. This adds an extra layer of protection and is a simple step while the part is off the vehicle.
Replacement Guide
Replacing the ECM upper bracket is a straightforward task suitable for a DIY mechanic with basic tools. The ECM is located in the engine bay on the driver's side, near the battery.

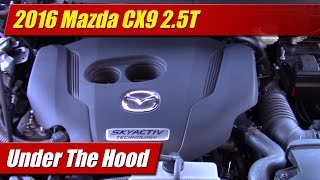

🎬 Watch: A quick tour of the CX-9 engine bay- Disconnect the Battery: Always disconnect the negative battery terminal before working on any part of the vehicle's electrical system.
- Unplug the ECM: Carefully release the locking tabs on the ECM's electrical connectors and pull them straight out. Do not force them. 🎬 See: How to safely disconnect Mazda ECU wiring connectors
- Remove the ECM and Bracket Assembly: Locate the bolts holding the bracket to the vehicle's chassis and remove them. The entire assembly should now be free.
- Swap the Bracket: Place the assembly on a workbench. Unbolt the ECM from the old bracket and secure it to the replacement bracket.
- Reinstall: Mount the new assembly back onto the chassis, plug in the ECM connectors until they click, and reconnect the battery terminal.
Cost of Replacement
The cost to replace the ECM upper bracket is minimal, especially if you do the work yourself. The main cost is the part itself, with labor being a small additional expense if you use a professional mechanic.
| Part or Service | Estimated Cost |
|---|---|
| New OEM Bracket | $35 - $50 |
| New Aftermarket Bracket | Not Generally Available |
| Used OEM Bracket | $15 - $30 |
| Shop Labor | $50 - $150 |
Technical Specifications & Part Numbers
It is critical to use the correct part for a secure fit. There is a separate lower bracket used on the vehicle, so verify this upper bracket is the one you need.
- Confirmed OEM Part Number: PYFL-18-945
- Common Names: Engine Control Module Bracket, Control Unit Bracket, Upper Bracket
Part Number Warning: The part numbers TK4950C51 and TN3951694A may be associated with this vehicle but are incorrect for this part. TK4950C51 is a rear valance panel, and TN3951694A is a fog light bracket. Always verify you are purchasing PYFL-18-945.
Frequently Asked Questions (FAQ)
Can a bad ECM bracket cause a check engine light?
Not directly. The bracket itself has no sensors. However, if it breaks and allows the ECM to shake violently, it could damage the ECM's internal circuits or cause a poor connection at the wiring harness, which could then trigger a check engine light and various fault codes (especially U-codes).
Do I need to reprogram my car after replacing the ECM bracket?
No. The bracket is purely a mounting device. As long as you are reinstalling the original ECM, no programming or calibration is needed. You only need to program the vehicle if you are replacing the ECM itself.
Is there also a lower ECM bracket on the CX-9?
Yes, the ECM is typically secured by more than one bracket. This article focuses on the upper bracket (PYFL-18-945). You should always inspect your vehicle to confirm which bracket needs replacement before ordering parts.
What tools are needed to replace the ECM bracket?
You will need a basic metric socket set, a ratchet, and possibly a few extensions. No special tools are required for this job.
Helpful Videos
Technical Specifications
OEM Part Numbers: PYFL-18-945
Material: Stamped Steel. Position: Engine Bay, Upper.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
