2016 VW Passat 1.8T ECM: A Guide to Programming, Immobilizer, and Replacement

Symptoms of a Failing 2016 Passat ECM

A faulty Engine Control Module can cause a variety of symptoms, which may appear intermittently at first. Because the ECM controls so many functions, these signs can sometimes be mistaken for other issues.

• No-Start or Intermittent Starting: This is a critical symptom. The engine may crank but will not fire up because the ECM is not telling the fuel injectors and spark plugs to work. In some cases, you may have to try turning the key multiple times before the engine finally starts.
• Engine Stalling or Rough Idle: The engine may stall unexpectedly while driving or when stopped at an idle. This happens because the ECM is failing to make the constant small adjustments needed to keep the engine running smoothly.
• Check Engine Light: A constant or flashing Check Engine Light on the dashboard is a common indicator. While many issues can trigger this light, it's a sure sign that a fault has been registered.
• Loss of Communication: A strong sign of ECM failure is when a mechanic's diagnostic scan tool cannot communicate with the engine computer at all. You may also see error codes from other modules (like ABS or transmission) complaining about a loss of signal from the ECM (often stored as U-codes).
• Poor Engine Performance and Fuel Economy: You might notice a sudden drop in gas mileage, sluggish acceleration, or engine misfires. This can happen if the ECM is sending incorrect commands for the fuel-to-air ratio or ignition timing.
• Associated OBD-II Codes: While many codes can point to a bad ECM, codes indicating random/multiple cylinder misfires (P0300), system lean/rich (P0171, P0172), or internal memory errors (P0601) are common. However, the most definitive sign is often a complete lack of communication with the scan tool.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

For the 2016 Volkswagen Passat, there are a few official actions and known issues related to the engine management system that owners should be aware of.

• NHTSA Recall 23R1: This safety recall involves an ECM software update. The issue is that the camshaft lobe that drives the brake vacuum pump could shear off, leading to a loss of brake assist. The fix is a simple software update performed by a Volkswagen dealer.
• NHTSA Recall 17V569000: While not a direct ECM failure, this recall is for the Fuel Pump Control Module. A faulty module could interrupt power to the fuel pump, causing the engine to stall while driving or fail to start. The symptoms can be very similar to an ECM failure.
• NHTSA Recall 15F7: This recall addresses a problem where the fuel rail could detach from the cylinder head, causing a fuel leak. The corrective action is to replace the cylinder head. This is a mechanical issue but is monitored by the ECM, which may put the car into a "limp mode."

You can check if your specific vehicle is affected by these recalls by entering your VIN on the NHTSA website.

Buying a Used Engine Control Module (ECM) for Your 2016 Passat

Buying a used OEM ECM is a great way to save money, but for this specific part, compatibility and post-installation steps are everything. You cannot simply install a used ECM and expect it to work.

1. Verify Compatibility

Before purchasing, you must ensure the replacement ECM is a perfect match for your vehicle. Check the following:

• Match the OEM Part Number: This is the most important step. The part number on the replacement module must exactly match the one on your original ECM. Known part numbers for this vehicle include 06K906071AG and 06K907425C.
• Engine & Emissions: This ECM fits the 1.8L CPRA engine with PZEV (Partial Zero-Emission Vehicle) emissions. Ensure your vehicle has this specific configuration.
• Production Date Cutoff: If you are sourcing a part for an early-production 2017 model, be aware that these ECMs only fit vehicles manufactured up to July 4, 2016.

2. Programming, Immobilizer, and Component Protection

Your Passat is equipped with an anti-theft system called an immobilizer. The ECM, instrument cluster, and the transponder chip in your key are all electronically 'married' together. When you install a different ECM, the system detects a mismatch, activates the immobilizer, and prevents the engine from starting as a theft-prevention measure.

To make a replacement ECM work, it must be adapted to your vehicle's specific VIN and immobilizer system. This involves a specialized programming procedure.

Who Can Program a Replacement VW ECM?

• Volkswagen Dealerships: A dealer has the factory tools (ODIS) to program a new ECM to your car. However, many dealerships are unable or unwilling to program a *used* ECM, as their tools may be locked out from adapting used components.

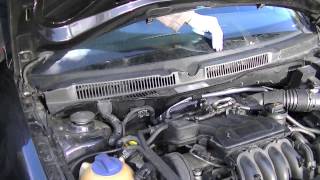

• Independent Specialists: Many independent shops specializing in European vehicles have advanced diagnostic tools (like Autel MaxiIM, TOPDON Phoenix Smart, or VCDS) that can perform the necessary functions. This may involve 'virginizing' the used ECM (wiping its old VIN and immobilizer data) or 'cloning' the data directly from your old ECM 🎬 Watch: How to program and swap a used VW ECM to the replacement one.
• Mail-In Services: Companies exist that allow you to mail in your original ECM and the replacement unit. They will clone the data for you, making the replacement module plug-and-play when you receive it back. This is a good option if you can't find a local specialist.

3. Transmission Coding

The ECM is also programmed for the vehicle's transmission type. If you install an ECM from an automatic transmission vehicle into a Passat with a manual transmission, it must be recoded. If not, the ECM will look for transmission signals that don't exist, which will trigger a Check Engine Light and store transmission-related error codes.

Cost Comparison for a 2016 Passat ECM

Prices can vary significantly based on the source of the part and the labor required for programming.
