2005 Toyota Avalon ECM: A Guide to Part Numbers, Programming, and Immobilizer Resets

Symptoms of a Failing 2005 Avalon ECM

A failing ECM can cause a wide range of problems, from subtle issues to a complete no-start situation. Because the ECM controls so many functions, symptoms can often be mistaken for other problems. A key indicator of potential ECM failure is the appearance of multiple, seemingly unrelated error codes at the same time.

• Check Engine Light: The most common symptom is an illuminated Check Engine Light (CEL). While this can mean many things, it's the first sign your car's computer has detected a problem.
• Engine Performance Issues: You might experience a sudden loss of power, engine stuttering, or misfires. This can be caused by the ECM failing to correctly manage the air-fuel mixture or ignition timing.
• Car Won't Start: A completely dead ECM can prevent the engine from starting at all. The engine may crank but won't fire because the ECM isn't sending signals to the fuel injectors or ignition coils.
• Poor Fuel Economy: If the ECM is not managing the engine efficiently, you may see a sudden and significant drop in your gas mileage.
• Transmission Shifting Problems: The ECM works closely with the transmission control module. A faulty ECM can lead to rough, erratic, or delayed shifting in the automatic transmission.

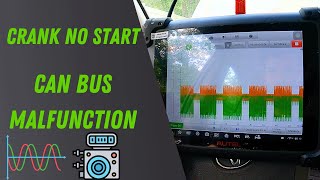

• No Communication with Scan Tool: 🎬 Watch: Diagnosing a crank-no-start and ECM communication issue If a diagnostic scan tool cannot connect to the ECM, it's a strong sign that the module itself has failed.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While the 2005 Toyota Avalon has been subject to several recalls, none have been issued specifically for a faulty Engine Control Module. However, it's important to be aware of related issues:

• Accelerator Pedal Recall (NHTSA 09V388000): This major recall addressed accelerator pedals that could get stuck. Part of the remedy for some vehicles included a software update to the ECM to install a "brake-to-idle" override system. This doesn't indicate the ECM was faulty, but that its software was modified.
• Steering Yoke Recall (NHTSA 05V206000): Addressed a potential weld failure in the steering column. This is a mechanical issue unrelated to the ECM.
• VVT-i Oil Hose (Limited Service Campaign): A well-known issue for this Avalon generation is a rubber VVT-i oil supply hose that can degrade and burst, causing a catastrophic loss of engine oil and potential engine seizure. While not an ECM issue, anyone working on or buying a 2005 Avalon should immediately check if this hose has been replaced with the updated all-metal line.
🎬 See this step-by-step VVT-i oil line replacement guide

No specific TSBs point to a widespread, inherent defect in the 2005 Avalon's ECM. Most issues are related to standard electronic component end-of-life failures.

Buying a Used Engine Control Module: What You MUST Know

Purchasing a used OEM ECM is a great way to save money, but it's not as simple as buying a mechanical part. Because it's a computer tied to your specific vehicle, there are critical steps to follow.

1. Match the Part Number: Find the part number on your original ECM. It will be on a sticker, typically starting with 89661-XXXXX. You must buy a replacement with the exact same number. The provided list of OEM part numbers are often interchangeable, but always confirm with the seller.
2. Understand Programming Requirements: A used ECM from a junkyard is just a metal box. It contains the VIN and security information from its donor car. It will not work in your car until it is reprogrammed.
3. Choose Your Buying Option Wisely:
   • Used (As-Is from a junkyard): This is the cheapest but riskiest option. You get the part only, with no programming. You will need to take the vehicle and the part to a dealer or a specialized locksmith with advanced tools to have it programmed.
   • Remanufactured & Pre-Programmed: This is the recommended option for most DIYers and shops. Companies like Flagship One or Flashmasters sell remanufactured ECMs where you provide your car's VIN upon purchase. They flash the module with your VIN and the latest Toyota software updates, so it's ready for the final immobilizer sync.
   • Cloning Service: Some services require you to mail in your original ECM. They extract the data (VIN, key codes, etc.) and clone it to a replacement unit. This often creates a true "plug-and-play" module that requires no further programming.

Programming and Immobilizer Syncing

This is the most critical part of the replacement process. A new ECM will not work until it is programmed to your vehicle's VIN and synced with your existing keys. This is because of the built-in anti-theft immobilizer system.

Step 1: VIN Programming
The ECM must have your car's 17-digit Vehicle Identification Number (VIN) written to it. As mentioned, this is best done by the seller before they ship the part to you. Without the correct VIN, the ECM cannot communicate properly with the other computer modules in the car.

Step 2: Immobilizer Relearn / Key Syncing
Once the VIN-programmed ECM is installed, it needs to be introduced to your car's transponder keys. The car will not start until this "handshake" is complete.

• DIY Relearn: Some sellers of pre-programmed modules may provide instructions for a DIY relearn procedure. This can sometimes involve a specific sequence of turning the key or using a simple tool they provide. One common method for older Toyotas involves leaving the key in the 'ON' position for about 30 minutes to sync the security system.
• Locksmith or Dealer: If a DIY procedure is not available or doesn't work, a mobile automotive locksmith or the Toyota dealership will be required. They have specialized scan tools (like Toyota's Techstream software) to force the ECM and keys to sync. This is often the only option if you buy a blank used ECM.
