2018 Ram 2500 & 3500 6.7L Cummins ECM: A Guide to Failure, Programming, and Replacement
This in-depth guide covers common symptoms, mandatory programming, and costs associated with the Engine Control Module (ECM) for 2018 Ram 2500 and 3500 trucks with the 6.7L Cummins engine.
- This ECM is NOT plug-and-play. Any replacement module (new or used) MUST be programmed to your truck's VIN to function.
- The most common OEM part number is 68336278AA (Mopar) and 4384417 (Cummins). Always match the part number.
- Failure symptoms include no-start, random stalling, poor performance, and a check engine light with various codes.
- Before replacing the ECM for a P2509 code, always test both batteries individually and check all cable connections, as this is the most common cause.
- An emissions recall (67A) requires a dealer software update for all 2013-2018 models, which reprograms the existing ECM.
Symptoms of a Failing ECM
An ECM failure on the 2018 Ram 2500 and 3500 can manifest in several ways, ranging from a simple check engine light to a truck that won't start at all. Because the ECM controls so many systems, symptoms can sometimes be mistaken for other component failures.
🎬 Watch: Learn how to identify common bad ECM symptoms- Check Engine Light: This is the most common symptom. A malfunctioning ECM can set false codes for sensors that are actually working correctly, or it can set specific internal module failure codes like P0600-P0605.
- No-Start or Random Stalling: The engine may crank but refuse to start, or it might stall unexpectedly while driving. This happens when the ECM fails to give the correct commands for fuel and spark timing.
- Poor Performance and Fuel Economy: If the ECM cannot properly manage the engine, you may notice a significant drop in fuel efficiency, a loss of acceleration, or rough running.
- Transmission Shifting Problems: The ECM communicates with the Transmission Control Module (TCM) to ensure smooth shifting. Faulty data from the ECM can cause hard shifts, delayed shifts, or the transmission going into "limp mode".
- No Communication with Scan Tool: If an OBD-II scanner cannot communicate with the vehicle, it often points to a complete failure of the ECM.
- P2509 Code: The code P2509 (PCM/ECM Power Input Signal Intermittent) is very common on these trucks and is almost always caused by weak batteries or poor cable connections, not a faulty ECM itself. Before replacing the ECM for this code, always load-test both batteries individually and clean all terminals and grounds.
Known Issues, Recalls, and TSBs
While there are no widespread recalls specifically for ECM failure on the 2018 models, there are important software updates and related issues to be aware of.
- Emissions Recall 67A: This recall involves a mandatory software update for 2013-2018 Ram 2500 and 3500 trucks with the 6.7L Cummins engine. The update adjusts the Diesel Exhaust Fluid (DEF) dosing strategy to reduce NOx emissions. This is a software flash performed by a dealer and does not involve replacing any hardware.
- ECM Fuses: Before condemning the ECM, it's wise to check the related fuses. In the under-hood fuse box (TIPM), fuses F21, F22, F57, F64, F72, F77, and F78 are all related to the engine computer's function. 🎬 See this guide to locating and replacing RAM ECM fuses
Important: The ECM is located on the driver's side of the engine block. It is susceptible to failure from environmental factors like extreme temperatures and engine vibration, which can fatigue internal components and solder joints over time. Water intrusion can also cause short circuits and corrosion on the circuit board.
Buying a Used Engine Control Module (ECM)
Purchasing a used OEM ECM can be a cost-effective solution, but it requires careful attention to detail. Given the complexity and programming requirements, a used OEM module is often a more reliable choice than a new aftermarket unit.
- Verify Part Numbers: The most critical step is to match the part number exactly. The primary Mopar part number for the 2018 6.7L Cummins ECM is 68336278AA. The corresponding Cummins part number is 4384417. Using an incompatible module will result in a no-start condition or system malfunctions.
- Physical Inspection: When you receive the used module, inspect it carefully. Look for any signs of corrosion on the housing or pins, bent pins, or evidence that the case has been opened, which could indicate a failed repair attempt.
- Programming is Mandatory: A used ECM will not work by simply plugging it in. It must be professionally programmed to your truck's Vehicle Identification Number (VIN) and specific configuration (transmission type, emissions equipment, etc.). Failure to program the module will result in an anti-theft system lockout and a no-start condition.
- Source and Warranty: Purchase from a reputable seller that offers a warranty. This protects you in case the module is internally faulty, which is impossible to determine from a visual inspection alone.
Programming and Installation
This is the most critical part of replacing the ECM on a 2018 Ram 2500 or 3500. The module contains vehicle-specific security and operational data.
Warning: This is not a plug-and-play part. A new or used ECM must be programmed with your vehicle's VIN. This can be done by a Ram dealership or a qualified independent shop with a J2534 pass-thru device and access to FCA's Tech Authority or equivalent software. Some online retailers offer pre-programming services where you provide your VIN at the time of purchase.
- Dealer Programming: The most straightforward option is to have the dealership install and program the module. They have the correct tools (wiTECH) and direct access to the latest factory software.
- Independent Shop: Many independent shops that specialize in diagnostics or diesel repair can program these modules. Ask specifically if they have the capability to flash a Ram Cummins ECM before committing to the work.
- Mail-In Services: Several companies offer mail-in services where you send them your replacement ECM (and sometimes your original) to be programmed with your VIN. This can be a good option for DIYers who can handle the physical installation.
- Anti-Theft Link: The ECM is linked to the vehicle's immobilizer system. If the VIN in the ECM does not match the VIN stored in other modules like the Body Control Module (BCM), the truck will not start.
Replacement Steps Overview
- Disconnect both negative battery cables.
- The ECM is located on the driver's side of the engine block, below the air intake.
- Access may require removing the air filter box assembly.
- Carefully disconnect the large electrical connectors from the ECM. Inspect them for any corrosion or damage.
- Unbolt the ECM from its mounting bracket. There are typically three 10mm bolts holding it in place.

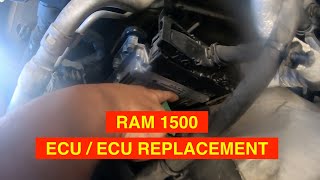

- Install the new (and programmed) ECM, reconnect the electrical connectors and battery cables, and start the vehicle to confirm proper operation. 🎬 Watch: Step-by-step RAM ECM removal and installation walkthrough
Cost Breakdown
The cost to replace the ECM on a 2018 Ram can vary significantly based on the part source and labor rates.
| Item | Estimated Cost |
|---|---|
| New OEM (Mopar) | $3,900 - $4,100 |
| Remanufactured (Programmed) | $1,400 - $1,600 |
| Used OEM | $400 - $600 |
| Repair Service (Your ECM) | $500 - $800 |
| Shop Labor (Replacement & Programming) | $200 - $600 |
Pro Tip: Many companies offer repair or remanufacturing services for your existing ECM. This can be a cost-effective option that avoids the need for VIN programming, as the original module is repaired and returned to you.
Frequently Asked Questions (FAQ)
Can I drive my truck with a bad ECM?
It is not recommended. Depending on the failure mode, you could experience sudden stalling, which is a major safety hazard. Other issues like poor performance and incorrect transmission shifting can also make the vehicle unreliable and unsafe to operate.
Do I need to replace both batteries if I get a P2509 code?
It is highly recommended. The dual-battery system works as a pair. If one battery fails, it puts a significant strain on the other, often causing it to fail shortly after. Replacing only one battery often leads to the new battery being quickly degraded by the old one, and the P2509 code will likely return.
Can a locksmith program a new ECM for my Ram?
Generally, no. While locksmiths can program keys, flashing an ECM requires specific diagnostic software and hardware (like wiTECH or a J2534 device) that most locksmiths do not possess. This job is best left to a dealership or a specialized repair shop.
Will a used ECM from another 2018 Ram 6.7L work in my truck?
Only if it is reprogrammed for your truck's specific VIN and configuration. You cannot simply take a module from one truck and plug it into another, even if they are identical models. The anti-theft system will prevent the engine from starting.
Does aftermarket tuning cause ECM failure?
While not a direct cause of hardware failure in most cases, installing aftermarket tunes will void the warranty on the ECM. If the tuning process is interrupted or a bad file is loaded, it can corrupt the software, requiring the module to be sent back to a specialist for recovery.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68336278AA 4384417
Fits 2018 Ram 2500 and 2018 Ram 3500 with 6.7L I6 Cummins Turbo Diesel engine. Compatible with 68RFE automatic, Aisin automatic, and G56 manual transmissions.
