2010 Pontiac Vibe Engine Control Module: Programming, Failure Symptoms, and Replacement
This guide covers the critical details for diagnosing, replacing, and programming the Engine Control Module (ECM) for the 2010 Pontiac Vibe with the 2.4L engine.
- The 2010 Vibe ECM requires VIN programming. Buying a pre-programmed unit online allows for DIY installation with a simple 30-minute key relearn procedure.
- This ECM is for the 2.4L engine with an automatic transmission ONLY. It is not interchangeable with the 1.8L model.
- The 2010 model is NOT part of the major 2005-2008 ECM recall, but the computer can still fail.
- Before replacing the ECM for code P0607, check for a clogged A/C drain dripping water on the O2 sensor connector, as this is a common, cheaper-to-fix issue that mimics ECM failure.
Symptoms of a Failing 2010 Vibe ECM
When the ECM begins to fail, it can cause a wide range of confusing and intermittent problems. Because the ECM controls both the engine and transmission, symptoms can appear related to either system. Look for these common warning signs:
- Check Engine Light: This is often the first sign. The light may be steady or, in severe cases, flashing.
- Engine Stalling or Misfiring: The engine may suddenly shut off while driving or idling at a stoplight. You might also experience engine stuttering or misfires.
- No-Start or Hard Starting: The engine may crank but refuse to start, or take much longer than usual to fire up.
- Poor Engine Performance: You may notice a significant loss of power, sluggish acceleration, and rough idling.
- Erratic Transmission Shifting: The automatic transmission may shift harshly, slam into gear, or seem to hunt for the right gear. This is because the ECM also functions as the transmission controller.
- Reduced Fuel Economy: An unexplained drop in gas mileage can happen if the ECM is not managing the fuel mixture correctly.
Common Diagnostic Trouble Codes (DTCs)
A failing ECM will often store trouble codes that can be read with an OBD-II scanner. While many codes can indicate an ECM problem, two are particularly common:

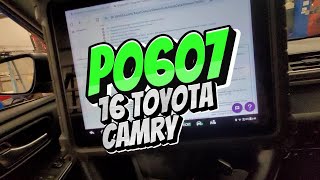

- P0607 - Control Module Performance: This code specifically indicates that the ECM has detected an internal processing error. 🎬 Watch: Diagnosing a P0607 code on a Toyota engine
- U0100 - Lost Communication With ECM/PCM: This means other modules in the car, like the ABS or instrument cluster, can no longer receive a signal from the ECM.
Known Issues & Important Distinctions
ECM Recall (Does NOT Affect 2010 Models)
A well-known GM recall (NHTSA #10V384000 / GM #10282) addressed faulty ECMs that were prone to internal circuit board cracks. This recall only applies to 2005-2008 Pontiac Vibe models with the 1.8L engine. The 2010 model year uses a different ECM and is not part of this specific recall campaign. However, the ECM can still fail due to other reasons.
Pro Tip: Check This Before Replacing Your ECM! A common issue on the 2009-2010 Vibe and Matrix that can trigger a P0607 code is a clogged air conditioner evaporator drain. When this drain clogs, water can drip directly onto the downstream oxygen sensor's electrical connector, causing a short. This short can send erratic voltage signals to the ECM, making the computer believe it has an internal fault. Before spending hundreds on a new ECM, check for water intrusion at the O2 sensor connector located on the passenger side floor, under the carpet.
Buying a Used or Remanufactured 2010 Vibe ECM
This is the most critical section for anyone needing a replacement. Because this part requires programming, you have a few options with different costs and benefits.
Compatibility Check
Warning: This ECM is highly specific. It is designed for 2010 Pontiac Vibe models equipped with the 2.4L engine, an automatic transmission, and front-wheel drive. It will not work in a vehicle with a 1.8L engine or a manual transmission. Always verify your vehicle's specifications before ordering.
When sourcing a replacement, the best practice is to physically inspect your original ECM and match the part number. The ECM is typically located behind the glove box. OEM part numbers to look for include:
- Denso: TN275400-0610
- GM: 19205198, 19205386, 19205583
- Toyota: 89661-02V02, 89661-02V63
Many other part numbers may also be compatible.
Used vs. Remanufactured
- Used OEM: A used ECM from a salvage vehicle is the cheapest hardware option. However, it will be programmed to the donor car's VIN and immobilizer system. It will require a complete reprogram by a dealer or a well-equipped independent shop to work in your vehicle.
- Remanufactured (Pre-Programmed): This is often the best balance of cost and convenience. Many online retailers sell remanufactured ECMs and will pre-program the unit to your car's VIN before shipping it to you. This makes the installation "plug and play," though a simple security relearn procedure is usually required.
Programming and Installation Guide
You cannot simply swap an ECM in this vehicle and expect it to work. The ECM is tied to the vehicle's immobilizer system, which prevents theft.
Option 1: Buy a Pre-Programmed ECM (DIY Friendly)
If you purchase a module that has been flashed with your VIN, the physical installation is straightforward.
- Disconnect the negative battery terminal.
- Access the ECM by removing the glove box assembly.
- Unplug the electrical connectors from the old ECM.
- Unbolt and remove the old ECM.
- Install the new, pre-programmed ECM and reconnect everything.
- Perform the Security Relearn Procedure.
DIY Security Relearn Procedure
After installing a pre-programmed ECM, the car still needs to learn the password from your specific key. Most sellers provide instructions for a simple, 30-minute relearn procedure that does not require any special tools. While the exact steps can vary slightly, it generally follows this pattern:
- Turn the key to the 'ON' position (do not start the engine). The security light on the dash will likely be on or flashing.
- Leave the key 'ON' for approximately 10 minutes, or until the security light turns off.
- Turn the key 'OFF' for 5-10 seconds.
- Repeat this cycle two more times for a total of three cycles and 30 minutes.
- After the third cycle, the vehicle should start and run normally. 🎬 Watch: Step-by-step GM security relearn procedure walkthrough
Option 2: Use a Blank/Used ECM
If you use an ECM that is not pre-programmed, you must have it programmed by a professional. This is not a DIY job. You will need to take the vehicle to a GM dealer or an automotive locksmith who has the proper diagnostic tools (like Toyota Techstream or an equivalent) to program the VIN and sync the immobilizer system with your keys.
Replacement Cost Comparison
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | $650 - $800+ | Purchased from a GM or Toyota dealership. Does not include programming/labor. |
| New Aftermarket | $600 - $700 | Available from some large auto parts stores, often a remanufactured unit from a major brand like Cardone. |
| Remanufactured (Pre-Programmed) | $220 - $350 | A common choice from online specialists. Includes VIN programming. |
| Used OEM | $100 - $200 | Hardware only, from a salvage yard or eBay. Requires professional programming. |
| Shop Labor (Installation & Programming) | $150 - $300 | 1-2 hours of labor. Cost is higher if programming from scratch is needed. |
Frequently Asked Questions (FAQ)
Does the 2010 Vibe ECM have to be programmed?
Yes, absolutely. The ECM must be programmed with your vehicle's VIN and synchronized with the immobilizer system. You can either buy a pre-programmed unit and do a simple key relearn yourself, or have a dealer/locksmith program a blank unit with specialized tools.
Is my 2010 Pontiac Vibe part of the big ECM recall?
No. The major recall for faulty ECMs (NHTSA #10V384000) was for the 2005-2008 Pontiac Vibe with the 1.8L engine. The 2010 model year is not affected by that specific recall.
Can I use an ECM from a 2010 Toyota Matrix?
Yes, it is possible, as they are the same underlying vehicle. However, you must ensure it is from a Matrix with the exact same powertrain: a 2.4L engine and an automatic transmission. The safest method is to match the Denso, Toyota, or GM part number on the label of your original ECM.
My car has a P0607 code. Should I replace the ECM immediately?
Not necessarily. Before replacing the ECM, check for two common, cheaper problems: a weak or failing battery, and a clogged A/C evaporator drain tube that may be dripping water onto the downstream oxygen sensor connector, causing an electrical short. Both of these issues are known to falsely trigger a P0607 code on this vehicle.
Helpful Videos
Technical Specifications
OEM Part Numbers: TN275400-0610 19205198 19205386 19205583 89661-02V02 89661-02V63 19205010 19205011 19205012 19205013 19205197 19205376 19205572 89661-02V00 89661-02V01 89661-02V50 89661-02V51 89661-02V52 89661-02V53 89661-02V60 89661-02V61 89661-02V62 89661-02V70 89661-02V71 89661-02V72
Fits 2010 Pontiac Vibe Base models with 2.4L (2AZ-FE) engine, automatic transmission, and front-wheel drive.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
