2006 Nissan Titan ECM: Programming, the IPDM Relay Recall, and Big Tow Models
This guide covers the critical details for replacing the Engine Control Module (ECM) in your 2006 Titan, including mandatory programming and identifying the correct part for the Big Tow package.
- A replacement ECM is NOT plug-and-play; it MUST be programmed to the truck's VIN and security system, or the engine will not start.
- Before replacing the ECM, check the IPDM (intelligent fuse box) for a faulty ECM relay. A recall (PC068) was issued for this common part that causes identical stalling and no-start symptoms.
- You must match the part number exactly to your truck's options, especially the 'Big Tow' package (identified by a transmission temp gauge), 4x4, and fuel type.
- Programming can be done by a Nissan dealer, some independent shops/locksmiths with advanced tools, or by using a mail-in service that pre-programs the unit.
Is It Your ECM or the IPDM Relay?
Warning: Before you replace the ECM, you must investigate the Intelligent Power Distribution Module (IPDM). Many 2004-2006 Titans were subject to Nissan's voluntary safety recall PC068 for a faulty ECM relay located *inside* the IPDM. A failing relay can cause symptoms identical to a bad ECM, such as stalling, hesitation, a rough idle, or a no-start condition. This relay can fail due to oxidation on its internal contacts. 🎬 Watch: How to replace a failing ECM relay Replacing this small, inexpensive relay often solves the problem without needing to replace the entire expensive ECM. Always check if the recall was performed on your vehicle or diagnose the IPDM first.
🎬 See this video for IPDM diagnostic tips and tricksSymptoms of a Failing 2006 Titan ECM
When the ECM itself fails, it can cause a wide range of problems that may be constant or intermittent. Diagnosing a bad ECM can be tricky because its symptoms often mimic other failed parts.
- Check Engine Light: This is often the first sign. A failing ECM can trigger codes for other sensors even if the sensors themselves are good. Codes like P0605 specifically point to an internal memory error in the computer.
- Engine Stalling or Misfiring: The engine may stall unexpectedly, especially at low speeds, or misfire while driving. This happens when the ECM fails to properly control ignition timing or fuel delivery.
- Crank-No-Start: The engine will turn over but will not fire up. This is a classic symptom of ECM failure, often because the ECM is not activating the fuel pump or ignition coils, or because of a security system conflict.
- Noticeable Drop in Performance or Fuel Economy: If the ECM cannot correctly manage the air-fuel mixture, you may experience sluggish acceleration, reduced power, and worse gas mileage.
- Shifting Problems: The ECM communicates with the Transmission Control Module (TCM). Faulty signals from the ECM can lead to harsh or erratic shifting.
Decoding Compatibility: Big Tow vs. Standard Models
The 2006 Nissan Titan was available with several different ECMs depending on the truck's specific options. Using the wrong ECM will result in compatibility problems. When sourcing a replacement, you must match it to your truck's original configuration.
- Big Tow Package: The most important option to identify is the 'Big Tow' package. Trucks with this package have a different ECM. The easiest way to confirm if you have the Big Tow package is to check your instrument cluster for a dedicated automatic transmission temperature gauge.
- Drivetrain: ECMs are specific to 4x2 or 4x4 models.
- Flex Fuel: The ECM for a standard gasoline engine is not compatible with a Flex Fuel (E85) model, and vice-versa.
Pro Tip: The best way to ensure compatibility is to physically inspect your original ECM and match the Hitachi part number (e.g., MEC84-190 C1) or the Nissan part number (e.g., 23710-ZH51B) exactly.
ECM Programming and Anti-Theft (NATS)
Critical: A replacement ECM for a 2006 Nissan Titan is NOT a plug-and-play part. It absolutely must be programmed to your vehicle for the engine to start.
The ECM is a core component of the Nissan Anti-Theft System (NATS). The ECM, Body Control Module (BCM), and your ignition keys all contain security information that must match. When you install a different ECM, this security chain is broken, and the immobilizer will prevent the engine from starting.
Who Can Program a Replacement ECM?
- Nissan Dealership: This is the most reliable method. Dealers use the proprietary Nissan CONSULT diagnostic tool to register the new ECM to the vehicle and reprogram all existing keys to it.
- Independent Shops & Locksmiths: Some well-equipped independent mechanics or automotive locksmiths may have high-end diagnostic tools (like an Autel or advanced Snap-on scanner) with the necessary software to perform Nissan immobilizer programming. However, not all shops have this capability, so you must call ahead and confirm they can program an ECM for a 2006 Titan.
- Mail-In Programming Services: Several online retailers offer services where you can buy a used or remanufactured ECM that comes pre-programmed to your truck's Vehicle Identification Number (VIN). Some services may require you to send in your original ECM so they can clone the security data to the replacement unit. This can be a convenient option that avoids a trip to the dealer.
Buying a Used 2006 Titan ECM
A used OEM ECM is a cost-effective and reliable option, as it uses the original factory hardware and software. When buying used, follow these guidelines:
- Match the Part Number Exactly: As mentioned, this is the most important step. The Hitachi or Nissan part number on the replacement module's sticker must be identical to your original.
- Verify Vehicle Options: Double-check that the donor vehicle had the same configuration as yours: Big Tow package, 4x4 or 4x2, and standard fuel (not Flex Fuel).
- Inspect for Damage: Check the module's case for any signs of being pried open. Carefully inspect the connector pins for corrosion, which could indicate water damage. Do not buy a module with bent or corroded pins.
- Plan for Programming: Remember that the cost of the part is not the final cost. Factor in the price of programming from a dealer, shop, or mail-in service.
Cost of Replacing a 2006 Nissan Titan ECM
The total cost includes the part itself and the labor for installation and programming.
| Part or Service | Estimated Cost |
|---|---|
| New OEM | $1,100 - $2,000+ |
| Remanufactured Aftermarket | $300 - $500 |
| Used OEM | $70 - $220 |
| Shop Labor (Installation & Programming) | $150 - $350 |
Note: Labor costs can vary significantly based on shop rates. Physical installation is quick (under 1 hour), but programming can take 1-1.5 hours.
Frequently Asked Questions (FAQ)
Do I absolutely have to program a replacement ECM?
Yes, there is no way around it. The engine will not start with an unprogrammed ECM due to the Nissan Anti-Theft System (NATS).
What is the difference between the ECM and the IPDM?
The ECM is the main engine computer, located in the engine bay. The IPDM (Intelligent Power Distribution Module) is a smart fuse and relay box, also in the engine bay. A common failure on the 2006 Titan is the ECM *relay* inside the IPDM, which was subject to a recall (PC068) and can cause stalling and no-start issues that are often misdiagnosed as a complete ECM failure.
How do I know if my 2006 Titan has the 'Big Tow' package?
Look at your instrument cluster. If your truck has a separate gauge for the automatic transmission fluid temperature, it is equipped with the Big Tow package and requires the specific ECM for that option.
Can I install a used ECM myself and then drive it to the dealer for programming?
No. Once you install the unprogrammed ECM, the truck will not start. You will need to have the vehicle towed to a facility for programming, or have a mobile mechanic or locksmith with the right tools come to you.

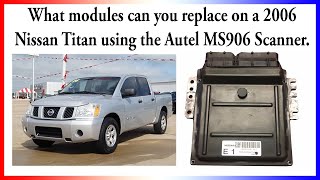

Helpful Videos
Technical Specifications
OEM Part Numbers: MEC84-190 C1 MEC84-191 A1 23710-ZH51A 23710-ZH51B 23710ZH51A 23710ZH51B MEC84-191
Compatibility is dependent on vehicle options: Big Tow package, 4x2 vs 4x4 drivetrain, and standard vs. Flex Fuel.
