2013-2014 Nissan Altima ECM: Failure, Recalls, and Programming Essentials

Critical ECM Software Recalls and Service Campaigns

Before assuming your ECM has failed and needs replacement, you must check if your vehicle is affected by known software issues. For the 2013-2014 Altima, Nissan issued important service campaigns to fix factory programming errors. A simple, and often free, dealer reprogram may solve your problems.

Emissions Recall PC131 for 2.5L Engines

Some 2013 Nissan Altimas with the 2.5L four-cylinder engine were built with an improperly calibrated ECM. This could cause the computer to incorrectly interpret normal engine sounds (like valve closure) as engine knock. This error could lead to minor drivability problems, a decrease in fuel economy, and failure to pass a state emissions or smog test. The official fix was for Nissan dealers to reprogram the ECM with updated software, a service performed at no charge.

Service Campaign PC218 for 3.5L V6 Engines

Certain 2013 Altima models equipped with the 3.5L V6 engine had an ECM calibration error that could damage the Air/Fuel (A/F) sensors. Symptoms could include a check engine light and, in rare cases, temporary drivability issues. Nissan conducted a voluntary service campaign to reprogram the ECM and, if the sensors were already damaged, replace them at no cost.

TSB for Rough Idle on Start-Up

Technical Service Bulletin NTB13-031C was issued for 2013-2015 Altimas that experience a rough idle for a few seconds after a cold start. The procedure involves inspecting the PCV valve and, if applicable, reprogramming the ECM. This is another instance where a software update, not a hardware replacement, is the solution.

Symptoms of a Failing 2013-2014 Altima ECM

When an ECM truly fails, it can cause a wide range of problems as it loses control over the engine's functions. While other faulty parts (like a bad sensor) can cause similar issues, a bad ECM is often suspected when symptoms are severe, intermittent, or multiple unrelated error codes appear at once.

• Check Engine Light: This is the most common symptom. Specific ECM-related fault codes include P0601 (Internal Control Module Memory Check Sum Error) and P0605 (Internal Control Module Read Only Memory Error).
• Engine Stalling or Misfiring: The engine may stall unexpectedly, run rough, or misfire because the ECM can no longer correctly manage spark and fuel.
• Car Won't Start: The engine may crank but fail to start. This can happen if the ECM isn't firing the fuel injectors or ignition coils. It can also be a no-crank, no-start situation if the ECM's anti-theft function is not working correctly.

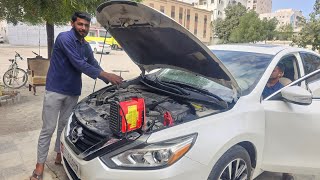

🎬 See a diagnostic walkthrough for an Altima crank-no-start issue.
• Poor Engine Performance: You may notice a sudden loss of power, poor acceleration, or hesitation.
• Drastic Drop in Fuel Economy: While a gradual decrease in MPG can be due to aging parts, a sudden, sharp drop can point to an ECM that is no longer calculating the air-fuel mixture correctly.
• Transmission Shifting Problems: The ECM works with the Transmission Control Module (TCM). A faulty ECM can sometimes cause erratic shifting or delays.

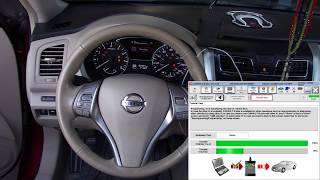

🎬 Watch: Fixing transmission judder codes with an ECM software update.

The #1 Rule: All Replacement ECMs MUST Be Programmed

This is the most critical fact for anyone replacing the ECM on a 2013-2014 Altima. You cannot simply swap in a used module. According to Nissan's own service bulletin (NTB12091A), replacement ECMs are supplied as "blank" units. They contain no vehicle-specific software and must be programmed to your car's VIN after installation.

Buying a Used Engine Control Module (ECM) for Your Altima

A used OEM ECM is a cost-effective and reliable alternative to an expensive new unit. However, you must follow these steps to ensure you get the right part and understand the necessary follow-up procedures.

Step 1: Identify Your Engine (2.5L vs. 3.5L)

The 4-cylinder and V6 engines use different ECMs. They are not interchangeable. You must purchase a module from a vehicle with the same engine size as yours.

Step 2: Match the Part Number

The safest way to ensure compatibility is to match the OEM part number printed on the sticker of your original ECM.

• Common 2.5L Part Numbers: 23710-3TY0A, 23710-3TY1A, 23710-3TY7A.
• Common 3.5L Part Numbers: 23710-3NT1A, 23710-3NT1B, 23710-3NT1C. Note that 23710-3NT1A is the latest revision and replaces the other two.

Step 3: Choose Your Path: Blank Used vs. Pre-Programmed

You have two main options when buying a replacement:

• Standard Used ECM: This is a "blank" module pulled from a donor vehicle. It is the most affordable option upfront, but it will require programming by a dealer or qualified shop after installation.
• Pre-Programmed ECM: Several online vendors offer refurbished ECMs that are pre-programmed to your car's VIN before they are shipped. These are often advertised as "plug and play." They cost more than a standard used unit but can save you a separate trip for programming, making them a good choice for DIY replacement.

Step 4: Physical Inspection Checklist

When your used part arrives, inspect it carefully before installation. Look for:

• No Water Damage: Check for any signs of corrosion or water marks on the case or connectors. Water intrusion is a common cause of electronic failure.
• Intact Connectors: Ensure all pins in the electrical connectors are straight and not bent, broken, or corroded.
• Unopened Case: The factory seal on the module's case should be intact. If it looks like it has been pried open, it may have been tampered with or poorly repaired.

Who Can Program a Nissan ECM?

You have a few options for getting a replacement ECM programmed. DIY programming is generally not feasible due to the high cost of software and tools.

• Nissan Dealership: This is the most straightforward and guaranteed option. They have the required CONSULT III Plus diagnostic tool and direct access to the correct software for your VIN.
• Independent Repair Shop: A well-equipped independent shop can perform the programming. They must have a J2534 pass-thru device and an active subscription to Nissan's ECU Reprogramming Software (NERS). Not all shops have this, so you must call and ask specifically if they can program a blank Nissan ECM.
• Automotive Locksmith: Some specialized automotive locksmiths have the tools and software to program ECMs and immobilizer systems. This can be a good alternative to the dealer.

Cost Breakdown

Prices can vary by location and supplier, but here is a general estimate of what to expect.

Frequently Asked Questions (FAQ)
