2014-2020 Mitsubishi Outlander 2.4L Valve Lift Control Module Failure: Limp Mode and U011B Code

Symptoms of a Failing Valve Lift Control Module

Unlike the main Engine Control Module (ECM), a failure here won't typically prevent the car from starting. Instead, it causes severe performance issues as the engine's breathing is compromised. Look for these specific signs.

1. Severe Limp Mode and Lack of Power

The most dramatic symptom is a sudden and severe loss of power, often described as "limp mode." You may press the accelerator pedal to the floor, but the vehicle struggles to accelerate and may not go faster than 20 mph. This happens when the main ECM loses communication with the valve lift module and defaults to a protective, low-power state.

2. Check Engine Light with Communication Codes

A failing valve lift module will almost always trigger the Check Engine Light. The most definitive diagnostic trouble code (DTC) is U011B - Lost Communication With Rocker Arm Control Module 'A'. You may also see other generic communication codes like U0100. These codes indicate an electrical or internal failure of the module itself.

3. Rough Idle and Stalling

Because the module directly controls valve lift, a malfunction can cause an unstable or rough idle. The engine may shake or vibrate more than usual when stopped. In some cases, the engine may stall unexpectedly, especially at low speeds.

4. Engine Misfires and Poor Acceleration

If the module fails to adjust valve timing correctly, it can lead to engine misfires, which may feel like a stumble or hesitation during acceleration. This can be accompanied by a general feeling of sluggishness and a noticeable decrease in fuel economy. You may see misfire codes such as P0300, P0301, etc., although the 'U' series communication code is the primary indicator of a module failure.

Buying a Used Valve Lift Control Module

Since this is a separate computer from the main ECM, buying a used unit is a viable option to save money. However, it is not always a simple plug-and-play swap. Here’s what you need to know.

Compatibility and Part Numbers

First, you must match the part number exactly. The most common part number for the 2014-2020 Outlander with the 2.4L engine is 1860C223. Always verify the number on your original module before purchasing a replacement. These modules are located in the engine bay on the passenger side (RH) inner fender, held in by three bolts, 🎬 Watch: How to find and access the valve lift ECU making them relatively easy to access and inspect.

The Reprogramming Question

This is the most critical part of the replacement. While this module is not tied to the immobilizer or keys like the main ECM, it does need to communicate correctly with the rest of the vehicle's computer network.

• Will it work without programming? Sometimes, but it is not guaranteed. Some vehicles may accept a used module without issue, while others will continue to show a communication fault (U011B) until a programming or "handshake" procedure is performed.

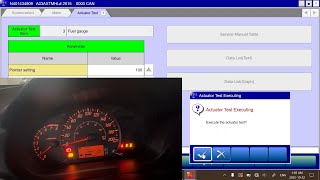

• Dealer vs. Independent Shop: A Mitsubishi dealer with the M.U.T.-III scan tool is the most reliable way to program the module 🎬 Watch: A complete walkthrough of the MUT-III diagnostic software to the vehicle. However, some independent shops with high-end diagnostic tools may also be able to perform the necessary function.
• Cloning and Pre-Programmed Units: Some specialized companies offer services to clone the data from your old module to the replacement unit. Others sell refurbished modules that are pre-programmed to your vehicle's VIN, which can make the installation plug-and-play. This is often a good middle ground between a risky un-programmed used part and an expensive new one.

Cost of Replacement (2014-2020 Outlander)

The cost can vary significantly based on the part source and labor involved.
