2007-2009 Mercedes-Benz S550 ECM: A Guide to Cloning, Costs, and Failure
This in-depth guide explains why replacing the Engine Control Module on a 2007-2009 S550 isn't a simple swap and requires special programming.
- A used ECM for an S550 MUST be 'cloned' from your original module by a specialist; it cannot be programmed by a dealer.
- Common failure symptoms include a no-start condition, engine stalling, and the cooling fan running constantly at high speed.
- The ECM is located on top of the engine, where it is exposed to heat and vibration, a common cause of failure.
- If your original ECM is lost or destroyed, a replacement can still be programmed using the car's ignition switch and key.
The #1 Thing to Know: Programming is Required
Warning: You cannot simply install a used Engine Control Module (ECM) into a 2007-2009 S550 and expect it to work. The ECM is a theft-relevant part tied to your specific vehicle's Vehicle Identification Number (VIN) and anti-theft system, known as the Drive Authorization System (DAS). A Mercedes-Benz dealer cannot and will not program a used ECM to your car. The only way to use a recycled ECM is through a process called 'cloning'.
What is ECM Cloning?
Cloning is a specialized service where a technician transfers all the critical data from your original, failed ECM to a functional, used donor ECM. This data includes the VIN, immobilizer security keys, and specific software coding for your car's options. Once cloned, the used ECM becomes a plug-and-play replica of your original unit, allowing the car to start and run without any anti-theft issues. This service is typically performed by mail-in specialty shops or some highly-equipped independent mechanics. You will need to send both your original module and the purchased used module to the service provider.
What If My Original ECM is Lost or Destroyed?
If your original ECM is missing or so badly damaged (e.g., by fire or severe water intrusion) that data cannot be recovered, the process is more complex. In this scenario, a technician will need your Electronic Ignition Switch (EIS) and your key. They can then use this hardware to program a used ECM to match your car's security system, a process sometimes called 'virginizing' the donor ECU and then programming it on the bench.

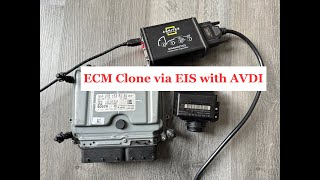

🎬 Watch: How to clone a non-communicating or lost ECMSymptoms of a Failing S550 ECM
A failing ECM can cause a wide range of confusing symptoms. Because it controls so many engine functions, its failure can mimic other problems. The ECM on the M273 engine is mounted on top of the engine, where it is exposed to significant heat and vibration, which can lead to eventual failure.
- No-Start Condition: The engine may crank but will not start. This is one of the most definitive signs of a dead ECM.
- Engine Stalling or Misfiring: The engine may stall unexpectedly while driving or idle very roughly.
- Check Engine Light: An illuminated Check Engine Light is common, but with an ECM failure, you may see a host of seemingly unrelated trouble codes, especially communication errors or sensor voltage faults.
- Engine Fan Runs at Full Speed: The radiator fan may run at its highest speed constantly, even when the engine is cold.
- Transmission and Shifting Problems: The ECM communicates with the transmission controller. A faulty ECM can cause rough shifting or prevent the gear position from displaying on the dash.
- Throttle Response Issues: You might experience a lack of throttle response or the car going into 'limp mode' with reduced power.
Common Diagnostic Trouble Codes (DTCs)
While many codes can indicate an ECM issue, some are more directly linked to internal module failure:
- P2176: Throttle valve actuator is jamming or stiff.
- 2177: The power supply at the input of control unit 'combustion engine' has a sporadic malfunction.
- P1337: Alternator Serial Interface malfunction.
- General communication codes (U-codes) indicating a loss of communication with the ECM.
Buying a Used S550 Engine Control Module
Purchasing a used OEM ECM is a cost-effective solution, but you must follow these steps carefully to ensure success.
- Keep Your Original ECM: Do not discard your original module. It is required for the cloning process. A used ECM is essentially a paperweight without the data from your original.
- Match the Part Number: While cloning can sometimes work between different hardware versions, it is safest to buy a used ECM with the exact same Bosch or Mercedes-Benz part number as your original. You can find this number printed on the module's label.
- Physical Inspection: When you receive the used module, inspect the case for any signs of physical damage, like cracks or dents. Check the electrical connector pins to ensure they are straight and free of corrosion. Avoid any units that look like they have been pried open.
- Find a Cloning Service First: Before you even buy a part, locate a reputable company that offers ECM cloning for the Bosch ME9.7 module used in these cars. Confirm their process, pricing, and turnaround time.
Pro Tip: One of the most common internal failure modes for these ECMs is a leaking capacitor that damages the circuit board. While a used unit may work perfectly, there's no way to know its internal condition. This is why some owners opt for a repair service, where a technician opens and rebuilds their original unit.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
As of mid-2024, there are no specific recalls from the National Highway Traffic Safety Administration (NHTSA) for ECM failure on the 2007-2009 S550. However, some TSBs have been issued that involve software updates to the ECM to resolve other issues.
- TSB #2007010008 (Feb 2007): This bulletin called for updating the engine control module software as required, in conjunction with a transmission software update, for the M273 engine.
- TSB #P-B-18.00/62 (related to M272/M273): While not specific to the S550, a known issue on the M273 engine family was premature wear of the timing chain idler gear sprocket, which could set check engine codes (like 1200 and 1208) that might be misdiagnosed as an ECM problem.
Cost of Replacement
The cost to replace an S550 ECM can vary dramatically depending on the path you choose. The cloning process for a used module is almost always the most economical option.
| Part/Service | Estimated Cost | Notes |
|---|---|---|
| New OEM (Dealer) | $2,050 - $3,057+ | Part cost only. Must be installed and programmed by a dealer. |
| Remanufactured | $600 - $1,200 | Often sold as a repair or pre-programmed service. |
| Used OEM | $20 - $350 | Part cost only. Requires cloning. |
| Shop Labor (Installation) | $75 - $110 | Physical removal and replacement is quick. |
| Cloning Service | $150 - $450 | Mail-in service to copy your original data to the used unit. |
Frequently Asked Questions (FAQ)
Can I drive my S550 with a bad ECM?
No. If the ECM has failed, the engine will likely not start. If it is failing intermittently, it could cause the engine to stall in traffic, creating a serious safety hazard. It is not safe to drive a vehicle with a suspected faulty ECM.
Where is the ECM located on the 2007-2009 S550?
The ECM is located directly on top of the engine, underneath the large plastic engine cover. It is a silver metal box with two large electrical connectors.
Can an independent mechanic replace and program my ECM?
An independent mechanic can physically swap the module. However, programming is the challenge. A Mercedes dealer will not program a used part. An independent shop can only program a used part if they have specialized cloning equipment or if they facilitate a mail-in cloning service for you. Some companies also offer 'plug-and-play' remanufactured units where they clone your data remotely before shipping.
Is it better to repair my original ECM or clone a used one?
Both are valid options. Repairing your original ECM means you keep the original unit and its programming, and a technician addresses the known failure points, sometimes upgrading components. Cloning is often faster, as you can have a used unit ready to be programmed. The best choice depends on the nature of the failure and the services available to you.
Helpful Videos
Technical Specifications
OEM Part Numbers: A2731531191 A2731531291 A2731532579 A2731532979 A2731533579 A2731534579 A2731535079 A2731535179 A2731535679 A2731536591 A2739000700 0261209210 0261209456
Bosch ME9.7 for M273 5.5L V8 Engine
