2008-2009 Mazda CX-9 ECM: Failure Symptoms and Replacement Programming Guide
This in-depth guide covers the common failure points, diagnostic codes, and mandatory programming steps for replacing the engine control module in your 2008-2009 Mazda CX-9.
- Programming is mandatory. A replacement ECM will not work until it is programmed to the vehicle by a dealer or a properly equipped shop.
- A common failure cause is a bad ignition coil. Always replace all six coils and plugs with the ECM to prevent repeat failure.
- Part number and vehicle options (AWD, Federal Emissions, No Tow Package) must match for a used ECM to be compatible.
- A no-start condition is the most severe symptom; the vehicle is not drivable with a completely failed ECM.
Symptoms of a Failing CX-9 ECM
ECM failure can manifest in various ways, often mimicking other component failures. It's crucial to perform a thorough diagnosis before condemning the module. Common symptoms include:
- Check Engine Light: An illuminated Check Engine Light is one of the most common signs. Codes like P0606 (Control Module Processor Fault) point directly to an internal ECM issue.
- No-Start or Intermittent Starting: The vehicle may crank but fail to start, or it may start sporadically. This can happen if the ECM isn't sending the correct signals for spark or fuel.
- Engine Performance Problems: A faulty ECM can cause a range of drivability issues, including engine stalling, misfiring, rough idling, reduced power, and poor acceleration.
- Poor Fuel Economy: If the ECM cannot correctly manage the air-fuel mixture, you may notice a sudden and significant drop in gas mileage.
- Transmission Shifting Issues: The ECM also controls the automatic transmission. A bad module can lead to hard, erratic, or delayed shifting.

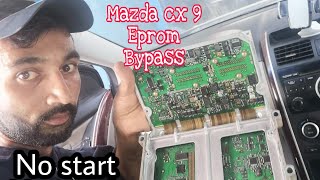

- No Communication with Scan Tool: In cases of complete failure, a diagnostic scan tool may be unable to communicate with the ECM, making diagnosis difficult. 🎬 Watch: Troubleshooting a Mazda CX-9 ECM with no communication
Warning: Many of these symptoms can also be caused by simpler, more common issues like a bad battery, faulty alternator, failed sensors, or wiring problems. Always rule out these possibilities before replacing the ECM.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
While no specific recalls for the 2008-2009 CX-9 ECM were found in the search results, a very common and well-documented issue is ECM failure caused by a faulty ignition coil. A failing coil can send a voltage spike back to the ECM, damaging the internal driver circuit for that coil. 🎬 See how ignition coil failure damages the internal ECM drivers This often results in a persistent misfire on one or more cylinders and may trigger diagnostic trouble codes P0351 through P0356 (Ignition Coil Primary/Secondary Circuit Malfunction).
Pro Tip: If you are replacing an ECM due to ignition coil driver failure, it is absolutely essential to replace all six ignition coils and spark plugs at the same time. Failure to do so will likely cause the new or repaired ECM to fail again very quickly.
Buying a Used 2008-2009 Mazda CX-9 ECM
A used OEM ECM is a cost-effective alternative to a new unit from the dealer. However, careful purchasing is key to a successful repair.
- Verify the Part Number: The most critical step is to match the part number exactly. The OEM part numbers for this module are CA0318881, CA0318881A, CA0318881B, CA0318881C, CA0318881D, and CA0318881E. The letters at the end represent revisions, but they are generally interchangeable. Always match the primary number (CA03-18-881).
- Check Compatibility: As noted in the initial data, these modules are specific. Ensure the donor vehicle had the same options as yours: All-Wheel Drive (AWD), Federal emissions, and no factory tow package. Installing an incompatible module can cause system malfunctions.
- Physical Inspection: When buying a used module, inspect the case for any signs of being opened, and check the connector pins for corrosion or damage. Water intrusion is a common cause of electronic failure.
- Why Used OEM is a Good Choice: A used original Mazda part is often more reliable than a new, unproven aftermarket unit. Since these modules require dealer-level programming, starting with a genuine OEM part that is known to be compatible with the vehicle's systems is the safest bet.
ECM Programming and Immobilizer Integration
Warning: A replacement ECM for a 2008-2009 Mazda CX-9 MUST be programmed to the vehicle. This is not a plug-and-play part. The vehicle will not start until the module is correctly programmed and synchronized with the immobilizer system.
The programming process involves several steps:
- Module Installation: The new or used ECM is physically installed in the vehicle.
- Software Programming: A technician uses a diagnostic tool to load the correct software and vehicle's VIN into the replacement ECM.
- Immobilizer Sync (PATS): The ECM must be linked to the vehicle's Passive Anti-Theft System (PATS). This involves a procedure called a "parameter reset" which requires security access. This step pairs the ECM to your existing keys.
Who Can Program a Mazda ECM?
- Mazda Dealerships: Dealers have the factory-required tool, the Mazda Integrated Diagnostic System (IDS), and direct access to the necessary software and security credentials. This is the most reliable, albeit often most expensive, option.
- Independent Repair Shops: Many well-equipped independent shops have professional-grade scan tools (like Autel) and subscriptions to the Mazda IDS software, allowing them to perform the programming.
- Automotive Locksmiths: Some advanced automotive locksmiths also have the tools and expertise to program ECMs and handle the immobilizer functions.
DIY programming is not feasible for the average home mechanic due to the expensive, specialized tools and software subscriptions required.
Replacement Cost Comparison
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Dealer) | $830 - $1,260 |
| Remanufactured | $230 - $900 |
| Used OEM | $75 - $250+ |
| Shop Labor (Installation & Programming) | $200 - $400 (1.5-3.0 hours) |
Frequently Asked Questions (FAQ)
Can I install a used ECM myself and drive the car to the shop for programming?
No. The vehicle will not start after you install the replacement ECM because it is not programmed to your vehicle's immobilizer system. The security light will likely flash, and the engine will crank but not start. The vehicle will need to be towed to the programming location.
What happens if I don't replace the ignition coils when I replace the ECM?
If your original ECM failed due to a bad ignition coil driver (a very common issue), the faulty coil that caused the problem will damage the replacement ECM. It is critical to replace all six ignition coils and spark plugs to prevent repeat failure.
Does the mileage of the donor vehicle matter?
No, the mileage from the donor vehicle is not stored in the ECM in a way that affects the new installation. The mileage displayed on your instrument cluster will remain unchanged. The important factor is matching the part number and vehicle specifications.
Is there a TSB or recall for the ECM on my 2008-2009 CX-9?
Based on search results, there are no specific recalls or widespread TSBs for ECM failure on the 2008-2009 CX-9, aside from the known issue of failure caused by faulty ignition coils. Other Mazda models and years have had recalls for ECM software updates, but none appear to apply directly to this vehicle.
Helpful Videos
Technical Specifications
OEM Part Numbers: CA0318881 CA0318881A CA0318881B CA0318881C CA0318881D CA0318881E
For vehicles with All-Wheel Drive, Federal emissions, and without a factory tow package.
