2016-2018 Jeep Wrangler JK ECM: Programming, Failures, and Replacement Guide

Symptoms of a Failing Jeep Wrangler ECM

🎬 Watch: How to diagnose and fix a U0100 code

A failing ECM can cause a wide range of confusing symptoms that often mimic other component failures. It's crucial to perform a thorough diagnosis before condemning the module. Look for these common warning signs:

• Check Engine Light: The most obvious sign is an illuminated Check Engine Light. While this can indicate many issues, persistent or multiple codes related to module communication or sensor reference voltage often point to the ECM.
• Engine Stalling or Misfiring: The engine may stall unexpectedly, stutter, or misfire. This can happen intermittently and may be worse as the engine warms up. This is often caused by the ECM failing to correctly command the ignition coils or fuel injectors.
• No-Start Condition: A common failure mode is an engine that cranks but will not start. This can happen if the ECM is not providing the signal to the fuel pump or ignition system.
• Poor Engine Performance: You may notice a sudden drop in fuel economy, sluggish acceleration, or rough idling.
• Erratic Transmission Shifting: On automatic models, the ECM controls shift points. A faulty module can cause harsh, delayed, or unpredictable shifting.
• Communication-Related OBD-II Codes: Codes starting with 'U' (e.g., U0100 - Lost Communication with ECM/PCM) are a strong indicator of an ECM issue. Other common codes include the P06xx range, such as P0622 for alternator control failure or P0606 for internal processor fault.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While this specific ECM has been relatively reliable, there are a few official notices to be aware of:

• Safety Recall U62 / NHTSA 18V-332: This recall affects some 2018 Jeep Wrangler JK models. A software issue in the Powertrain Control Module could cause a loss of communication with the CAN-C bus while cruise control is active, potentially leading to a crash. The fix involves a dealer reprogramming the PCM with updated software.
• Safety Recall U87 / NHTSA 18V-524: Affecting a broader range of FCA vehicles including some 2017-2018 Wrangler models, this recall was for a faulty voltage regulator chip on the PCM circuit board. This defect could cause a no-start condition or a stall while driving. The remedy is a complete replacement of the PCM.

Always check your vehicle's VIN on the NHTSA website to see if any open recalls apply to your specific Wrangler.

ECM Programming and Anti-Theft (SKIM)

THIS IS THE MOST IMPORTANT PART OF REPLACING YOUR ECM. You cannot simply swap a used ECM into your Wrangler and expect it to work. The module must be professionally programmed to your vehicle.

The ECM is linked to the Sentry Key Immobilizer Module (SKIM). This is an anti-theft system that prevents the engine from running unless it recognizes a valid, programmed key. When you install a new or used ECM, it has a different Vehicle Identification Number (VIN) and security code stored in it. The SKIM system will detect this mismatch and disable the engine, typically allowing it to start and run for only two seconds before shutting off.

Who Can Program the ECM?

• Jeep Dealerships: A Jeep dealer can always program a new or used OEM ECM to your vehicle using their proprietary wiTECH scan tool. This is the most reliable but often most expensive option.

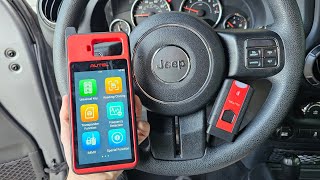

• Qualified Independent Shops & Locksmiths: Many independent auto repair shops and automotive locksmiths have tools like the Autel KM100 or other J2534 pass-thru devices that can perform this programming. They will need access to your vehicle's 4-digit PIN code, which can sometimes be obtained from the dealer.
• Mail-In Services: Several companies offer mail-in services where you send them your original ECM and the replacement unit. They clone the data from your old module to the new one or program the replacement with your VIN and security information, making it plug-and-play upon return.

Buying a Used 2016-2018 Wrangler ECM

A used OEM ECM is an excellent, cost-effective alternative to a pricey new unit from the dealer. Because these modules are not high-wear items, a recycled part from a reputable source can provide the same performance and longevity as a new one. Here's what to look for:

• Match the Part Number Exactly: The most critical step is to match the OEM part number. The primary part numbers for this range are 68259136AA and its successor, 68259136AB. The 'AB' version replaces the 'AA' and is backward compatible. Do not install a module with a different part number.
• Physical Inspection: When you receive the used module, inspect it carefully. Look for any signs of physical damage, corrosion on the pins, or evidence that the case has been opened. The connectors should be clean and all pins straight.
• Source Matters: Purchase from a supplier who offers a warranty. This gives you protection in case the module is faulty, which is impossible to know until it's installed and programmed.
• Plan for Programming: Remember that the cost of the part is not the final cost. Factor in the price of programming from a dealer, shop, or mail-in service before you buy.

Replacement Cost Breakdown

The cost to replace a Wrangler JK ECM can vary significantly based on the parts and labor source.
