2008 Jeep Grand Cherokee & Commander 3.7L ECM: Stalling, No-Start Issues, and Replacement Guide
This guide covers the common failure symptoms, recall information, and critical programming requirements for the Engine Control Module (ECM) in your 2008 Jeep Grand Cherokee or Commander with the 3.7L V6 engine.
- A replacement ECM for a 2008 Jeep Grand Cherokee or Commander MUST be programmed with the vehicle's VIN to defeat the anti-theft system; otherwise, the engine will not start.
- Buying a pre-programmed ('plug-and-play') remanufactured ECM online is often the most cost-effective and straightforward solution, avoiding a separate trip to the dealer.
- Check for Safety Recall H03 (NHTSA #08V059000), as it can cause engine stalling and may entitle you to a free inspection and replacement from a dealer.
- Symptoms like stalling, no-start, and poor performance can also be caused by simpler issues like a bad battery or crankshaft position sensor, which should be ruled out before replacing the ECM.
Urgent Safety Recall: NHTSA #08V059000
Before diagnosing a faulty ECM, owners of a 2008 Jeep Grand Cherokee or 2008 Jeep Commander should be aware of Chrysler Safety Recall H03 (NHTSA Campaign ID: 08V059000). This recall was issued for vehicles manufactured between December 4, 2007, and December 11, 2007. The recall addresses an incorrectly manufactured Front Control Module (FCM), which can cause the engine to stall while driving, fail to start, or cause the windshield wipers to stop working. An unexpected engine stall can be extremely dangerous. You can check if your vehicle is affected by this recall by contacting a Chrysler dealership or using your VIN on the NHTSA website.
Symptoms of a Failing 2008 Jeep ECM
A failing ECM can create a variety of confusing symptoms that often mimic other problems. Always perform a full diagnosis before condemning the computer. However, if you are experiencing several of the following, the ECM may be the culprit:
- Engine Stalling: The engine may stall unexpectedly while driving or when coming to a stop. This is one of the most serious symptoms.
- No-Start or Hard Start: The engine may crank but refuse to start, or it may take an extended time to fire up. In some cases, it may not crank at all.
- Check Engine Light: An illuminated Check Engine Light is common. Codes specific to internal processor failure, like P0601 or P0606, are a strong indication of a bad ECM. You may also see communication codes (U-series) or multiple random misfire codes (P0300).
- Poor Engine Performance: You may notice a significant loss of power, hesitation during acceleration, rough idling, and a general sense that the engine is running poorly.
- Decreased Fuel Economy: An unexplained drop in gas mileage can occur as the ECM loses its ability to efficiently manage the engine's fuel mixture.
- Erratic Transmission Shifting: Since the module also controls the transmission, you might experience harsh shifts, delayed shifting, or being stuck in one gear.
Pro Tip: Before blaming the ECM, always check the basics first. Ensure your battery is fully charged and the terminals are clean. A weak battery can cause a host of strange electrical issues in these vehicles that can be mistaken for ECM failure. Also, rule out common 3.7L engine issues like faulty crankshaft position sensors or mechanical valve train problems.
Buying a Used or Remanufactured ECM: Programming is Everything
This is the most critical part of replacing the ECM in your 2008 Grand Cherokee or Commander. You cannot simply swap in a used module from another vehicle and expect it to work.
Programming: The Non-Negotiable Step
The ECM is tied to your vehicle's anti-theft system, known as the Sentry Key Immobilizer Module (SKIM). For the engine to start, the VIN stored in the ECM must match the VIN stored in the other vehicle modules. If they do not match, the anti-theft system will activate, and the engine will not start.
You have two main options for programming:
- Buy a Used ECM and Have it Programmed: You can purchase a used ECM with a matching part number and take it to a dealership or a well-equipped independent shop to have it programmed to your vehicle's VIN. This service can cost between $175 and $300. 🎬 See how to program a used engine computer
- Buy a Pre-Programmed ECM: This is the most popular and straightforward solution. Numerous online retailers sell remanufactured ECMs that are pre-programmed to your vehicle's VIN before they are shipped. You provide your VIN at the time of purchase, and the module arrives ready for a "plug-and-play" installation, with no dealer visit required.
Warning: Ensure the ECM you are buying is specifically for a 2008 Jeep Grand Cherokee or Commander with the 3.7L V6 engine. An ECM from a 4.7L or 5.7L HEMI model will not work.
Verifying Part Numbers
While many part numbers are interchangeable once programmed, it's best to match the number on your original module. Known compatible part numbers include 05150302AC, 05187304AF, 05187382AA, 05187382AB, and 05187319AA. Many of these share the same base hardware number, such as 05150302AC.
ECM Location and Replacement Overview
The physical replacement process is relatively simple for a DIY mechanic.
- Locate the ECM: On both the 2008 Grand Cherokee and Commander, the ECM is located in the engine bay. It is a silver metal box with three large electrical connectors. It is typically mounted to the firewall or inner fender, often near the air filter housing or underneath the battery tray.
- Disconnect the Battery: Always disconnect the negative battery terminal before working on any electronic components.
- Remove Connectors: Carefully unplug the three 32-pin connectors from the ECM. Inspect the pins for any corrosion or damage.
- Unbolt the Module: Remove the mounting bolts (typically three 8mm or 10mm bolts) 🎬 Watch this step-by-step ECM removal and replacement walkthrough and remove the old ECM from the vehicle.
- Install the New Module: Bolt the new ECM in place, reconnect the three electrical connectors, and finally, reconnect the negative battery terminal. If you purchased a pre-programmed unit, the vehicle should now start and run correctly.
Cost of Replacing a 2008 Jeep ECM
The cost can vary dramatically based on which replacement option you choose. The table below illustrates the approximate costs.
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | $800 - $1,200+ | May be difficult to source. Does not include dealer programming fees. |
| Remanufactured (Pre-Programmed) | $250 - $500 | The most common and recommended option. Arrives ready to install. |
| Used OEM (from a salvage yard) | $50 - $150 | Cheapest initial cost, but requires separate programming. |
| Shop Labor (Installation) | $70 - $100 | For the physical swap only. |
| Shop Labor (Programming Only) | $175 - $300+ | Required if you buy a used, non-programmed module. |
Frequently Asked Questions (FAQ)
Does a replacement ECM for a 2008 Jeep have to be programmed?
Yes, absolutely. The ECM must be programmed with your vehicle's VIN to communicate with the anti-theft system. Without programming, the engine will not start. Buying a pre-programmed unit online is the easiest way to handle this.
Can I use an ECM from a 5.7L HEMI in my 3.7L V6 Grand Cherokee?
No. The engine control module is specific to the engine and powertrain configuration. You must use an ECM designed for the 3.7L V6 engine.
Where is the ECM located on the 2008 Grand Cherokee and Commander?
The ECM is in the engine compartment. Look for a silver metal box with three large connectors, usually mounted near the air filter housing or under the battery and its tray.
My Jeep cranks but won't start. Is it the ECM?
It could be, but a crank/no-start condition has many possible causes. The most common are a dead battery, a bad starter, or a fuel delivery problem. A faulty crankshaft position sensor is also a very common culprit on these Jeeps and should be checked before replacing the expensive ECM.

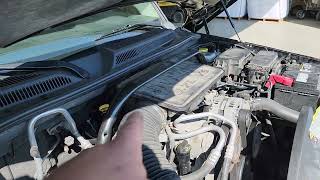

Helpful Videos
Technical Specifications
OEM Part Numbers: 05150302AC 05187304AF 05187382AA 05187382AB 05187319AA 05187300AE 05187300AF 05187300AH 05187305AG 05187301 05150467AB
Module requires VIN programming to sync with the Sentry Key Immobilizer Module (SKIM). Features three 32-pin connectors.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
