2008-2010 Honda Odyssey ECM: Your Guide to Replacement and Programming

Symptoms of a Failing 2008-2010 Odyssey ECM

ECM failure can be difficult to diagnose because its symptoms often mimic other, more common component failures. However, a faulty ECM typically causes a range of performance issues. One of the most telling signs of an internal ECM problem is the appearance of specific diagnostic trouble codes.

• Check Engine Light: This is often the first and most obvious sign. If the ECM detects an internal fault, it will trigger the Malfunction Indicator Lamp (MIL), also known as the check engine light.
• Engine Will Not Start: The vehicle may crank but fail to start. This can happen if the ECM is not properly controlling the fuel injectors or ignition coils, or if there is an immobilizer mismatch.
• Engine Stalling or Misfiring: The engine may stall unexpectedly, either while driving or at idle. You might also experience rough idling, engine hesitation, or misfires as the ECM struggles to maintain correct engine timing and fuel mixture.
• Poor Performance and Fuel Economy: A noticeable drop in power, sluggish acceleration, and a sudden decrease in gas mileage can all point to an ECM that is not managing the engine efficiently.
• Erratic Shifting: Since the ECM (or PCM) communicates with the transmission, a faulty module can sometimes cause harsh or irregular gear shifts.

Key OBD-II Codes for ECM Failure

While many codes can indicate issues with sensors that the ECM reads, the following codes point specifically to an internal failure of the module itself:

• P0606 - ECM/PCM Processor Fault: 🎬 Watch this guide on diagnosing the P0606 processor error code. This code is a direct indication that the ECM has detected a problem with its own internal processor. It is a strong sign that the module itself has failed.
• P060A - Internal Control Module Monitoring Processor Performance: Similar to P0606, this code means the ECM has failed a self-test and there is an internal performance issue with one of its processors.
• A Flood of Unrelated Codes: Sometimes, a failing ECM will suddenly throw numerous codes for various sensors at once. If you see codes for the oxygen sensor, crankshaft position sensor, and throttle position sensor all appearing at the same time, it may be the ECM itself that is the root cause, not the individual sensors.

Buying a Used 2008-2010 Odyssey ECM

Purchasing a used OEM ECM is a cost-effective solution, but it requires careful attention to detail. Because these modules are tied to the vehicle's anti-theft system, you cannot simply swap one in and expect it to work.

• Match the Part Number Exactly: This is the most important step. Honda made various hardware and software revisions. Using an ECM with a different part number, even from the same year vehicle, can result in performance issues or complete incompatibility. Check the sticker on your original ECM and find a used unit with the identical number.
• Physical Inspection: When you receive the used ECM, inspect the case for any signs of damage, such as cracks or dents. Check the connector pins to ensure none are bent, broken, or corroded.
• Source Matters: Buy from a reputable seller that offers a warranty or guarantee. This protects you in case the unit is dead on arrival.
• Programming is Required: Remember that the cost of the part is not the final cost. You must factor in the expense of programming the used ECM to your vehicle. A used ECM from another vehicle will not start your car until it is programmed.

ECM Programming and Immobilizer Requirements

When you replace the ECM in a 2008-2010 Honda Odyssey, you must program it to the vehicle. This process involves two main steps: writing your vehicle's VIN to the new ECM and synchronizing the immobilizer system with your existing keys. If this is not done, the anti-theft system will prevent the engine from starting. You have three main options for programming:

1. Honda Dealership: This is the most reliable, albeit often most expensive, option. The dealer has the proprietary Honda Diagnostic System (HDS) software required to perform the replacement procedure correctly. You will likely need to have your vehicle towed to the dealership for this service.
2. Independent Repair Shop or Automotive Locksmith: Many independent shops and qualified automotive locksmiths have professional-grade scan tools (such as Autel or Launch) that can perform the VIN writing and immobilizer relearn functions for Honda vehicles. This can be a more affordable and convenient option than a dealership.

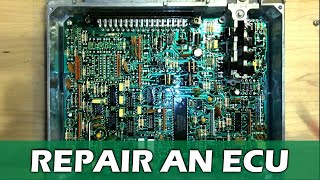

3. DIY Chip Swapping (Expert Level): 🎬 See how a professional technician diagnoses and repairs internal ECU faults. This highly technical method involves physically de-soldering the two EPROM memory chips that store the VIN and immobilizer data from your original ECM and soldering them onto the replacement ECM. This is extremely difficult due to a strong, resilient adhesive used on the circuit board and requires advanced soldering skills. Attempting this without experience is very likely to destroy both modules.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

As of early 2026, there are no specific recalls or widespread TSBs for ECM failure on the 2008-2010 Honda Odyssey. However, other issues can produce similar symptoms, leading to a potential misdiagnosis:

• TSB for Piston Ring Alignment: Honda issued a service bulletin indicating that on some V6 engines, the piston rings could align and lead to spark plug fouling, causing misfire codes (P0301-P0304). A technician might mistakenly suspect the ECM's injector drivers before diagnosing the underlying mechanical issue.
• Recall for VSA Modulator: A recall was issued for the Vehicle Stability Assist (VSA) modulator, which could allow air into the brake system, causing a soft or low brake pedal. While not directly related to the ECM, it highlights the complexity of the vehicle's electronic systems.

Cost to Replace the 2008-2010 Odyssey ECM

The cost can vary significantly based on which type of part you choose and who performs the labor and programming.

Frequently Asked Questions (FAQ)
