2006-2008 Honda Civic ECM: Your Guide to Programming, Immobilizer Issues, and Replacement
Replacing the engine computer in your Civic isn't just a swap-and-go job; this guide covers the critical programming steps, costs, and common failures you need to know about.
- A replacement ECM (new or used) absolutely MUST be programmed to the car's immobilizer system to start the engine.
- Always match the OEM part number exactly. Different numbers for automatic/manual transmissions are not interchangeable.
- For 2006 Civic Coupes (LX, EX, Si), a TSB indicates the instrument cluster may also need to be replaced along with the ECM for programming to be successful.
- A flashing green key light on the dash means there is an immobilizer problem, which is the primary symptom of an unprogrammed ECM.
Symptoms of a Failing ECM
A bad ECM can cause a wide range of problems that may seem unrelated. Because the ECM controls so many functions, its failure can mimic other issues, making diagnosis tricky. Look for these common signs:
- Check Engine Light: This is the most common symptom. A diagnostic scan might reveal codes specifically for internal ECM/PCM failure, such as P1607, or a host of other seemingly unrelated codes that appear all at once.
- Engine Will Not Start: The car may crank but fail to start because the ECM isn't properly managing fuel or spark. In many cases, this is due to the immobilizer system not recognizing the key after an ECM failure.
- Stalling or Misfiring: The engine may stall unexpectedly, run rough, stutter, or misfire. This can happen if the ECM sends incorrect signals to the fuel injectors or ignition coils.
- Poor Performance and Fuel Economy: If the ECM can't correctly calculate the air-fuel mixture, you may notice a sudden drop in gas mileage or a feeling that the car is sluggish and lacks power.
- Transmission Shifting Issues (Automatic Only): The ECM works with the transmission controller. A faulty ECM can lead to rough or erratic shifting.
- Flashing Green Key Light: A blinking green key icon on the dashboard is the tell-tale sign of an immobilizer issue. 🎬 Watch: Understanding the flashing green key immobilizer light. This means the car's security system does not recognize the key, which is often because the ECM is new, used from another car, or has failed.
The Critical Step: ECM Programming & Immobilizer Syncing
You cannot simply install a replacement ECM—new or used—and expect the car to start. It will crank but will not fire up because of the built-in Honda Immobilizer System. This anti-theft feature requires the ECM, the immobilizer control unit, and the ignition keys to all be electronically synchronized.
Warning: A replacement ECM must be programmed to your vehicle's VIN and keys using specialized tools. Without this step, the immobilizer will prevent the engine from starting.
Who Can Program a Honda ECM?
- Honda Dealerships: This is the most reliable, albeit often most expensive, option. They have the official Honda Diagnostic System (HDS) software and are trained in the procedure.
- Independent Repair Shops: Many professional shops invest in a J2534 Pass-Thru device and a subscription to the Honda HDS software, allowing them to perform the same programming as a dealer. 🎬 See how a scan tool programs the immobilizer system.
- Automotive Locksmiths: Some advanced locksmiths have the tools and software to program keys and modules, including ECMs.
- Mail-In Cloning Services: Companies exist where you can mail in your original ECM and a compatible used replacement. They will transfer the immobilizer data from your old unit to the replacement, creating a 'plug-and-play' module that requires no further programming. This is an excellent option if your original ECM is still able to communicate.
Special TSB for 2006 Civic Coupes
Important TSB Information: A specific Honda technical service bulletin notes that for some 2006 Civic models (LX Coupe, EX Coupe, and Si), replacing the ECM also requires replacing the instrument cluster. The original cluster on these specific models may not have the necessary data to sync with a new ECM. If you have one of these models, confirm with a dealer or specialist before starting the repair to avoid a failed programming attempt.

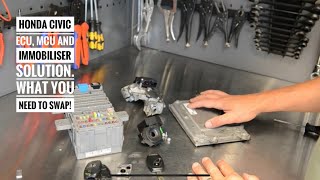

🎬 Watch: What you need to swap for a faulty ECU.Buying a Used Engine Control Module (ECM)
For a vehicle of this age, a used OEM ECM is often the most cost-effective solution. Aftermarket units can be expensive and may have compatibility quirks, while a used original part is a known quantity. Here's what to look for:
- Match the Part Number Exactly: The most important rule. Honda uses many different ECMs for variations in transmission (manual vs. automatic), trim level, and emissions. The part number is printed clearly on a sticker on the ECM's case. It should start with '37820-RNA-'. Mismatched part numbers will not work correctly, if at all.
- Inspect for Damage: Check the used part for any signs of physical damage, especially corrosion on the connector pins. Water intrusion is a common killer of electronics. Ensure the case hasn't been pried open.
- Factor in Programming Costs: Remember that the price of the used ECM is not the final cost. You must budget for programming, which can cost anywhere from $100 to $300 or more.
Cost Breakdown for ECM Replacement
Prices can vary significantly based on the source of the part and labor rates in your area.
| Item | Estimated Cost | Notes |
|---|---|---|
| New OEM ECM | $900 - $1,400+ | Purchased from a Honda dealership. |
| Remanufactured ECM | $250 - $450 | From specialty electronics rebuilders. May come pre-programmed or require cloning. |
| Used OEM ECM | $50 - $200 | From an auto recycler. This is just for the part; programming is a separate cost. |
| Shop Labor & Programming | $150 - $400 | Includes physical installation (if needed) and the key/immobilizer programming procedure. |
Physical Replacement Walkthrough (Engine Bay Location)
The physical swap of the ECM is straightforward. On most North American 2006-2008 Civics, it is located in the engine bay next to the battery.
- Disconnect the Battery: Always disconnect the negative battery terminal (10mm wrench) before working on any vehicle electronics.
- Access the ECM: You may need to remove the battery and battery tray to get clear access to the ECM and its mounting bracket.
- Remove Cover and Connectors: A plastic cover may be clipped over the ECM. Unclip it. There are three large electrical connectors. Press the release tab on each and pivot the locking lever to unplug them.
- Unbolt the ECM: Remove the 10mm bolts holding the ECM bracket to the vehicle's body.
- Install in Reverse: Bolt the new ECM in place, reconnect the three connectors, reinstall any covers and the battery, and reconnect the negative battery terminal last.
Pro Tip: The physical replacement is the easy part. The car will not start at this point. It must now be towed or taken to a facility for programming.
Frequently Asked Questions (FAQ)
Do I have to take my Civic to the dealer to replace the ECM?
Not necessarily. While a Honda dealer can always perform the programming, many independent shops and some automotive locksmiths have the required HDS software or equivalent tools to do the job. You can also use a mail-in service to clone your old module's data to the new one.
What happens if I install a used ECM without programming it?
The engine will not start. The dashboard will likely display a flashing green key symbol, indicating that the immobilizer system is active and does not recognize the new, unprogrammed ECM.
Can I use an ECM from a different year or model Civic?
No. You must use an ECM with the exact same OEM part number as your original. Different part numbers are for different transmissions, emissions systems, and features, and they are not interchangeable.
Can I bypass the immobilizer myself?
There is no simple, permanent way for a DIYer to bypass the immobilizer. Some temporary bypasses exist using a 'brake code' obtained from a dealer with proof of ownership, but this is only meant to get the car to a repair shop and must be re-entered every time you start the car. The only real fix is proper programming.
Helpful Videos
Technical Specifications
OEM Part Numbers: 37820-RNA-A53 37820-RNA-A58 37820-RNA-A59 37820-RNA-A61 37820-RNA-A62 37820-RNA-A63 37820-RNA-A64 37820-RNA-A65 37820-RNA-A66 37820-RNA-A67 37820-RNA-A68 37820-RNA-A07 37820-RNA-A12 37820-RNA-A13 37820-RNA-A14
Location: Engine bay, driver's side, next to battery. Connectors: Three large multi-pin connectors.
