2008-2009 Taurus, Sable & Taurus X PCM Failure: Solving Stalls and P035x Codes

Symptoms of a Failing PCM

A faulty Powertrain Control Module can cause a wide range of issues, from a simple check engine light to a car that won't start at all. Because the PCM controls so many systems, symptoms can sometimes be confusing or mimic other problems.

• Engine Stalling or Misfiring: The engine may stall unexpectedly while driving or idle roughly. This is often accompanied by specific trouble codes.
• Check Engine Light with Ignition Coil Codes (P0351-P0356): This is the most definitive sign of the common failure pattern for these vehicles. A code like P0351 points to a malfunction in the ignition coil circuit for cylinder 1 🎬 Watch: Diagnostic walkthrough for Ford ignition coil codes, which is often caused by a failure inside the PCM itself.
• Crank-No-Start Condition: The engine will turn over but will not fire up. This happens when the PCM fails to send the proper signals to the fuel injectors or ignition coils.
• Erratic or Harsh Transmission Shifting: Since the PCM also controls the transmission, a failure can cause delayed shifts, harsh engagement, or getting stuck in one gear.
• Multiple Unrelated Warning Lights: A failing PCM can sometimes trigger a cascade of warning lights on the dashboard, such as for the ABS or traction control systems, due to communication errors.
• Sudden Drop in Fuel Economy: If the PCM can no longer manage the air-fuel ratio correctly, your gas mileage may get significantly worse.

The #1 Cause of Failure: Bad Ignition Coils

The most common reason the PCM fails in the 2008-2009 Taurus, Sable, and Taurus X is due to a shorted ignition coil. When an ignition coil fails, it can send a high-voltage spike back to the PCM, destroying the internal circuit (known as the coil driver) that controls it.

This creates a vicious cycle. A bad PCM can damage a new coil, and a bad coil will damage a new PCM. Therefore, it is absolutely critical to replace all six ignition coils and all six spark plugs at the same time you replace the PCM. Failing to do so will almost certainly cause the replacement PCM to fail immediately.

Buying a Used Engine Control Module

A used OEM PCM can be a reliable and cost-effective alternative to an expensive new unit. However, you must follow these guidelines to ensure you get a compatible part.

1. Match the Part Number Exactly: The most critical step is to match the OEM part number on your original PCM with the number on the used unit. The part number is printed on a sticker on the module's case. Even a one-digit difference can mean the module has different software or hardware for another application. The initial letters (e.g., 8F9A, 8G1A) and the core number (12A650) must match.
2. Verify Emissions Compatibility: These vehicles were built with different emissions systems (Federal or California). The PCM is programmed specifically for one or the other. Check the Vehicle Emission Control Information (VECI) sticker under the hood of your car to determine if you have Federal or California emissions, and ensure the donor vehicle for the used PCM had the same system.
3. Inspect for Physical Damage: When you receive the used PCM, check the case for any signs of being pried open and inspect the electrical connectors for corrosion, bent pins, or water damage. The PCM is located under the cowl at the base of the windshield, a spot where water can sometimes leak if drains are clogged.

Programming and Installation Requirements

A replacement PCM—whether it's used, remanufactured, or new—will not work by simply plugging it in. It must be professionally programmed to your specific vehicle.

Why is Programming Necessary?

Programming is required to link the replacement PCM to your vehicle's unique Vehicle Identification Number (VIN) and its anti-theft system, known as the Ford Passive Anti-Theft System (PATS). The PATS system uses a transponder chip in your key that communicates with the PCM. If the PCM doesn't recognize the key, it will disable the engine to prevent theft.

Who Can Program the PCM?

• Ford/Lincoln/Mercury Dealerships: A dealer has the factory tools and software to perform the programming correctly. This is the most reliable, but often most expensive, option.
• Automotive Locksmiths: Many professional locksmiths have advanced tools that can program Ford PCMs and sync them with your existing keys.
• Mobile Mechanics: Some independent mechanics specialize in mobile diagnostics and programming and can perform this service at your home or shop.

Replacement Procedure Overview

The physical replacement of the PCM is straightforward. The main challenge is the programming that must follow.

1. Disconnect the Battery: Always disconnect the negative battery terminal before working on any electronic components.

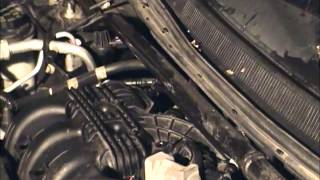

2. Locate the PCM: On the Taurus, Sable, and Taurus X, the PCM is located in the engine compartment on the firewall, underneath the plastic cowl panel 🎬 See this step-by-step PCM removal video at the base of the windshield. You will need to remove some clips or screws to lift this panel for access.
3. Disconnect the Connectors: Carefully unplug the large electrical harness connectors from the PCM. There are typically locking tabs that need to be released.
4. Remove the PCM: Unbolt the PCM from its mounting bracket on the firewall.
5. Install the New PCM: Bolt the replacement PCM into place, reconnect the electrical harnesses, and reinstall the cowl panel.
6. Program the Module: Reconnect the battery and have the vehicle towed or a mobile technician come to program the newly installed PCM.

Cost Comparison

Prices can vary, but here is a general estimate for replacing the PCM on these vehicles.
