2010 Ford Fusion & Mercury Milan ECM: Solving Stalls, No-Starts, and Programming Headaches

Critical Failure Symptoms

A failing ECM in a 2010 Ford Fusion or Mercury Milan can cause a wide range of problems, from frustrating performance issues to leaving you stranded. Because the ECM controls so many systems, symptoms can sometimes be confusing or mimic other component failures.

• Engine Won't Start: The most severe symptom is a complete no-start condition. The engine may crank over but will not fire up because the ECM isn't sending the proper signals for spark or fuel.
• Intermittent Stalling: The engine may stall unexpectedly while driving or when coming to a stop. This can be a serious safety issue.
• Poor Engine Performance: You may notice a significant loss of power, hesitation during acceleration, rough idling, engine stuttering, or a sudden drop in fuel economy.
• Harsh or Erratic Shifting: Since the ECM also manages the transmission, a faulty module can cause jerky, delayed, or incorrect gear changes.
• Check Engine Light or Wrench Light: Often, a failing ECM will trigger the Check Engine Light or the wrench-shaped powertrain fault light on your dashboard.

Common OBD-II Codes for ECM Failure

While many codes can indicate an ECM problem, a few are particularly common for these vehicles:

• P0351, P0352, P0353, P0354, P0355, P0356: These codes correspond to the ignition coil circuits for each cylinder. On the 3.0L and 3.5L V6 engines, a failed ignition coil can short out and damage the driver circuit inside the ECM, making these codes a strong indicator of a bad module.
🎬 Watch this video on diagnosing persistent ignition coil misfires.
• P2610 - ECM/PCM Internal Engine Off Timer Performance: This code means the ECM's internal clock, which is needed for emissions tests, is not working correctly. It can be an early sign of internal ECM failure.
• U0100 - Lost Communication With ECM/PCM: This indicates that other modules in the car can no longer communicate with the engine computer, pointing directly to an ECM fault or a major wiring issue.
• A flood of unrelated codes: Sometimes, a failing ECM will generate a long list of codes for various sensors at once. If you suddenly have multiple, seemingly random error codes, the ECM itself may be the root cause.

Known Issues for 2010 Fusion & Milan

The Ignition Coil Killer: A Common Cause of ECM Failure

If you are replacing your ECM due to ignition coil fault codes (P0351-P0356), it is absolutely mandatory to replace ALL ignition coils and spark plugs at the same time. Installing a new or repaired ECM without replacing the faulty coil (and the others that are likely near failure) will cause the replacement ECM to fail immediately. This is not covered by most warranties.

Related Problem: The Electronic Throttle Body

Many owners of 2010 Fusions and Milans have experienced sudden power loss where the car enters a "limp mode," accompanied by an illuminated wrench light. This is often caused by a faulty electronic throttle body (ETB). Ford acknowledged this issue with Customer Satisfaction Program 13N03, which extended the warranty on the throttle body to 10 years or 150,000 miles. While this is not a direct ECM failure, the repair procedure often involves reprogramming the ECM with the latest software after the new throttle body is installed. It's important to note that Hybrid models were often excluded from this program, despite experiencing similar failures.

The #1 Question: ECM Programming and Anti-Theft

You cannot simply swap a used ECM into your 2010 Fusion or Milan and expect it to work. The replacement module must be programmed to your specific vehicle. This process involves two key steps: programming the VIN and synchronizing the anti-theft system.

Who Can Program a Replacement ECM?

This is not a simple DIY task. You will need professional help from one of the following:

• Ford Dealership: They have the factory tools and software (IDS/FJDS) to perform the programming.
• Automotive Locksmith: Many mobile locksmiths have advanced scan tools that can perform the required PATS "parameter reset" and key relearn procedures.
• Equipped Independent Shop: A repair shop with a high-end bidirectional scan tool (like certain Autel or Snap-on models) or a J2534 Pass-Thru device with a Ford software subscription can also perform the programming.

Buying a Used 2010 Fusion or Milan ECM

Purchasing a used OEM ECM is a great way to save money, but you must be careful to get the right part and understand the necessary follow-up steps.

1. Verify Your Part Number: The most critical step is to match the ID number on your original module. For the 2010 Fusion and Milan with the 2.5L or 3.0L engine, the key engineering numbers to look for are AE5A-BTB or AE5A-CRA. The service part number may be AE5Z-12A650-CRA. Always check the sticker on your car's original ECM to be certain.
2. Perform a Physical Inspection: When you receive the used module, inspect it carefully before installation. Look for white or green crusty residue on the connector pins, which indicates water damage. Also check for any burn marks or physical damage to the case. A water-damaged ECM is often unrepairable and should be returned.
3. Factor in the Total Cost: Remember that the price of the used module is only part of the total cost. You must also budget for 1-2 hours of labor for professional programming and potentially the cost of a second key if you only have one.

Replacement Guide

The physical swap of the ECM is relatively straightforward for a DIYer with basic tools. The module is located in the engine bay, under the battery.

• Difficulty: 2 out of 5 (for physical swap only)
• Time: 0.5 - 1 hour
• Tools Needed: 8mm and 10mm sockets, socket wrench.

Step-by-Step Removal

1. Disconnect the negative battery terminal.
2. Remove the 10mm bolts holding the metal battery brace that runs over the battery.
3. Loosen the 8mm nuts on the battery terminals and remove the battery.
4. Remove the bolts (typically 8mm and 10mm) holding the plastic battery tray and lift it out of the vehicle to expose the ECM below.
5. Disconnect the electrical connectors from the ECM by pulling back on the gray locking tabs and swinging the levers.
6. Remove the four 10mm bolts securing the ECM to its bracket and slide the module out.

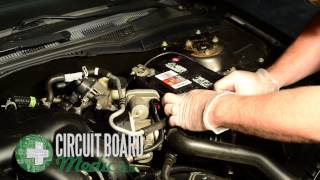

🎬 Watch this step-by-step PCM removal and repair walkthrough.
7. Installation is the reverse of removal. The vehicle will not start until the new module is programmed.
