2015-2021 Ford Expedition, Navigator & Transit ECM Failure and Replacement Guide

Symptoms of a Failing Engine Control Module (ECM)

A failing ECM can cause a wide range of confusing and often intermittent problems. Because the ECM controls so many different systems, symptoms can vary greatly. It's often one of the last components to be diagnosed after sensors and wiring have been ruled out.

• Check Engine Light: This is the most common symptom. A variety of Diagnostic Trouble Codes (DTCs) pointing to different sensors or systems can be stored in the module.
• Engine Performance Issues: You may experience random misfires, rough idling, stalling, a loss of power, or poor fuel economy.
• No-Start or Intermittent Starting: The engine may crank but fail to start, or it may start sporadically. This can happen if the ECM is not properly firing the ignition coils or fuel injectors.
• Transmission Shifting Problems: The ECM works with the transmission controller. A faulty module can lead to harsh shifting, delayed engagement, or other erratic transmission behavior.
• Communication Failures: A diagnostic scan tool may be unable to communicate with the ECM, which is a strong indicator of an internal module failure.

Common Diagnostic Trouble Codes (DTCs)

While many codes can indicate an ECM issue, some are more directly related to internal module failures or the circuits it controls. Look for patterns of codes that don't resolve after replacing the indicated sensors.

• P0351 - P0356: Ignition Coil Primary/Secondary Circuit Malfunction. If you have replaced the spark plugs and ignition coils but still get these codes, the fault may lie with the coil driver circuits inside the ECM.
🎬 Watch: How to diagnose Ford ignition coil primary codes
• P0600 - P061F: Internal Control Module codes. Codes like P2610 (ECM/PCM Internal Engine Off Timer Performance) point directly to a problem within the module itself.
• U-Series Codes: Codes starting with 'U' (e.g., U0100 - Lost Communication With ECM/PCM) indicate network communication problems, which can be caused by a failed ECM.
• Multiple Unrelated Codes: If the vehicle is storing codes for several different and unrelated sensors simultaneously, it can be a sign that the ECM's internal logic is failing.

Buying a Used ECM for Your Expedition, Navigator, or Transit

Purchasing a used OEM ECM is a cost-effective way to get your vehicle back on the road, but it requires careful attention to detail. A used original part is often more reliable than a new, cheap aftermarket unit due to superior build quality and guaranteed compatibility when correctly matched.

• Match the Part Number Exactly: The most critical step is to match the OEM part number from your original ECM. Part numbers like FL1A-12A650-AA or FL1Z-12A650-BA must be identical. Different numbers may look physically the same but contain different software or hardware for other vehicle options.
• Inspect for Physical Damage: When you receive the used ECM, check the case for any signs of being pried open, and look at the connectors for corrosion or bent pins. Water damage is a common cause of failure, so look for any signs of rust or water marks.
• Source from a Reputable Supplier: Buy from a seller that specializes in recycled auto parts and offers a warranty. This provides protection in case the part is faulty.
• Programming is Required: Understand that a used ECM is not a 'plug-and-play' part. It must be professionally programmed to your vehicle's VIN and security system. Factor the cost of programming into your total repair budget.

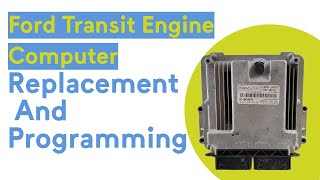

Programming and Installation Requirements: The Most Critical Step

You cannot simply swap the ECM in these vehicles and expect the engine to start. The ECM is a central component of Ford's Passive Anti-Theft System (PATS). If the security data in the ECM does not match the data in your keys and other vehicle modules (like the instrument cluster), the immobilizer will prevent the engine from starting.

Who Can Program the ECM?

• Ford/Lincoln Dealerships: Dealers have the proprietary Integrated Diagnostic Software (IDS) required to perform the necessary programming and security procedures. This is the most reliable, though often most expensive, option.
• Qualified Independent Shops: Many independent auto repair shops that specialize in Ford vehicles invest in a subscription to the Ford IDS or FDRS software and can perform the same programming as a dealer.
• Automotive Locksmiths: Some advanced automotive locksmiths have the tools and security credentials (like a NASTF membership) to perform a "parameter reset" and program new keys to the replacement ECM.

A DIY installation is not feasible for most owners due to the need for specialized software and security access. You can physically install the module yourself to save on labor, but the vehicle will need to be towed to a dealer or qualified shop for the final programming steps.

Vehicle-Specific Information

2015-2017 Ford Expedition & Lincoln Navigator

On the Expedition and Navigator, the ECM is typically located in the engine bay, often on the passenger side firewall or inner fender. It is usually protected by a plastic cover. No widespread recalls specifically for ECM failure were found for these models, but they are covered under some Technical Service Bulletins (TSBs) related to software updates for other components. For example, TSB 16-0093 addressed various DTCs on 2016 models that could be resolved with a PCM software update. Customer Satisfaction Program 16B32 also involved reprogramming the PCM to address issues with the electronic throttle body.

2015-2021 Ford Transit-150, 250, 350

For the Ford Transit, the ECM is also located in the engine compartment, on the passenger side. Some owners have reported no-start conditions related to internal ECM faults. In some cases, the ECM may be housed in a security cage with a shear bolt that must be carefully removed. Like the Expedition/Navigator, the Transit was also included in TSBs requiring PCM software updates to fix other system faults.

Cost to Replace the ECM

The total cost will be a combination of the part itself and the labor/programming fees. Programming costs can vary significantly by location and the type of shop performing the work.

Frequently Asked Questions (FAQ)

OEM Part Numbers

This list includes known compatible part numbers. Always confirm the number on your specific part before ordering a replacement.

• FL1A-12A650-AA
• FL1A-12A650-BA
• FL1A-12B684-AA
• FL1Z-12A650-AANP (replaces FL1Z-12A650-BA)
• FL1Z-12A650-BA
• RMFL1A-12A650-AA
