2003-2004 Audi A4 & A6 3.0L Engine Control Module (ECM): Your Guide to Replacement and Programming

Critical Information: Programming a Replacement ECM

Before you buy or install a replacement Engine Control Module (ECM) in your 2003 Audi A4 or 2004 Audi A6, you must understand the immobilizer system. These vehicles are equipped with an 'Immobilizer III' system, which electronically links the ECM, the instrument cluster, and your car keys. You cannot simply swap in a used ECM from another vehicle; the car will not start.

For owners buying a used ECM, you have two primary options:

1. ECM Cloning (Recommended): This is the most reliable and straightforward method. It involves sending your original (faulty) ECM along with a compatible used replacement to a specialized service. The service will copy the critical data—including the VIN, immobilizer code, and software coding—from your old module to the replacement one. The result is an identical 'clone' that will be plug-and-play, requiring no further programming once installed. This service typically costs between $100 and $275.
2. Immobilizer Defeat ('Immo Off'): Some services can reprogram the replacement ECM to completely disable its immobilizer function. The car will no longer check for a matched key, allowing the engine to run. This is often used for engine swaps or when the original ECM is too damaged to be cloned.

Dealer adaptation of a used module is generally not a practical option. The process is complex and requires security PIN codes for both the original car and the donor ECM, which dealers typically cannot or will not provide for used parts.

Symptoms of a Failing ECM

ECM failure can manifest in many ways, often mimicking other component failures. Diagnosis can be tricky, but here are common signs pointing to a faulty engine computer.

• Check Engine Light: A persistent Check Engine Light is a primary symptom. The light may come on erroneously, or it may be accompanied by a flood of seemingly unrelated fault codes.
• Engine Performance Issues: You may experience engine misfires, rough idling, stalling, hesitation, or a sudden loss of power. These occur because the ECM can no longer correctly manage the air-fuel mixture or ignition timing.
• Car Will Not Start: A completely failed ECM will prevent the engine from starting. The engine may crank but will not fire up because the computer isn't commanding the fuel injectors or ignition coils to work.
• Poor Fuel Economy: A sudden, significant drop in gas mileage can be a sign of an ECM fault, as the computer may be commanding an overly rich fuel mixture.
• Transmission Shifting Problems (Automatic): The ECM communicates with the Transmission Control Module (TCM). A faulty ECM can send incorrect data, leading to harsh shifting, delayed engagement, or other erratic transmission behavior.
• No Communication with Scan Tool: In cases of total failure, a diagnostic scan tool may not be able to communicate with the ECM at all.

Common Associated OBD-II Trouble Codes

While any number of codes can appear, a failing ECM often triggers codes related to the systems it controls or internal processor faults. A sudden appearance of multiple codes from this list can be an indicator.

• P0300-P0306: Misfire detected in random or specific cylinders.
• P0171, P0174: System too lean (Bank 1 or 2), indicating a fuel mixture problem.
• P0606: ECM/PCM Processor Fault. This code points directly to an internal failure of the module.
• U0100: Lost Communication with ECM/PCM.
• Codes related to major sensors, such as the Mass Airflow (P0101), Oxygen Sensors (P0130, P0133), or Fuel Injector Circuits (P0201).

Known Issues and Common Causes of Failure

Water Intrusion

The most common cause of failure for this ECM is water damage. The module is located in a plastic box within the engine bay's cowl (plenum) area, just below the windshield on the driver's side. The drains in this area can become clogged with leaves and debris, causing water to overflow and seep into the sealed ECM box, short-circuiting the electronics. Several Audi Technical Service Bulletins (TSBs) address issues with water leaks from clogged sunroof drains and seals, which can contribute to water in the vehicle's interior and electronics areas.

Internal Component Failure

Over time, internal electronic components can fail from heat cycles and vibration. This can include cracked solder joints or failure of the driver circuits that control the ignition coils. In some cases, a failed ignition coil can short out and send a voltage spike back to the ECM, damaging the corresponding driver circuit. These types of failures can sometimes be repaired by a specialist electronics rebuilder.

Buying a Used Engine Control Module (ECM)

A used OEM ECM is a cost-effective alternative to a new dealer part. Because these modules are sensitive electronics, here’s what to look for to ensure you get a good one.

• Verify the Part Number: It is absolutely critical to match the part number. The correct OEM part number for this application is 8E0909559R. The number 8E0909559RX indicates a factory-remanufactured unit, which is also compatible.
• Engine and Vehicle Compatibility: This ECM is specifically for the 3.0L V6 engine (engine code: AVK) found in the 2003 Audi A4 and 2004 Audi A6. It will not work with the 1.8T or other engines.
• 2003 Audi A4 VIN Split: For the 2003 Audi A4, this module is correct for vehicles with a VIN starting from 379996.
• Physical Inspection: When you receive the used module, inspect it carefully before installation. Look for any signs of corrosion on the pins of the electrical connectors. Check the case for any evidence that it has been opened, such as pry marks or broken seals. Avoid any unit that shows signs of water damage.
• Plan for Programming: Remember that a used ECM is not plug-and-play. You must arrange for a cloning service *before* you purchase. Confirm with the cloning service that they can work with the Bosch ME7.1.1 ECU type.

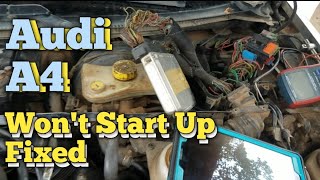

🎬 See how a pro clones data to a donor ECM.

Replacement Overview

Physically replacing the ECM is a straightforward job for a DIY mechanic with basic tools.

1. Location: The ECM is in a black plastic box in the driver-side cowl area, under the plastic rain tray/cowl cover.
2. Disconnect the Battery: Always disconnect the negative battery terminal before working on any electronic modules.
3. Access: You will need to remove the driver-side windshield wiper arm and the plastic cowl cover to access the ECM box.
4. Removal: The ECM box lid is held on by several T-30 Torx screws. Once the lid is off, the ECM itself is held in by a spring clip or strap. The large electrical connectors are removed by sliding their locking tabs.
🎬 Watch this step-by-step guide to removing your Audi's ECU.
5. Installation: Installation is the reverse of removal. Ensure the ECM box seal is in good condition to prevent future water intrusion.

Cost Comparison

The cost of replacing the ECM can vary dramatically depending on the path you choose. Here are typical price ranges:
