2013-2014 Audi A4, A5 & Allroad 2.0T ECM: A Guide to Failure, Component Protection, and Programming
This guide covers the essential steps for diagnosing, replacing, and programming the Engine Control Module (ECM) for the 2.0T Flex Fuel engines, focusing on the critical 'Component Protection' system.
- This ECM is protected by 'Component Protection' and requires mandatory professional programming with specialized online tools (ODIS/GEKO). A simple swap will not work.
- Audi dealers will not program a used ECM. You must use an independent Audi specialist or a mail-in programming service.
- You must match both the part number (8K5907115J or 8K5907115N) and the vehicle's 2.0T Flex Fuel engine code (CPMA or CPMB).
- A used ECM is a viable, cost-effective option ONLY if you have a plan for programming in place before you make the purchase.
Symptoms of a Failing ECM
A faulty Engine Control Module can cause a wide range of confusing and severe symptoms. Because the ECM controls so many different systems, failure can sometimes be misdiagnosed as a problem with an individual sensor or component.
- Complete No-Start Condition: The engine cranks but will not start. 🎬 Watch: Step-by-step diagnosis for an Audi no-start issue This happens when the ECM fails to command spark or fuel injection.
- Intermittent Stalling or Starting Issues: The vehicle may stall unexpectedly while driving or refuse to start intermittently, especially when hot.
- Check Engine Light with Multiple Unrelated Codes: A classic sign of ECM failure is the appearance of numerous fault codes for different sensors and systems simultaneously. This often points to a central processing problem rather than multiple individual part failures.
- Communication Errors: A diagnostic scan tool may be unable to communicate with the ECM, indicating a total failure of the module.
- Specific ECM-Related Fault Codes: Codes like P1612 (Engine Control Module - Incorrect Coding) or P1681 (Control Unit Programming Not Finished) are direct indicators of an ECM programming or internal fault.
- Reduced Engine Power or Performance: The vehicle may enter a "limp mode" with drastically reduced power as a self-preservation measure.
Pro Tip: The ECM for these vehicles is located in the plenum chamber, the area below the windshield wipers. This location is susceptible to water intrusion if the plenum drains become clogged with leaves and debris. Always check for signs of water damage or corrosion on the ECM connectors and housing, as this is a common cause of failure.
🎬 See this walkthrough on how to remove the ECMThe Critical Hurdle: Component Protection and Programming
Replacing the ECM in these Audi models is not a simple plug-and-play task. These vehicles are equipped with an advanced anti-theft system called Component Protection (CP).
When an ECM (or another key electronic module) is swapped from another vehicle, the system detects a VIN mismatch and activates Component Protection. This puts the module in a restricted mode, which can prevent the engine from starting or cause other systems to malfunction.
Warning: You cannot simply install a used ECM and expect it to work. It must be professionally programmed to your vehicle's VIN to remove Component Protection.
Who Can Program a Replacement ECM?
- Audi Dealers: Dealers have the required tools (ODIS software with online GEKO access) but will typically refuse to program a used ECM. They will only program a brand new module that you purchase from them at a significantly higher cost.
- Independent Specialists: Many independent European auto repair shops have invested in the same ODIS tools and online subscriptions. They are often willing and able to program a customer-supplied used ECM.
- Mail-In Services: Several companies offer mail-in programming. You send them your original ECM (if possible) and the replacement used ECM. They will transfer the necessary data or "virginize" the used module so it can be adapted to your car.
Buying a Used Engine Control Module (ECM)
A used OEM ECM is a cost-effective and reliable alternative to a new dealer part, provided you follow these crucial steps. Failure to do so will result in a part that cannot be used.
- Confirm Your Engine Code: This ECM is specifically for the 2.0L Turbocharged Flex Fuel engines. Your engine code, found on a sticker on the engine's front timing cover or through a VIN decoder, MUST be CPMA or CPMB. An ECM from a standard (non-Flex Fuel) 2.0T will not work correctly.
- Match the Part Number Exactly: The OEM part number on the replacement module must match your original. The primary part number is 8K5907115J. This was later superseded by part number 8K5907115N. Either of these will work.
- Secure a Programming Partner FIRST: Before you buy the part, contact local independent Audi specialists or mail-in services to confirm they can program a used ECM for your vehicle. Ask them about their process and cost. Do not purchase the part until you have a clear plan for programming.
- Inspect the Part: When you receive the used ECM, carefully inspect the case and electrical connectors for any signs of corrosion, water marks, or physical damage. A part from a flood-damaged vehicle will likely fail prematurely.
Known Issues, Recalls, and TSBs
While there are no direct recalls for the ECM on these specific models, there is a related recall that can cause confusion.
- NHTSA Recall 14V-667 (Audi Code 69K5): This safety recall affects 2013-2015 Audi A4, S4, and Allroad models. It concerns an improper software algorithm in the Airbag Control Module, not the Engine Control Module. The fix was a software update performed by the dealer. It is important not to confuse this with an ECM issue.
- Coolant Pump Recalls: Several recalls were issued for an overheating electric coolant pump on 2.0T engines, but this is a separate component from the ECM.
Cost Comparison for ECM Replacement
Prices can vary significantly based on the source of the part and labor rates. Programming is a separate, mandatory cost.
| Item | Estimated Cost | Notes |
|---|---|---|
| New OEM Part | $1,700 - $2,300 | Purchased from an Audi dealership. |
| Used OEM Part | $90 - $250 | Sourced from a salvage vehicle. |
| Remanufactured Part | $200 - $450 | A rebuilt original unit, often includes a core charge. |
| Shop Labor (Physical Swap) | $170 - $250 | Estimated time for removing the old unit and installing the replacement. |
| Programming Service | $300 - $1,200 | Mandatory cost from an independent specialist to remove Component Protection and code the module. | 🎬 Watch: How ODIS software is used to remove Component Protection
Frequently Asked Questions (FAQ)
What is Audi Component Protection?
Component Protection is an anti-theft feature used in modern Audi vehicles. When a major electronic module like the ECM, MMI, or gateway is replaced, the vehicle's system detects that the new part's serial number doesn't match the factory-installed one. It then locks out certain functions of that part until it is officially adapted to the vehicle online via a dealer or qualified specialist.
Can my regular mechanic install a used Audi ECM?
While most mechanics can physically swap the module, very few have the specific, expensive tools (Audi ODIS software) and online account access (GEKO) required to perform the online programming to remove Component Protection. You must find a shop that specializes in VW/Audi electronics.
Why is it critical to match the CPMA/CPMB engine code?
The CPMA and CPMB engines are Flex Fuel compatible, meaning they can run on high-ethanol fuel blends. They have different hardware (like an extra fuel injector) and require specific software in the ECM to manage the fuel system correctly. Using an ECM from a non-Flex Fuel engine will result in incorrect engine operation, fault codes, and potential damage.
Can I drive my car with a failing ECM?
It is strongly discouraged. Depending on the failure mode, you could experience sudden stalling, which is dangerous in traffic. If the engine is running poorly, you risk damaging other expensive components like the catalytic converter. In many cases, a complete ECM failure will prevent the car from starting at all.
Helpful Videos

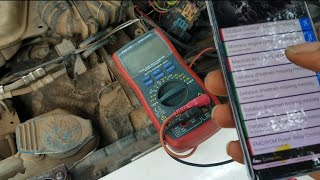

![audi a4 ECM not communicating car won't start Solved [ 01314 ]](https://img.youtube.com/vi/JePBr8vWQZE/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 8K5-907-115-J 8K5907115J 8K5-907-115-N 8K5907115N
For 2.0L Turbocharged Flex Fuel engines with engine codes CPMA or CPMB.
