2012 Audi A4 & A5 ECM Failure: A Guide to Part 8K2907115AG

Symptoms of a Failing Engine Control Module

ECM failure can be difficult to diagnose because its symptoms often mimic other problems. However, if your 2012 Audi A4 or A5 is experiencing several of the following issues simultaneously, the ECM might be the culprit.

• No-Start or Starts and Stalls: The engine may crank but refuse to start, or it might start for a second and then immediately shut off. This is a classic sign of an immobilizer issue, which is controlled by the ECM.
• Rough Idle and Stalling: The engine may run poorly, with a rough or "dieseling" idle, and may stall unexpectedly.
• Check Engine Light and EPC Light: A failing ECM will almost always trigger the Malfunction Indicator Lamp (MIL), also known as the Check Engine Light. The Electronic Power Control (EPC) light may also illuminate.
• No Communication with Scan Tool: If a diagnostic scan tool cannot establish a connection with the engine control module, it's a strong indicator that the module itself has failed. This may be accompanied by fault code 01314.
• Multiple Unrelated Fault Codes: A faulty ECM can send erroneous signals throughout the car's network, causing a variety of unrelated trouble codes to appear across different modules.
• Poor Engine Performance or Fuel Economy: You might notice a sudden drop in power, hesitation during acceleration, or a significant decrease in gas mileage.

Common OBD-II Codes Associated with ECM Failure

• P1610: ECU Defective
• P1612: Electronic Control Module Incorrect Coding
• P060A00: Internal Control Module Monitoring Processor Performance (Note: This can sometimes be a software glitch fixable with a dealer update).
• 01314: Engine Control Module - No Communication

Critical Requirement: ECM Programming & Immobilizer Adaptation

This is the most important thing to understand before you buy a replacement ECM. You cannot simply swap a used ECM into your 2012 A4 or A5 and expect it to work. The vehicle will not start.

The ECM is a core component of the vehicle's anti-theft immobilizer system. The replacement module must be electronically "married" to your specific vehicle's immobilizer and keys. This process is called adaptation. Without it, the immobilizer will prevent the engine from running as a security measure.

Your Options for Programming:

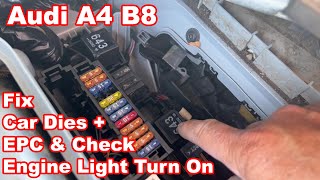

1. ECM Cloning Service: This is often the easiest and most cost-effective solution. You send your original (faulty) ECM and a compatible used ECM to a specialized service. They will extract the unique immobilizer data, VIN, and software coding from your old unit and transfer it to the replacement unit. The replacement ECM then becomes a "plug-and-play" part, requiring no further programming. 🎬 Watch: How the ECU cloning and programming process works This service typically costs a few hundred dollars.
2. Audi Dealership: A dealership can adapt a new or used ECM to your car using their proprietary ODIS (Offboard Diagnostic Information System) software, which has an online connection to Audi's servers. This is a reliable but often the most expensive option.
3. Independent Specialist: Some independent repair shops that specialize in European vehicles have advanced diagnostic tools (like Autel or VCDS) that can perform the immobilizer adaptation. However, not all tools can do this, so you must confirm with the shop that they have the specific capability for your vehicle's immobilizer generation.

Buying a Used ECM for Your 2012 A4 or A5

Purchasing a used OEM ECM is a smart way to save a significant amount of money, as new units are extremely expensive. However, you must be careful to buy the correct part and understand the steps involved.

• Match the Part Number EXACTLY: The only compatible part number for this specific application is 8K2907115AG. Do not use a module with a different number, even if it looks identical.
• Verify Engine and Transmission: This ECM is ONLY for the 2012 Audi A4 and A5 equipped with a 2.0L engine and a manual transmission. It will not work on vehicles with an automatic transmission.
• Physical Inspection: When you receive the used module, inspect it carefully. Look for any signs of corrosion on the pins of the electrical connectors. Check the case for any evidence that it has been pried open, which could indicate a previous failed repair attempt. Avoid any units with physical damage or signs of water exposure.
• Plan for Programming: Remember that the cost of the part is not the final cost. You must factor in the price of a cloning service or the labor for a shop to perform the immobilizer adaptation.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no major recalls specifically for the ECM on the 2012 A4 and A5, there are some related service items and common problems to be aware of:

• Water Ingress: The most common killer of these ECMs is water damage. The drains in the plenum area below the windshield can become clogged with leaves and debris, causing water to overflow into the electronics box that houses the ECM. Regularly cleaning these drains is critical preventative maintenance.
• TSB for DTC P046100: Audi issued a technical service bulletin for a software issue that could cause a false P046100 trouble code (Fuel level sensor, circuit range/performance) to be stored if the vehicle is refueled with the ignition on. This is fixed with an ECM software update at the dealer.
• Recall 19N4 / NHTSA 18V229: This safety recall concerns the auxiliary electric coolant pump on 2.0L TFSI engines, which could short circuit and pose a fire risk. While not an ECM issue, it involves the engine electronics and may cause an EPC light.
• Oil Consumption Lawsuit: The 2.0T engines in 2012-2014 A4 and A5 models were part of a class-action lawsuit regarding excessive oil consumption due to piston ring issues. While unrelated to the ECM, it's a well-known problem with this engine.

Cost Comparison

Replacing the ECM involves the cost of the part itself and the cost of programming. Here are typical price ranges:
