1995 Cavalier & Sunfire ECM: Understanding Engine Compatibility and PROM Swapping

Vehicle & Engine Compatibility: A Critical Warning

Symptoms of a Failing ECM

A bad ECM can cause a variety of confusing symptoms that often mimic other component failures. Diagnosing the issue correctly is key to avoiding unnecessary repairs. 🎬 Watch: Signs & Symptoms of a Failing ECU/ECM Common signs include:

• Check Engine Light: An illuminated Check Engine Light is a common symptom. Specific trouble codes pointing to internal module failure include P0600 (Serial Communication Link), P0601 (Internal Control Module Memory Check Sum Error), and P0602 (Control Module Programming Error).
• Engine Stalling or Misfiring: The engine may stall unexpectedly, run rough, stutter, or misfire. This can feel like a lack of power or hesitation during acceleration.
• No-Start Condition: One of the most severe symptoms is the engine refusing to start. The starter may crank, but the engine won't turn over.
• Poor Performance and Fuel Economy: You might notice a sudden drop in gas mileage or that the engine is running sluggishly.
• Erratic Transmission Shifting (Automatic Models): For vehicles with an automatic transmission, a failing ECM can cause harsh or delayed shifts.
• Failure to Communicate with Scan Tool: If a diagnostic scan tool cannot connect to the vehicle's computer, it's a strong indicator that the ECM itself has failed.

Buying a Used 1995 Cavalier or Sunfire ECM

Purchasing a used OEM ECM is a cost-effective solution, but there are critical details to ensure you get a compatible, working part. The most important aspect for this specific vehicle is not the ECM itself, but a small chip inside it.

The EPROM Chip is Everything

Unlike modern cars that require software flashing, the "programming" for these 1995 models is stored on a removable chip called an Electronic Programmable Read-Only Memory (EPROM), sometimes called a MEMCAL. This chip contains the specific instructions for your car's VIN, engine, transmission, and options.

How to Verify Compatibility and Inspect a Used ECM

1. Match the OEM Part Number: While the EPROM chip is the key, starting with a matching OEM service number is best practice. Known part numbers are 16196285, 16211893, and 88961138.
2. Physical Inspection: When you receive the used ECM, check the housing for any signs of physical damage, deep corrosion, or water intrusion. Pay close attention to the connector pins—they should be straight, clean, and free of any green or white corrosive buildup.
3. Check for Burnt Smells: A strong, burnt electronic smell is a clear sign of internal failure. Do not install a module that smells burnt.

ECM Location and Replacement Guide

The ECM on the 1995 Chevrolet Cavalier and Pontiac Sunfire is located in the engine bay, mounted behind the right front fender, near the EVAP canister. Accessing it requires removing the plastic splash shield in the passenger-side wheel well.

Step-by-Step Replacement and EPROM Swap

1. Disconnect the Battery: Always disconnect the negative battery terminal before working on any electronic components.
2. Access the ECM: Turn the steering wheel to the left to get more room in the passenger-side wheel well. Remove the clips or screws holding the plastic splash shield and pull it back to expose the ECM.
3. Remove the Old ECM: With the ignition OFF, carefully disconnect the electrical harness connectors. Then, unbolt the ECM from its mounting bracket.
4. Swap the EPROM Chip:
   • Place the old ECM on a clean, static-free surface. Remove the small access cover (usually held by two screws) to reveal the EPROM chip.
   • Gently pry up on both sides of the chip carrier using a small, flat tool to release it from its socket. Be very careful not to bend the pins.

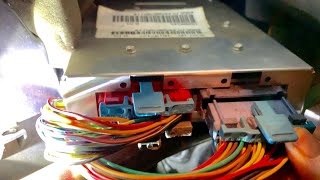

   🎬 See how to change an ECU and swap the PROM chip
   • Open the access cover on your replacement ECM. Note the orientation of the chip (there is a small notch on one end) and carefully press your original EPROM into the socket until it is fully seated.
   • Reinstall the access cover.
5. Install the New ECM: Bolt the replacement ECM (with your original EPROM inside) into the vehicle. Reconnect the electrical harnesses, ensuring they click securely into place.
6. Reconnect the Battery: Reattach the negative battery terminal. The vehicle should now start and run normally. No further programming or anti-theft relearn procedure is typically required for these models when the original EPROM is used.

Known Issues, Recalls, and TSBs

While there are no specific recalls for the Engine Control Module itself, several recalls for the 1995 Cavalier and Sunfire are worth noting:

• Ignition Switch Fire Hazard (Recall 02008): A significant recall was issued for a faulty ignition switch that could overheat and cause a fire, even with the engine off. This was due to high current flowing through the switch. The fix involves installing a relay to reduce the current. While not an ECM issue, electrical problems from this fault could potentially affect the ECM.
• Body Control Module (BCM) Issue: A recall was issued for a BCM problem that could cause the instrument panel backlighting to fail. This is a separate computer from the ECM.

Cost of Replacement

The cost to replace the ECM can vary significantly depending on the source of the part and whether you perform the labor yourself.
