2023 BMW M240i Driver Assist Sensor & Camera: A Guide to Failures and Replacement

Understanding the Driver Assist Systems in a 2023 BMW M240i

The 2023 BMW M240i can be equipped with several different levels of driver assistance technology, each using a specific combination of cameras and radar sensors. This is the single most important thing to understand when diagnosing or replacing these parts. A base model may only have a simple forward-facing camera for basic collision warnings, while a car with the Driving Assistant Professional package will have a more advanced KAFAS camera and a long-range radar sensor for features like Active Cruise Control with Stop & Go. Because the hardware is tied to the software and options ordered from the factory, you cannot simply swap parts between vehicles. The part number on the replacement sensor or camera must match the one on your original part.

Symptoms of a Failing Driver Assist Sensor or Camera

When a camera or radar sensor fails, your vehicle will typically alert you immediately with messages on the instrument cluster or iDrive screen.

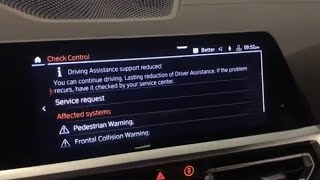

• "Driver Assistance Restricted" or "Reduced Driver Assistance" Message: 🎬 Watch: Common causes for this warning message This is the most common symptom. It indicates that one or more assistance features are unavailable due to a fault. The message may specify which systems are affected, such as frontal collision warning or lane departure warning.
• Features Unavailable: You may find that you cannot activate Active Cruise Control, or that the Lane Keeping Assistant no longer provides steering input.
• Intermittent Faults: Problems may appear only in certain conditions, such as in cold weather, heavy rain, or when driving into direct sunlight. This can sometimes be caused by a dirty windshield or bumper blocking the sensor's view, but persistent issues suggest a hardware problem.
• Instrument Cluster or Audio Problems: In some rare cases on the G42 platform (which includes the 2023 M240i), a KAFAS camera malfunction has been linked to other seemingly unrelated electronic issues, like the instrument cluster or audio system cutting out.
• Diagnostic Trouble Codes (DTCs): A professional scan tool will find specific fault codes stored in the vehicle's modules. A common code related to the KAFAS camera is 800ABF, which indicates an impaired field of vision. Another potential issue is a failure of the camera's built-in heating element, which is designed to keep the lens clear of fog or ice.
🎬 Watch: KAFAS camera heating element failure explained

Known Issues, TSBs, and Recalls

As of mid-2024, there are no specific recalls for the driver assistance cameras or radar sensors on the 2023 BMW M240i. The known recalls for this model year relate to issues like side airbag deployment and ECU software for the power windows.

However, BMW has issued a Technical Service Bulletin (TSB) SIB 66 08 23 that applies to the G42 M240i. This bulletin addresses customer complaints about the KAFAS camera system deactivating or displaying warnings for reasons that aren't obvious. It guides technicians to check for external factors like a dirty windshield, aftermarket suspension modifications, or wiring obstructions before replacing parts. It also notes that if the camera holder is not glued correctly to the windshield, the entire windshield may need to be replaced. Some owners of similar BMW models have also reported rattling noises from the camera assembly, which in some cases required a windshield replacement to fix a cracked mounting bracket.

Buying a Used Driver Assist Sensor or Camera

Purchasing a used OEM sensor or camera is a smart way to save a significant amount of money over a new part. However, due to the complexity of these systems, there are critical rules to follow.

• Match the Part Number Exactly: This cannot be overstated. There are numerous part numbers for cameras and sensors that look identical but have different internal software. Using the wrong part will result in it not working. The part numbers provided (e.g., 66315a589b4 for a radar sensor, or 66539495742 for a surround-view camera) must be cross-referenced with the number on your car's original part. Many dealer and parts sites recommend ordering by VIN to ensure a match.
• Physical Inspection: When you receive the used part, inspect it carefully. For cameras, check the lens for deep scratches or cracks. For radar sensors, ensure the housing is not cracked and that the mounting points are intact. On both, check that the electrical connector pins are straight and free of corrosion.
• Why Used OEM is Better: New OEM sensors are extremely expensive, often costing over $1,000 for the part alone. Aftermarket options for these safety-critical electronic modules are generally not available or are highly unreliable. A used OEM part that has been verified to be functional and has the correct part number provides the same performance and reliability as a new dealer part at a fraction of the cost.

Replacement and Calibration

Replacing a driver assist component is not a simple DIY task due to the mandatory calibration process. Failure to calibrate the new part will result in the system being inoperable and continuous error messages on your dash.

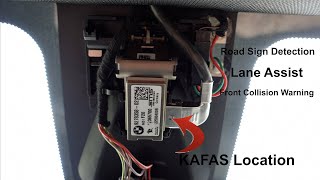

1. Physical Installation: The KAFAS camera is typically located in a plastic housing behind the rearview mirror. 🎬 See this video on KAFAS camera location After disconnecting the battery, these covers can be carefully removed with plastic trim tools to access and unclip the camera. A front radar sensor is usually located in the lower front bumper grille and may require bumper removal to access.
2. Mandatory Calibration: After the new part is installed, the vehicle's Advanced Driver Assistance System (ADAS) must be calibrated. This process uses special targets placed at precise distances from the vehicle and BMW's proprietary diagnostic software (ISTA+) to aim the sensor and teach it to see straight. Most independent shops cannot perform this procedure, as it requires expensive, specialized equipment and software subscriptions. Expect to take the vehicle to a BMW dealer or an ADAS calibration specialist for this final, critical step.

Cost Breakdown

Prices can vary based on the specific part number and vendor, but here is a general estimate:

Frequently Asked Questions (FAQ)
