Ram 2500 & 3500 Drag Link Failures (2013-2026): Recalls, Symptoms & Replacement

Symptoms of a Failing Drag Link

A worn or failing drag link on a Ram 2500 or 3500 will make its presence known through poor steering performance. Because this part is so critical to safety, you should address these symptoms immediately.

• Loose or Vague Steering: This is the most common symptom. You may notice excessive play in the steering wheel, where you can turn it an inch or more in either direction before the wheels respond. This makes the truck feel disconnected from the road and hard to keep straight.
• Steering Wander or Pulling: The truck may drift to one side of the road, requiring constant steering corrections to drive in a straight line. This happens because a loose drag link can't hold the wheel alignment steady.
• Clunking or Popping Noises: You might hear metallic clunking, popping, or knocking sounds from the front end, especially when turning at low speeds or driving over bumps. This is the sound of worn-out ball joints at the ends of the drag link moving around excessively.
• Uneven Tire Wear: A bad drag link allows the front wheels to go out of alignment, causing the edges of the front tires to wear down much faster than the center.
• "Death Wobble": While several worn components can cause it, a bad drag link is a primary contributor to the violent and frightening front-end shaking known as death wobble. This typically occurs at highway speeds after hitting a bump and can feel like the entire truck is shaking apart, forcing you to slow down drastically to regain control.

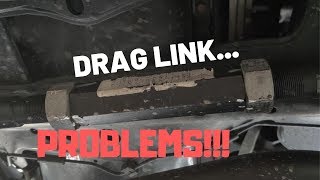

🎬 Watch: How to diagnose and fix steering play and death wobble

Known Issues: The 2013-2018 Drag Link Recall (NHTSA 19V-021)

A major safety recall (FCA campaign number V06, NHTSA campaign number 19V-021) was issued for the drag link on these trucks. This is the single most important issue to be aware of.

• Affected Vehicles: 2013-2018 Ram 3500 pickups, 2014-2018 Ram 2500 pickups, and 2014-2018 Ram 3500 Chassis Cabs.
• The Defect: The jam nut on the outboard side of the drag link's adjuster sleeve could loosen over time. If it loosened completely, the drag link could separate, resulting in a sudden and complete loss of steering control.
• The Official Fix: Dealers were instructed to inspect the jam nut's torque. If it was tight, they would apply a weld to permanently fix the nut to the adjuster sleeve. If the nut was loose or the threads were damaged, the entire drag link assembly would be replaced.

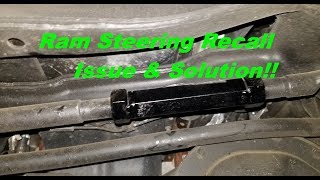

• The Controversy: Many owners and independent repair shops dislike the "weld fix." Welding the adjuster makes it impossible to perform future steering adjustments—specifically, centering the steering wheel after an alignment—without cutting the welds off first. This complicates future service. 🎬 See this video explaining the Ram drag link recall controversy Because of this, many owners opt to replace the original-style drag link with an updated design.

Buying a Used Drag Link: What to Check

Given the safety-critical nature of this part and the recall history, inspecting a used drag link is extremely important. A high-quality, low-mileage used OEM part with the updated design can be a great value, often superior to a cheap, new aftermarket part.

1. Identify the Design: First, determine if it's the old, recalled design or the new, updated one. The recalled design uses two large jam nuts on a threaded adjuster sleeve. The updated OEM and most quality aftermarket versions use a sleeve with pinch-bolt clamps instead of jam nuts. Prioritize the updated clamp-style design.
2. Inspect the Ball Joints: The drag link has a ball joint at each end. Hold the main bar and try to move the threaded stud of the ball joint by hand. There should be no looseness or "slop" at all. The joint should move smoothly but be very tight. Any detectable play means the joint is worn and the part should be rejected.
3. Check the Rubber Boots: Carefully inspect the rubber boots around each ball joint. They should be pliable, with no rips, tears, or cracks. A damaged boot allows grease to escape and contaminants like water and dirt to enter, which quickly destroys the joint.
4. Look for Damage: Check the main bar for any signs of being bent, dented, or heavily corroded. A bent drag link will make alignment impossible. Check the threaded areas for damage.
5. Verify Compatibility: This drag link is for 4-Wheel Drive (4WD) models only. It is compatible with both the 6.7L Cummins Diesel and 6.4L Hemi Gas engines.

Replacement Overview

Replacing the drag link is a feasible DIY job for someone with the right tools and experience, but it requires care due to its importance. An alignment is mandatory after the job is complete.

• Difficulty: 3 out of 5
• Tools Required: Large sockets/wrenches, torque wrench, a heavy hammer, and potentially a pickle fork or pitman arm puller to separate the tapered joints.
• General Steps:
  1. Loosen the nuts on the tapered studs at the pitman arm and the steering knuckle. Do not remove them completely.
  2. Strike the side of the pitman arm or knuckle firmly with a large hammer where the stud passes through. This shock will usually pop the tapered stud loose. A puller can also be used.
  3. Loosen the adjuster sleeve clamp or jam nuts.
  4. Before removing the old drag link, count the number of exposed threads or turns it takes to unscrew it. This helps you install the new one at roughly the same length to get the steering wheel close to straight for the drive to the alignment shop.
  5. Install the new drag link, setting it to the same length as the old one.
  6. Insert the new tapered studs into the pitman arm and knuckle.
  7. Torque all nuts and bolts to factory specifications.
  8. Get a professional front-end alignment immediately. 🎬 Watch: Step-by-step guide to replacing your Ram drag link This step is not optional.
