1994-1996 Cadillac DeVille Rear Window Regulator: Noises, Fitment & Replacement
This guide covers the common failure symptoms, replacement costs, and crucial compatibility details for the rear window regulator on 1994-1996 Cadillac DeVille models.
- The most common failures are caused by frayed cables and broken plastic pulleys, resulting in grinding noises or a dropped window.
- Replacement requires drilling out the original factory rivets; use bolts and nuts for the new installation.
- Verify the electrical connector on the motor before buying, as some early 1994 models may differ.
- Intermittent window operation is often caused by a broken wire in the door jamb, not a faulty regulator.
Symptoms of a Failing Rear Window Regulator
When a window regulator starts to fail, it usually provides several warning signs. Ignoring these can lead to the window becoming completely stuck or, worse, dropping inside the door.
- Grinding or Clicking Noises: Strange sounds like grinding, clicking, or chattering when you operate the window are a common first sign of trouble. This often points to a frayed cable or broken plastic gear inside the regulator assembly.
- Slow or Jerky Window Movement: If the window moves much slower than it used to, or if it stutters on its way up or down, the motor is likely straining due to resistance from a failing regulator.
- Window Drops Inside the Door: A loud pop followed by the window glass falling into the door is a sign of a complete regulator failure. This usually means the main lift cable has snapped.
- Crooked Window: If the glass tilts to one side as it moves, it means one of the regulator's lift points has broken or the glass has come off its track.
- Window Won't Stay Up: You might be able to pull the window up by hand, but it slowly slides back down. This indicates the mechanism can no longer hold the weight of the glass.
- No Movement at All: If you hear a click from the switch but the window doesn't move, the issue could be the switch, wiring, or a seized motor. However, if you hear the motor running but the window is stationary, the regulator's internal cables or gears are broken.
Compatibility Warning: The initial data for this part mentioned potential fitment issues with 1994 models. Research indicates that while the regulator assembly is generally consistent from 1994-1996, the electrical connector for the motor can vary. Some early 1994 models may use a different connector style. Always compare the connector on your original part with the photos of the replacement part before purchasing.
Buying a Used 1994-1996 DeVille Window Regulator
A used OEM (Original Equipment Manufacturer) window regulator can be a reliable and cost-effective solution. Factory parts often have better quality motors and more durable components than cheaper aftermarket alternatives. Here’s what to look for when buying a used unit.
What to Inspect:
- Check the Cables: Look closely at the steel cables. They should be tightly wound and free of any fraying, kinks, or rust. A frayed cable is the most common point of failure.
- Inspect Plastic Pulleys: Examine all plastic pulleys that the cables run on. Ensure they are not cracked, chipped, or broken. These parts become brittle with age.
- Examine the Motor Connector: This is critical. Verify the electrical connector on the motor matches your vehicle's harness. For 1994-1996 DeVilles, this is typically a square, 2-pin or 4-pin connector. Bring a photo of your original connector for comparison.
- Look for Water Damage: Check the motor housing for any signs of rust or corrosion. Water intrusion into the door can short out the motor.
Pro Tip: If possible, test the motor before you buy. You can do this with a 12V power source (like a car battery or a jump pack). Briefly apply power to the two pins in the motor's connector. Reversing the polarity should make the motor run in the opposite direction. A healthy motor will run smoothly without grinding noises.
Cost Comparison: New vs. Used
The cost to replace a rear window regulator can vary significantly based on the type of part you choose.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $405 - $428 |
| New Aftermarket | $30 - $250 |
| Used OEM | $50 - $120 |
| Shop Labor | $125 - $184 |
Replacement Overview & Difficulty
Replacing the rear window regulator on a 1994-1996 DeVille is a moderately difficult job that a DIYer with some experience can handle. The main challenge is that the original regulators are often held in place with rivets that must be drilled out.
- Difficulty Rating: 3 out of 5
- Estimated Time: 1.5 - 2.5 hours
Basic Steps:
- Disconnect the battery.
- Remove the interior door panel. This involves removing screws behind trim pieces and carefully prying off the panel.
- Peel back the plastic water shield to access the inside of the door.
- If the window is not already down, temporarily reconnect the switch to lower it and access the bolts that hold the glass to the regulator. Support the glass with tape or a wedge.
- Disconnect the electrical connector from the window motor.
- Drill out the heads of the rivets holding the regulator assembly to the door frame.
- Carefully maneuver the old regulator out through the access hole in the door.
- Install the new regulator, securing it with bolts and nuts instead of new rivets.

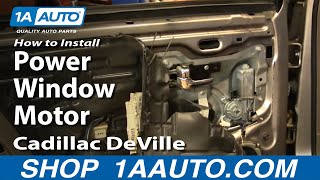

- Reassemble in reverse order. 🎬 Watch this step-by-step video on replacing a rear window motor
Known Issues, TSBs, and Recalls
Searches for the 1994-1996 Cadillac DeVille did not find any recalls or Technical Service Bulletins (TSBs) specifically related to the rear window regulators. The most common issues are general wear and tear of the cables and plastic components. While there were safety recalls for this generation of DeVille, they pertained to issues like fuel rails and hood latches, not the power windows.
Technical Specifications & Part Numbers
Part numbers can differ between the driver's (left) and passenger's (right) side. Always confirm the correct side before ordering.
| Position | Verified OEM Part Numbers |
|---|---|
| Rear Driver Side (LH) | 22144362, 25613982, 25649728 |
| Rear Passenger Side (RH) | 22144363, 22144365 |
Frequently Asked Questions (FAQ)
Can I just replace the motor instead of the whole regulator assembly?
Yes, in many cases the motor can be replaced separately. It is typically held to the regulator by three 10mm bolts. However, if your failure involves grinding noises or a dropped window, the problem is likely with the regulator's cables or pulleys, which requires replacing the entire assembly.
Do I have to use rivets to install the new regulator?
No, and it's not recommended. After drilling out the factory rivets, you can secure the replacement regulator using appropriately sized bolts, nuts, and washers. This makes any future repairs much easier.
My window works intermittently. Is it the regulator?
It could be, but intermittent operation is often an electrical issue. A common problem on these cars is a broken wire inside the rubber boot between the door and the car's body. Constant opening and closing of the door can cause the wires to fatigue and break. Check this before replacing the regulator or motor.
🎬 See how to fix intermittent rear window issuesWhat's the difference between the driver's side and passenger's side regulator?
The driver's side (Left Hand) and passenger's side (Right Hand) regulators are mirror images of each other and are not interchangeable. The mounting points and motor orientation are specific to each side of the vehicle.

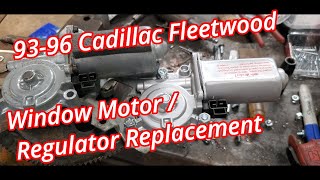

Helpful Videos
Technical Specifications
OEM Part Numbers: 22144362 22144363 22144365 25613982 25649728
Cable-driven power window regulator and motor assembly. Original installation uses steel rivets for mounting.
