2018-2024 BMW X3 (G01) Rear Door: Damage, Variants, and Replacement Guide
Your definitive guide to diagnosing, sourcing, and replacing a rear door on the G01-generation BMW X3 and F97 X3 M.
- Most used doors are sold as a bare "shell"; you must transfer your original glass, window regulator, latch, and interior panel.
- Compatibility is complex. The interior door panel varies based on audio system (Standard vs. Harman Kardon), sunshades, and upholstery. Verify these features before buying.
- A recall was issued for 2022-2024 models for faulty rear door locks that could allow the door to open unexpectedly.
- Professional painting is required for new shells or used doors that don't match your vehicle's paint code, adding significant cost.
Symptoms of a Damaged or Failing Rear Door
Failure of a rear door assembly typically falls into two categories: physical damage from an impact or the malfunction of internal components. Identifying the specific symptom is key to determining the correct repair.
- Visible Body Damage: Dents, dings, deep scratches, or a bent door frame are the most obvious signs of failure, usually resulting from a collision. Severe damage can compromise the door's structural integrity and ability to close or seal properly.
- Wind Noise or Water Leaks: A hissing or rushing sound at highway speeds points to a problem with the door's alignment or its weather seals. Water stains on the interior door panel or wet carpets are clear signs that the seals or the internal vapor barrier have failed.
- Door Fails to Latch, Lock, or Open: If the door won't close securely, pops open unexpectedly, or is difficult to open, the internal latch and lock actuator mechanism is likely at fault. This can be a serious safety issue. Some 2022-2024 models were recalled for faulty rear door lock modules that could allow the door to be unlatched with a single pull.
- Rattling or Grinding Noises: Rattles when closing the door or driving over bumps can indicate loose internal components, such as a window regulator cable or a loose interior panel. Grinding sounds often point to a failing window regulator motor.
- Window Malfunction: If the rear window does not raise or lower, moves slowly, or makes grinding noises, the window regulator or motor has likely failed.
Known Issues, TSBs, and Recalls for 2018-2024 BMW X3 Rear Doors
While generally reliable, the G01/F97 chassis has a few documented issues related to the rear doors.
- Recall for Rear Door Locks (2022-2024 models): BMW issued a non-compliance recall for approximately 40,736 X3 models because the rear door lock modules could allow the door to be unlatched and opened with a single action instead of two, violating a federal safety standard. Dealers will replace the rear door lock modules free of charge on affected vehicles.
- TSB for Wind Noise: BMW released a Technical Service Bulletin (TSB) addressing complaints of wind noise from the door areas at highway speeds. The bulletin outlines several potential causes, including improper door seal installation, door alignment, or issues with the side mirror housing.
- TSB for Door Rattle: A separate TSB addresses a rattle or buzzing sound when closing the doors, which may be caused by the window regulator drive cable vibrating against the inner door skin. The fix involves installing a small piece of sound-insulating foam.
- Owner Complaints: Forum discussions include owners reporting various rattles from the door panel or B-pillar area, as well as intermittent issues with the Comfort Access keyless entry system on the rear doors.
Warning: A door that does not latch securely is a critical safety hazard and may be illegal to drive with. If your door can pop open while driving, the vehicle should not be operated until it is repaired.
Buying a Used Rear Door Assembly: What to Inspect
Purchasing a used OEM door is an excellent way to save money, but careful inspection is crucial to ensure you get a quality, compatible part. The biggest challenge is navigating the numerous variations in internal components.
Shell vs. Complete Assembly
First, clarify what you are buying. Most used doors are sold as a "door shell", which is the painted metal structure only. A "complete assembly" should include the glass, window regulator, latch, and wiring, but even these often exclude the interior trim panel. Always assume you will need to transfer components from your old door to the replacement shell unless the seller explicitly states otherwise.
Physical Inspection
- Check for Hidden Repairs: Look for signs of previous bodywork. Check for uneven paint texture, overspray on seals, or variations in color. Use a refrigerator magnet to check for thick areas of body filler (Bondo), as the magnet won't stick well to these areas.
- Inspect for Rust: Carefully check the bottom seam and drain holes of the door. This is where water can collect and cause rust from the inside out.
- Verify Structural Integrity: Ensure the door frame is straight, especially the upper window frame. Check all hinge and latch mounting points for stress cracks or damage.
Compatibility Check: The Most Important Step
While the outer metal shell is generally the same for all 2018-2024 X3 (G01) and X3 M (F97) models, the internal components and interior door panel can vary significantly. It is often easiest to buy a bare shell of the correct color and transfer all of your original parts.
Pro Tip: To find your vehicle's exact paint color code, check the sticker on the driver's side door jamb. Provide this code to the seller to find a color-matched door, but be aware that sun exposure can cause slight variations between your car and the donor vehicle.
If you are buying a door that includes the interior panel, you must verify the following options on the donor vehicle match your own:
| Feature | Variations | What to Check |
|---|---|---|
| Audio System | Standard HiFi vs. Harman Kardon Surround Sound | The Harman Kardon system has a different, often metallic-finished, speaker grille on the door panel compared to the plain black plastic grille of the standard system. |
| Sunshades | With or without manual rear window sunshades. | Check for the presence of the pull-up sunshade and the corresponding hook slots at the top of the window frame. |
| Ambient Lighting | Presence and style of the interior ambient light strips. | Ensure the donor door has the same ambient lighting package as your vehicle. |
| Upholstery & Trim | Different materials (e.g., Sensatec, Vernasca Leather, Merino Leather) and colors (e.g., Black, Mocha, Tartufo). | The material and color must match your existing interior exactly. Also check the decorative trim strip (e.g., wood, aluminum). |
Replacement Guide
Replacing a rear door is a moderately difficult task best suited for an experienced DIYer or a professional. The main challenges are the weight of the door, the need to transfer all internal components, and the final alignment. A helper is strongly recommended.
- Difficulty: 4 out of 5
- Estimated Time: 3-5 hours (for shell swap and component transfer)
- Tools Required: Socket set, Torx bit set, plastic trim removal tools, a helper or door support stand.
General Replacement Steps:
- Disconnect the Battery: To prevent electrical issues, always disconnect the negative battery terminal first.

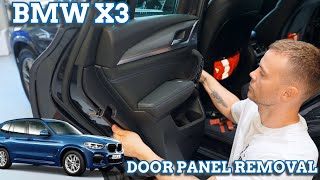

- Remove Interior Door Panel: 🎬 Watch this step-by-step BMW X3 door panel removal guide Use plastic trim tools to carefully pry off trim pieces covering screws. Remove all screws, then use a panel tool to release the clips around the perimeter of the door.
- Disconnect Components: Disconnect the wiring harness connectors for the speaker, window switch, and door module. Detach the Bowden cable for the interior door handle.
- Transfer Components (if swapping a shell): At this point, you will need to move the window glass, regulator, latch, speaker, and wiring harness from the old door to the new one. This is the most time-consuming part of the job. Be sure to carefully remove and reinstall the vapor barrier to prevent future water leaks.
- Unbolt and Remove Old Door: With a helper supporting the weight, unbolt the door check strap and then the main hinges from the B-pillar. Lift the old door away.
- Install and Align New Door: With your helper, position the new door and loosely install the hinge bolts. Adjust the door until the body lines are even and the gap is consistent all around. It should close smoothly without slamming. Once aligned, tighten the hinge bolts to the proper torque specification.
- Reconnect and Reassemble: Reconnect the wiring harness, re-install the interior door panel, and reconnect the battery. Test all functions (window, lock, speaker) to ensure everything works correctly.
Cost Comparison: New vs. Used vs. Aftermarket
The cost of a replacement door can vary dramatically based on the source.
| Part Source | Estimated Cost | Notes |
|---|---|---|
| New OEM | $1,100 - $1,500 | This is for a bare, unpainted door shell from a BMW dealer. Does not include any components, paint, or labor. |
| New Aftermarket | $150 - $300 | These are typically just the outer door 'skin' for rust or damage repair, not a complete shell. They require extensive, professional bodywork to install. |
| Used OEM | $400 - $800 | A bare shell in good, used condition. Price varies based on color and condition. A complete used door can exceed $1,200. |
| Shop Labor (Installation) | $450 - $750 | This is for the labor to swap the door and transfer components. It does NOT include the cost of painting. |
| Shop Labor (Painting) | $400 - $800+ | The cost to professionally paint a new door shell to match your vehicle's color. |
Frequently Asked Questions (FAQ)
Can I use a rear door from a BMW X3 M (F97) on my standard X3 (G01)?
Yes, the basic metal door shells are interchangeable between the G01 X3 and the high-performance F97 X3 M of the same generation. However, you must pay close attention to the interior panel, as the trim, speaker grilles, and upholstery will likely be different. Plan to swap your original interior panel onto the replacement door.
Do I need to reprogram the car after replacing the rear door?
If you are simply swapping the door shell and transferring all of your original electronic components (like the door control module and window motor), no programming is required. If you are using a replacement door that comes with its own electronic modules, coding may be necessary to ensure all features, like the window and locks, function correctly with your vehicle.
Is it better to repair a dented door or replace it?
For minor dents and dings, paintless dent repair (PDR) is often the most cost-effective solution. For larger dents, deep creases, or damage that has compromised the paint or a body line, replacement with a used OEM door shell is often cheaper and provides a better result than extensive bodywork and repainting.
Why is there wind noise after my door was replaced?
Wind noise after a door replacement is almost always due to improper alignment or a damaged/improperly seated weather seal. The door needs to be adjusted so it sits perfectly flush with the body, creating even pressure on the seal all the way around. Check that the rubber seals are not torn or twisted.
Helpful Videos
Technical Specifications
OEM Part Numbers: 41-00-7-414-342 41-00-7-465-533 41-00-7-465-534 41007414342 41007414343 41007465533 41007465534 7465533
Fits G01 chassis (2018-2024 BMW X3) and F97 chassis (2019-2024 BMW X3 M). Shells are primarily constructed from aluminum and steel.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
