2018-2020 Jaguar E-Pace Door Wiring Harness: Solving Electrical Gremlins and Part Number Puzzles

Symptoms of a Failing Door Wiring Harness

A faulty door wiring harness in a 2018-2020 Jaguar E-Pace typically causes intermittent and frustrating electrical problems. The issues are usually confined to a single door. The most common cause of failure is wires breaking inside the flexible rubber boot between the door and the body due to repeated opening and closing.

• Intermittent or Dead Components: The power window, door lock, power mirror, or speaker on one door may work sporadically or stop working entirely. For example, the speaker might cut out when you open the door.
• Inconsistent Door Locking: One door may fail to lock or unlock with the central locking system, while the others work fine. You might hear clicking or grinding noises as the lock actuator struggles with inconsistent power.
• "Door System Fault" Warning: The dashboard may display a specific warning message indicating a problem with a door's electronics.
• Multiple Unrelated Issues in One Door: When the window, lock, and mirror all start acting up on the same door, it's a strong sign that the main harness supplying power and data to all of them is the culprit, rather than three separate components failing at once.

Known Issues, TSBs, and Recalls

While there are no specific recalls for the door wiring harness on the 2018-2020 E-Pace, a highly relevant Technical Service Bulletin (TSB) points to potential wiring vulnerabilities from the factory.

TSB #H114: Unsealed Wire Splices and Water Damage

For some 2018 E-Pace models, Jaguar issued TSB #H114 (also listed as UPS4118-4BN) regarding unsealed wire splices in the passenger compartment and rear axle harnesses. This factory defect can allow moisture to get into the wiring, causing corrosion and a wide range of confusing electrical problems. While this TSB doesn't specifically name the door harness, it highlights a known issue with wiring integrity on these vehicles. Forum users have reported that water damage can be a cause of door lock system failure. 🎬 Watch: Troubleshooting Jaguar passive entry and door wiring If you are experiencing electrical issues, especially after rain, it is worth checking for dampness in the vehicle's footwells.

Variant Differences: Matching the Correct Part Number

You cannot use a harness from a vehicle with different options. Features like the Meridian sound system, keyless entry, power-folding mirrors, surround-view cameras, and park assist all require specific wiring and connectors. Using the wrong harness will result in non-working features or error codes.

For example, the verified OEM part number J9C314632 is for the Right Rear Door. Other doors will have different part numbers. Furthermore, part numbers for the front harness can vary based on options like:

• J9C13019: For vehicles without surround view, but with park assist.
• J9C13021: For vehicles without surround view and without park assist.
• J9C13022: For vehicles with surround view and with park assist.

You must find the part number on your original harness to ensure you purchase the correct replacement.

Buying a Used 2018-2020 E-Pace Door Harness

A used OEM harness is an excellent, cost-effective solution, as it guarantees the correct fit and connector types that cheap aftermarket parts often lack. However, careful inspection is key to getting a good part.

Physical Inspection Checklist

• Verify the Part Number: This is the most critical step. Locate the white tag on the harness and match the part number exactly to your original. Do not buy a harness based on a visual comparison alone.
• Inspect the Door Hinge Boot: This is the most common failure point. Squeeze and bend the flexible rubber boot. It should be soft and pliable. Avoid any harness where the boot is stiff, cracked, or torn, as this indicates the wires inside have been exposed to stress and the elements.
• Check All Connectors: Carefully examine every plastic connector. Look for cracks, broken locking tabs, or any signs of melting or heat damage. Ensure the metal pins inside are straight and not corroded. A single damaged connector can make the entire harness unusable.
• Look for Previous Repairs: Be wary of non-factory repairs. Signs like electrical tape wrapped around individual wires or mismatched butt connectors suggest the harness may have been previously damaged and could be unreliable.

Replacement Overview

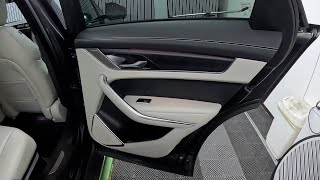

Replacing the door wiring harness is a moderately difficult job that is feasible for a DIY mechanic with patience. The main challenge is removing the interior door panel without 🎬 Watch: How to remove the front door panel damaging the clips or trim.

1. Disconnect the Battery: Before starting any electrical work, disconnect the negative terminal of the vehicle's battery.
2. Remove the Door Panel (Door Card): This typically involves removing several hidden screws. Look for screws behind small trim pieces near the door handle and armrest, and underneath the door itself. Once the screws are out, use a plastic trim tool to carefully pry the panel away from the door frame to release the plastic clips.
3. Disconnect Components: Unplug the old harness from the window switch, door lock actuator, speaker, and any other components. Disconnect the main plug where the harness passes through the door jamb into the car's body.
4. Install the New Harness: Route the replacement harness through the door, connecting all components. Ensure the large rubber grommet in the door jamb is seated correctly to prevent water from entering.
5. Test and Reassemble: Reconnect the battery and test all door functions (windows, locks, mirrors, speakers) before reinstalling the door panel.
