2018-2023 Wrangler & Gladiator Center Window Switch: Fixing Peeling Buttons & Electrical Faults
This guide covers the common causes of failure for the central window switch panel in the 2018-2023 Jeep Wrangler (JL) and 2020-2023 Jeep Gladiator (JT), from physically deteriorating buttons to complete electrical failure.
- The most common failure is the physical peeling and crumbling of the rubber on the switch buttons, which is a cosmetic issue.
- Replacement is extremely easy, requiring only a trim tool to pop the assembly out of the dash. The job takes about 15 minutes.
- When buying used, prioritize the physical condition of the buttons and ensure you get the correct version for a 2-door or 4-door model.
- The correct OEM part number series is 68290764xx. Suffixes like AC, AD, AE, and AF are revisions, with later letters being newer.
Common Symptoms of a Failing Window Switch Panel
The center window switch in the Jeep Wrangler JL and Gladiator JT can fail in several ways, ranging from cosmetic annoyances to complete electrical malfunction.
1. Peeling or Crumbling Switch Buttons
The most widely reported issue with this switch panel is the physical deterioration of the rubberized coating on the window toggle switches. Over time, the edges of the switches can become brittle, chip, peel, or feel sticky. While this is primarily a cosmetic problem, it can make operating the switches feel strange and unpleasant. Many owners report this wear happening within just a few years of ownership. Some believe it may be accelerated by contact with hand sanitizers or lotions.
2. Intermittent or Non-Functional Windows
Electrical issues are less common but more serious. Symptoms can include:
- One or more windows stop working: A single window or a pair of windows (like both rears) may become unresponsive from either the main switch panel or the rear switches (if applicable).
- Intermittent operation: All windows may work sporadically, failing and then starting to work again without warning. This can sometimes be traced to a loose connection, a failing circuit breaker, or an internal fault in the switch assembly.
- Window operates in one direction only: A switch might fail in a way that allows it to lower a window but not raise it.
- Dead USB or 12V Port: Since the power and media ports are integrated, a failure within the panel's circuitry can cause these to stop working.
Pro Tip: If your windows stop working after you've had the doors off, the first thing to check is the main door wiring harness connectors. Ensure they are fully seated and that no pins are bent or pushed back. This is a common cause of window issues and is not a fault of the switch itself.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
As of mid-2024, there are no specific recalls or Technical Service Bulletins (TSBs) from FCA/Stellantis that directly address failure or deterioration of the center window switch panel. The peeling button issue is widely considered a wear-and-tear item, though it may be covered under the vehicle's basic 3-year/36,000-mile warranty.
It is worth noting that a recall was issued (NHTSA ID: 24V-652) for the instrument panel cluster in these vehicles for potential short circuits, but this does not involve the window switch panel.
Buying a Used Door Window Switch: What to Inspect
A used OEM switch is often a great value, but careful inspection is key. Because the most common failure is physical wear, you can easily spot a good part.
- Inspect the Switch Surfaces: This is the most important check. Look closely at the rubberized coating on all the window toggles. Reject any switch that shows signs of peeling, bubbling, deep scratches, or stickiness. A part with pristine buttons will look and feel new for a fraction of the price.
- Verify the Button Configuration: Jeep uses different switch panels for 2-door and 4-door models. Ensure the part you are buying matches your vehicle. A 4-door Wrangler or Gladiator requires a "5-gang" switch with four window toggles and a lock button. A 2-door Wrangler will have only two window toggles.
- Check the Part Number: The most common OEM part number series is 68290764, followed by a two-letter suffix like AC, AD, AE, or AF. These suffixes indicate revisions, with later letters being newer versions. A part with a number like 68290764AF is a direct replacement for earlier versions.
- Examine the Ports: Look inside the 12V and USB ports. Check for any signs of corrosion, foreign debris, or physical damage to the contacts.
Cost of Replacement
The cost to replace the center window switch panel can vary significantly depending on the type of part you choose.
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | $110 - $160 | Purchased from a Mopar dealer or official online store. Offers perfect fit and finish. |
| New Aftermarket | $50 - $165 | Prices vary wildly. High-end brands like Duralast can be more expensive than OEM, while cheaper online options are available but may have quality issues. |
| Used OEM | $60 - $120 | Offers the best value if you can find one in excellent cosmetic condition. |
| Shop Labor | $65 - $95 | Replacement is very fast, typically taking less than 30 minutes. |
Replacement Guide (Difficulty: 1/5)
Replacing the center window switch panel is one of the easiest repairs you can do on a Wrangler or Gladiator. It requires minimal tools and time.
Estimated Time: 15 minutes
Tools Needed: Plastic trim removal tool
- Protect the Dash: Place a microfiber towel or painter's tape on the dash areas around the switch panel to prevent scratches.
- Pry Out the Panel: Insert a plastic trim removal tool into the seam between the switch panel and the surrounding dashboard trim. Gently pry outwards. The entire assembly is held in by several metal clips and will pop out.
- Disconnect the Wiring: Once the panel is loose, pull it out enough to access the electrical connectors on the back. There will be several plugs for the switches, USB port, and 12V outlet. Press the release tab on each connector and pull it straight out.
- Install the New Panel: Connect the wiring harnesses to the back of the new switch panel. The plugs are keyed and will only fit in their correct sockets.
- Test Functionality: Before snapping the panel back in, turn the vehicle's ignition to the 'ON' position and test every window switch, the window lock, the USB port, and the 12V outlet to ensure everything works correctly.
- Seat the Panel: Align the panel with the opening in the dashboard and press it firmly into place. You will hear and feel the clips snap in, securing it.
Frequently Asked Questions (FAQ)
Why are the window switches in the center of the dash?
The switches are located in the center console because the doors on the Jeep Wrangler and Gladiator are designed to be easily removed. Placing the main controls on the dash ensures they remain with the vehicle when the doors are off.
Can I replace just the peeling rubber button cap?
No, the individual switch toggles are not sold separately by Mopar. However, some aftermarket companies sell adhesive-backed aluminum covers that can be placed over the existing switches to hide the damage and change the appearance. For a true fix, the entire switch panel assembly must be replaced.
Do I need to disconnect the battery to replace the switch?
While it is always the safest practice to disconnect the negative battery terminal before working on any electrical component, it is not strictly necessary for this simple swap. The circuits are low voltage and the ignition will be off. The replacement can be done safely without disconnecting the battery.
Will a switch from a Gladiator fit a Wrangler?
Yes, as long as the door configuration matches. A switch panel from a 4-door Gladiator is identical to one from a 4-door Wrangler. The same is true for 2-door models. The part is shared across both the JL and JT platforms.

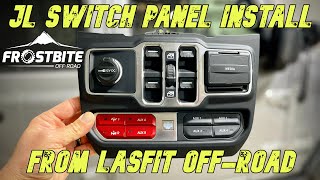

Helpful Videos
Technical Specifications
OEM Part Numbers: 68290764AF 68290764AE 68290764AD 68290764AC
The assembly is a single bezel containing window switches (2 or 4), a window lock button, a 12V power outlet, and a USB media port.
