2005-2008 Pontiac Vibe & Toyota Matrix Door Mirror Guide

Symptoms of a Failing Door Mirror

When a door mirror begins to fail, the symptoms are usually straightforward. Here’s what to look out for:

• Power Adjustment Fails: The most common issue is a failure of the power adjustment feature. You might hear the motor whirring but see no movement in the glass, or there might be no sound or movement at all. This can happen to one or both mirrors. If neither mirror works, the problem is more likely the control switch or a fuse.
• Loose or Vibrating Mirror Glass: The mirror glass itself can become loose from its backing plate, causing it to vibrate excessively while driving. In some cases, the internal plastic clips that hold the motor's adjustment rods break, causing the glass to detach completely.
• Physical Damage: Impacts in parking lots or from road debris can crack or shatter the mirror glass or the plastic housing. While the mirror might still function, a cracked housing can allow water to enter and damage the internal motor.
• Floppy Mirror Housing: The entire mirror assembly is designed to fold towards the car. Over time, the pivot mechanism can wear out, causing the whole housing to become loose and floppy. This will lead to significant vibration at speed and can cause the mirror to shift out of position.

Buying a Used 2005-2008 Vibe Door Mirror

Purchasing a used OEM door mirror is an excellent way to save money while getting a part that fits perfectly. Here’s what you need to know before you buy.

The Vibe and Matrix Connection

The single most important thing to know is that the 2005-2008 Pontiac Vibe is mechanically identical to the 2005-2008 Toyota Matrix. They were built in the same factory as a joint venture between GM and Toyota. This means a door mirror from a 2005-2008 Toyota Matrix will fit your Pontiac Vibe perfectly, including the electrical connector and mounting bolts. This dramatically expands your options when searching for a used part.

Compatibility Check

What to Inspect on a Used Mirror

• Check the Pivot Joint: Firmly grasp the mirror housing and try to fold it. It should move with firm resistance and hold its position without any wobbling or looseness. A floppy pivot is a sign of wear and the mirror will vibrate on the road.
• Inspect the Housing and Glass: Look for any cracks, deep scuffs, or signs of previous repair on the plastic housing. Check the mirror glass for scratches, discoloration, or delamination (where the reflective coating peels away).
• Examine the Electrical Connector: Look at the pins inside the electrical connector. They should be straight and free of any green or white corrosion.
• Verify the Paint/Finish: Most Vibe mirrors came with a standard gloss black plastic finish that does not require painting. Some higher trims may have had color-matched mirror caps. Be sure the used part you are buying has a finish you are happy with, as painting it will add cost.

Cost of a 2005-2008 Pontiac Vibe Door Mirror

Installation Guide

Replacing the door mirror on a 2005-2008 Vibe is a straightforward DIY project. Many owners find they can complete the job without removing the entire interior door panel.

• Difficulty: 2 out of 5
• Estimated Time: 30-45 minutes
• Tools Needed: 10mm socket or wrench, trim removal tool, Phillips head screwdriver.

Step-by-Step Process

1. Remove Interior Trim: On the inside of the door, directly opposite the mirror, there is a small triangular plastic cover. On some models, this piece houses the tweeter (a small speaker). Use a trim removal tool to gently pry this cover off.
2. Disconnect Wiring: If you have a tweeter, disconnect its wire. The mirror's main electrical connector is located just below this opening. You may need to carefully peel back the plastic weather barrier to access it. Press the release tab and unplug the connector.
3. Remove Mounting Nuts: You will see three 10mm nuts that hold the mirror to the door frame. Remove these nuts. Be careful not to drop them down inside the door. Hold onto the outside of the mirror as you remove the last nut.
4. Install New Mirror: Carefully guide the new mirror's studs and electrical wire through the holes in the door. Hand-tighten the three 10mm nuts to hold it in place, then snug them down with a wrench. Do not overtighten, as you could crack the plastic housing.
5. Reconnect and Test: Plug in the new mirror's electrical connector. Before reassembling everything, turn the car's ignition on and test the power adjustment functions to ensure the new mirror works correctly.
6. Reassemble: Snap the triangular trim piece (and tweeter, if equipped) back into place.

Frequently Asked Questions

Technical Specifications and Part Numbers

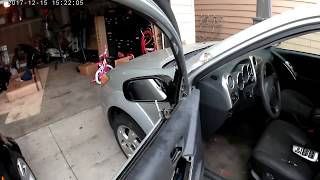

These part numbers are for the standard power, non-heated mirrors. Left (LH) is the driver's side, 🎬 Watch this driver side mirror replacement on a 2007 Vibe. and Right (RH) is the passenger's side.

Note: Part numbers can supersede over time. Always verify fitment with the seller using your vehicle's information.
