2002-2006 Mazda MPV Door Mirror: Power vs. Heated and Common Failures
This guide covers common problems, replacement costs, and how to choose the right used door mirror for your 2002-2006 Mazda MPV, focusing on the critical power-adjustable and heated options.
- The most critical compatibility check is verifying if your MPV has heated or non-heated mirrors before buying a replacement.
- If only one mirror fails to adjust, the problem is likely the motor in that mirror; if both fail, the control switch or fuse is the probable cause.
- Replacement is a simple DIY task, typically requiring only the removal of a small interior trim piece to access three mounting nuts.
- A used OEM mirror is often a better choice than a cheap aftermarket one, offering superior fit and less vibration.
Symptoms of a Failing Door Mirror
Problems with the door mirror on a 2002-2006 Mazda MPV can be electrical or physical. Identifying the specific symptom can help you diagnose the issue correctly.
1. Mirror Glass Will Not Adjust
If the mirror glass doesn't move when you use the interior control switch, the problem is likely electrical. First, check the mirror selector switch to ensure you have selected the correct mirror (left or right). If the other mirror adjusts properly, the issue is likely with the failed mirror's motor or the wiring to it. If neither mirror works, the problem is more likely to be the control switch itself or a blown fuse. 🎬 Watch this guide to diagnose and fix broken power mirrors. In some cases, the contacts within the switch can wear out or become corroded.
2. Physical Damage or Looseness
The most common reason for replacement is physical damage from an impact. This can result in a cracked mirror housing, broken glass, or the entire assembly becoming loose and vibrating at speed. The internal pivot mechanism can also wear out over time, causing the mirror to be floppy and not hold its position.
3. Heated Mirror Not Working
For models equipped with heated mirrors, a failure of the heating element will result in the mirror not clearing frost, ice, or fog. This feature is tied to the rear window defroster; if the rear defrost works but the mirror doesn't clear, the heating element in the mirror glass has likely failed. There is no separate button for the heated mirrors.
Compatibility Warning: The most critical factor for this part is the presence of the heating feature. The non-heated driver's side mirror is part number LD4769180. Heated mirrors use a different wiring connector. Plugging a non-heated mirror into a vehicle wired for heat (or vice-versa) will result in a loss of function. Always verify your vehicle's original equipment before purchasing.
Buying a Used 2002-2006 MPV Door Mirror
Purchasing a used OEM door mirror is often the most cost-effective solution. Since these parts are no longer in high production, a recycled original part can offer better fit and quality than a new, cheap aftermarket alternative. Here’s what to inspect:
- Verify Features: This is the most important step. Confirm if your original mirror is heated. The easiest way is to check your rear defroster button; if it's on and your mirror clears frost, you have heated mirrors. When buying used, you must match this feature.
- Check the Electrical Connector: Ask the seller for a clear photo of the electrical plug. Compare the pin configuration to your original mirror's plug to ensure they match. This is the best way to confirm compatibility between heated and non-heated versions.
- Inspect the Housing: Look for any cracks, deep scuffs, or stress marks, especially around the three mounting points where the bolts go through. This is a common failure point after an impact.
- Test the Pivot Joint: If buying in person, manually fold the mirror. It should move smoothly but have enough resistance to hold its position firmly. A loose, floppy joint means the internal spring is worn out.
- Examine the Glass: Check the mirror glass for cracks, chips, or any signs of delamination (a bubbling or distorted look around the edges).
Known Issues, Recalls, and TSBs
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) for the door mirrors on the 2002-2006 Mazda MPV. The most common owner-reported issue is the failure of the power adjustment switch on the driver's door panel, which can prevent one or both mirrors from adjusting. In some cases, cleaning the switch contacts or replacing just the switch can resolve the problem without needing to replace the entire mirror assembly.
Replacement Overview
Replacing the driver's side door mirror is a straightforward job that most DIY mechanics can complete in under an hour.
- Access the Mounting Bolts: The mounting hardware is located inside the vehicle. You must first remove the small triangular plastic trim piece (the sail panel) located on the interior of the door, directly opposite the mirror. This piece usually pops off with gentle prying.
- Disconnect Wiring: Once the trim is off, you will see the electrical connector for the mirror. Unplug it by pressing the release tab.
- Remove the Old Mirror: There are three nuts or bolts (typically 8mm or 10mm) that secure the mirror to the door frame. While supporting the mirror from the outside so it doesn't fall, remove these fasteners.
- Install the New Mirror: Guide the new mirror's wiring harness through the hole and position the mirror. Hand-tighten the nuts, then connect the electrical plug to test the power functions before fully tightening everything. Re-install the interior trim piece. 🎬 See this step-by-step walkthrough for replacing the driver's side mirror.
Pro Tip: Before fully tightening the mounting nuts, have a helper hold the mirror flush against the outside of the door. This ensures a tight seal with the weather gasket and prevents potential wind noise or water leaks.
Cost Comparison
Prices for a 2002-2006 Mazda MPV driver's side mirror can vary significantly based on the source and features.
| Part Source | Estimated Price Range |
|---|---|
| New OEM (Dealer) | $240 - $350 |
| New Aftermarket | $30 - $70 |
| Used OEM (Recycled) | $45 - $100 |
| Shop Labor | $60 - $90 |
Frequently Asked Questions
How do I know if I have heated or non-heated mirrors?
The heated mirror function is tied to the rear window defroster button. On a cold or foggy day, turn on your rear defroster. If the side mirrors clear up, they are heated. There is no separate symbol on the mirror glass for this generation of MPV. When in doubt, removing the interior sail panel to inspect the number of wires on the electrical connector is the most definitive way to check.
Can I install a heated mirror on a car that came with non-heated mirrors?
No, this is not a simple plug-and-play swap. The vehicle's wiring harness is different. A car that did not originally have heated mirrors will not have the necessary wiring to power the heating element in the new mirror.
My mirror glass is broken but the housing is fine. Can I just replace the glass?
Yes, replacement mirror glass is available and is a cheaper option than replacing the entire assembly. This involves carefully removing the broken glass and any adhesive, then sticking the new glass onto the mirror's backing plate. This is a good option if the power adjustment motor is still working correctly.

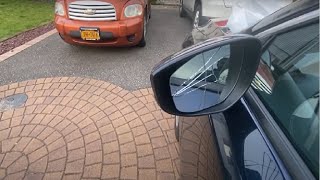

🎬 Watch how to easily replace just the mirror glass.Why does my new aftermarket mirror vibrate more than the original?
This is a common complaint with some lower-quality aftermarket mirrors. The internal components may not be as robust, or the mirror glass itself may be thinner than the original OEM part, leading to more vibration at highway speeds. A used OEM mirror often provides a more stable view.
Helpful Videos
Technical Specifications
OEM Part Numbers: LD4769180 (Driver, Power, Non-Heated) LC6269120C (Passenger, Power, Heated)
Fits 2002, 2003, 2004, 2005, 2006 Mazda MPV. Available in power-adjustable non-heated and power-adjustable heated configurations. Manual folding. Attaches with three bolts.
