1998-2000 Lexus GS300 Door Mirror: Diagnosing Failures and Verifying the 11-Wire Plug

Symptoms of a Failing Door Mirror

A faulty door mirror on a 1998-2000 Lexus GS300 can present several distinct symptoms. Understanding these signs can help you determine whether the problem is the mirror assembly, the switch, or a fuse.

1. Mirror Glass Will Not Adjust

You may find that the mirror glass won't move when you use the control switch on the driver's door. Often, the failure is limited to one axis of movement—for example, it may adjust left and right but not up and down. This almost always points to a failed actuator motor inside the mirror housing. Over time, corrosion can build up on the motor's internal contacts, or the motor itself can simply wear out. Because there are two separate motors (one for vertical, one for horizontal), it's common for only one to fail at a time.

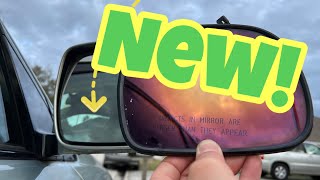

2. Auto-Dimming Failure or Leaking Glass

This is one of the most common failures for these mirrors. The electrochromic fluid inside the auto-dimming layer of the glass can break down or leak from its seal. Symptoms include:

• A distinct bubble or "lava lamp" appearance in the glass.
• A yellow, brown, or bluish tint that doesn't go away.
• A visible line separating a clear area from a dark, discolored area.
• The mirror being stuck in a dark or dim state, reducing visibility during the day.

3. Memory Function Inoperative

If the mirror does not return to its stored position when you use the seat memory buttons, it can indicate a problem with the mirror's internal position sensors or a fault in the communication with the car's body control module. Sometimes this can be related to a failing adjustment motor.

4. Heated Mirror Doesn't Work

If the mirror fails to clear frost or fog when the rear defroster is on, the internal heating element has likely failed. This is essentially a thin grid on the back of the mirror glass that has burned out.

Buying a Used 1998-2000 Lexus GS300 Door Mirror

Due to the high cost of a new OEM mirror assembly, a used OEM part is the most popular and cost-effective solution. However, you must perform careful checks to ensure you get a good, compatible part.

The Most Important Check: The 11-Wire Plug

The key to compatibility is the electrical connector. For a 1998-2000 GS300 with power, heat, and memory functions, the mirror should have a plug with 11 wires. Before purchasing, ask the seller to provide a clear photo of the connector and count the wires. A mirror with fewer wires will not support all of your vehicle's original features.

What to Inspect on a Used Mirror

• Inspect the Glass for Dimming Failure: This is the biggest risk with a used mirror. Under good light, tilt the mirror and look for any of the discoloration, bubbles, or separation lines mentioned in the symptoms section above. Reject any mirror that shows signs of a failing auto-dimming element.
• Check the Housing and Mounts: Inspect the black plastic housing for cracks, especially around the three mounting studs. While the painted outer cover can usually be swapped from your old mirror, the main structural housing cannot.
• Test the Motors (If Possible): If buying locally, ask to connect the mirror to your car to test the up/down and left/right adjustment functions. If buying online, test it immediately upon arrival.

Why Used OEM is Better Than New Aftermarket

For a complex part like this, a used Original Equipment Manufacturer (OEM) mirror is almost always a better choice than a cheap, new aftermarket assembly. Used OEM guarantees correct fitment, proper function of the memory system, and correct wiring. New aftermarket assemblies often cut costs by omitting the memory or auto-dimming features, even if advertised as a direct fit.

Cost of Replacing a Lexus GS300 Door Mirror

Prices can vary based on condition and supplier. This table provides a general estimate.

Replacement Difficulty: 2/5

Replacing the door mirror is a straightforward DIY job for someone with basic tools and patience. The most involved step is removing the interior door panel without breaking any clips.

• DIY Feasible: Yes
• Estimated Time: 1 Hour
• Required Tools: Plastic trim removal tool, Phillips screwdriver, 10mm socket and ratchet.

Step-by-Step Replacement Overview

1. Remove Interior Trim: Use a trim tool to pry off the small plastic cover behind the interior door handle and the trim piece in the door pull cup. Remove the Phillips screws located underneath.
2. Remove Door Panel: Use a trim removal tool to carefully pry around the outer edge of the door panel, releasing the plastic clips. Once all clips are free, lift the panel up and away from the door frame.
3. Disconnect Cables and Wires: With the panel loose, disconnect the electrical connectors for the window switch and the cables for the door handle and lock. Set the panel aside.
4. Access the Mirror: Carefully peel back the plastic vapor barrier near the front of the door to expose the mirror's connector and mounting nuts.
5. Unplug and Unbolt: Disconnect the 11-pin mirror wiring harness. While supporting the mirror from the outside, use a 10mm socket to remove the three nuts holding it to the door.
6. Install the New Mirror: Guide the new mirror's wiring harness through the door and secure it with the three 10mm nuts. Reconnect the wiring harness, test the mirror functions, and then reinstall the door panel in the reverse order of removal.
🎬 See this step-by-step mirror replacement walkthrough

Known Issues, Recalls, and TSBs

There are no official recalls from the NHTSA for the door mirrors on 1998-2000 Lexus GS300 models. However, the failure of the auto-dimming glass is a widely documented issue across many Lexus models from this era. While Lexus issued Technical Service Bulletins (TSBs) for this exact problem on the *interior* rear-view mirrors of later GS models, the failure mechanism is identical for the exterior mirrors. The adjustment motor failures are also a common result of age and wear, as reported by many owners in online forums.
