2004-2006 Scion xB Door Lock Actuator Failure: Symptoms and Replacement Guide

Symptoms of a Failing Door Lock Actuator

When a door lock actuator in your Scion xB begins to fail, the signs are usually straightforward. Because each door has its own actuator, a single failure will typically only affect one door. Here are the most common symptoms to watch for:

• One Door Fails to Lock or Unlock Electronically: This is the most definitive symptom. When you use the power lock switch or the key fob, all doors will respond except for the one with the bad actuator. You will still be able to lock and unlock that door manually from the inside or with the physical key in the door cylinder.
• Erratic or Intermittent Operation: Before it fails completely, an actuator might work sporadically. It may lock but not unlock, or it might only work some of the time. This can be caused by worn internal components or electrical contacts.
• Unusual Noises from Inside the Door: A failing actuator may produce abnormal sounds like buzzing, grinding, or a series of clicks when you press the lock or unlock button. This indicates the motor is struggling or the internal gears are damaged.
• Sluggish Lock Movement: The physical lock tab on the inside of the door may move slower than the others when using the power lock function. This weakness is a sign that the actuator's motor is losing power and is likely to fail soon.
🎬 Watch: How to diagnose a failing door lock actuator

Buying a Used 2004-2006 Scion xB Door Lock Actuator

Purchasing a used OEM door lock actuator can be a cost-effective solution compared to a new part from the dealer. However, it's important to inspect the part carefully to ensure you're getting a reliable component.

What to Check Before You Buy

• Verify the Correct Door Position: Actuators are specific to each door (Front Driver Side, Front Passenger Side, Rear Driver Side, Rear Passenger Side). Ensure the part you are buying is for the exact door you need to repair. Part numbers will differ for each position.
• Inspect the Electrical Connector: Look closely at the plastic connector and the metal pins inside. There should be no signs of corrosion, melting, or broken plastic. A damaged connector can lead to intermittent electrical contact and failure.
• Check for Physical Damage: Examine the plastic housing of the actuator for any cracks, significant scuffs, or signs of being tampered with or opened. A compromised housing could allow dirt and moisture to enter, leading to premature failure.
• Ask About the Donor Vehicle: If possible, find out the mileage of the Scion xB the part was removed from. Lower mileage is generally better, as these parts have a finite lifespan due to wear and tear on the internal motor and gears.
• Confirm Part Numbers: Match the part number on the used actuator with the one you are replacing whenever possible. This is the best way to guarantee a perfect fit and correct electronic operation.

Known Issues, TSBs, and Recalls

For the 2004-2006 Scion xB, there are no specific recalls or Technical Service Bulletins (TSBs) issued by Toyota for widespread failure of the door lock actuators themselves. Failures are generally considered a result of normal wear and tear over time. There is one consumer complaint filed with the NHTSA regarding a door latch that allegedly opened during a turn, but this appears to be an isolated incident and not related to the electronic actuator's function. A warranty enhancement program was issued for the rear hatch (back door) garnish, but this does not involve the locking mechanism.

Cost Comparison

Replacing a door lock actuator involves both the cost of the part and labor. Prices can vary significantly between OEM, aftermarket, and used options.

Replacement Information

Replacing a door lock actuator is a moderately difficult job that a DIY mechanic with some experience can typically handle. The process involves removing the interior door panel to access the actuator inside the door shell.

• Difficulty Rating: 3 out of 5
• Estimated Time: 1.5 - 2.5 hours
• Tools Required: Phillips head screwdriver, flat blade screwdriver, plastic trim removal tools, socket set.

Basic Replacement Steps:

1. Disconnect the negative battery terminal.
2. Remove screws holding the interior door panel, typically located in the door handle cup and armrest area.
3. Use a trim tool to carefully pry the door panel away from the door frame, releasing the plastic clips.
4. Disconnect the electrical connectors for the window and lock switches.

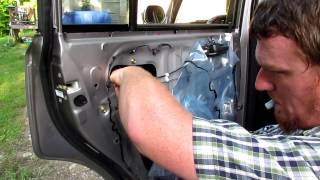

5. Carefully peel back the plastic weather barrier to expose the inside of the door.
6. Disconnect the electrical connector and the mechanical linkage rods from the old actuator.
7. Unbolt the actuator/latch assembly from the door.
8. Install the new actuator, reconnecting the linkages and electrical plug, and bolt it into place.
9. Test the function of the new actuator before reinstalling the door panel.
10. Reassemble the door panel, reconnect all switches, and secure all screws and clips.
