2005-2009 Ford Freestyle & Taurus X Front Door: Latch Recalls, Ajar Lights, and Replacement Guide
This guide covers the common failure points, recalls, and critical compatibility checks for the right front door assembly on the 2005-2007 Ford Freestyle and 2008-2009 Ford Taurus X.
- A safety recall for freezing door latches affects 2005-2006 Ford Freestyles; verify this has been addressed.
- A sticking 'Door Ajar' switch inside the latch is a very common issue that can drain the battery; it can sometimes be fixed by lubricating the latch.
- Before buying, you MUST verify if the replacement door has the correct cutout for the optional keyless entry keypad.
- Plan to reuse your original window regulator, as the design may differ between the Freestyle and Taurus X.
Key Issues for Freestyle & Taurus X Doors
While physical damage from accidents is a common reason for replacement, the doors on the 2005-2007 Ford Freestyle and 2008-2009 Ford Taurus X have several well-known electrical and mechanical issues. These vehicles are built on the same platform, so they share many of the same parts and problems.
Ford Freestyle: Door Latch Freezing Recall (NHTSA #06S45)
Safety Warning: Certain 2005-2006 Ford Freestyle models were subject to a safety recall for door latches that could fail in wet, freezing weather. This could prevent the door from latching securely, or worse, allow it to open while driving. The recall was primarily for vehicles registered in cold-weather states. The fix involved dealers installing a water shield (or "rain hat") and applying special grease to the latch mechanism. Before purchasing a used latch or if you experience this issue, it's crucial to see if this recall work was performed.
Common Problem: 'Door Ajar' Light Stays On
One of the most frequent complaints is a persistent "Door Ajar" warning light on the dashboard, even when the door is fully closed. This is almost always caused by a faulty switch integrated inside the door latch assembly. Over time, the original grease gums up with dirt and moisture, causing the switch to stick. Symptoms include:
- The dome light staying on, draining the battery.
- The alarm randomly going off.
- An audible chime while driving.
A common temporary fix is to spray a generous amount of lubricant like WD-40 or white lithium grease directly into the latch mechanism while working the handle to free up the sticking switch. If this doesn't work, the entire door latch assembly needs to be replaced.

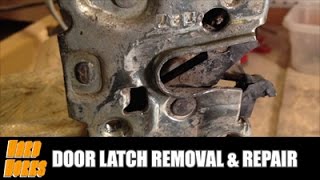

🎬 Watch: How to test and replace the door ajar switchSymptoms of a Failing Door Assembly
Diagnosing door problems can be tricky because many components are hidden inside the door panel. Here are the most common symptoms and their likely causes.
| Symptom | Likely Cause | Vehicle(s) Affected |
|---|---|---|
| Physical Damage (dents, rust, deep scratches) | Collision, parking lot damage, or age-related corrosion. Some owners have reported paint bubbling on Freestyle doors. | All |
| Door Won't Latch in Cold Weather | Moisture freezing inside the latch mechanism. This was the subject of a recall on early Freestyles. | 2005-2006 Freestyle |
| 'Door Ajar' Light On / Dome Light Stays On | The door ajar switch inside the latch is stuck or has failed. | All |
| Power Locks Don't Work on One Door | The door lock actuator motor has failed. You may hear a buzzing or grinding noise. This is a common wear item. | All |
| Power Locks Cycle Randomly | This is another sign of a failing door lock actuator sending faulty signals. | All |
| Power Window or Mirror Not Working | Could be the switch, the motor itself, or broken wires in the harness that runs between the door and the car's body. | All |
Buying a Used Right Front Door Assembly: What to Check
A used OEM door is often the best choice for fit and quality, but careful inspection is key. A door shell is just the metal outer structure; you will need to swap over your window, wiring, and all other internal parts.
1. Verify Keyless Entry Keypad Compatibility
Some models were equipped with a factory keyless entry keypad on the driver's and/or passenger's front door handle. This requires a specific cutout in the door shell itself. Before you buy, look at your current door and the replacement door. Ensure the replacement has the correct cutout if your vehicle has this feature, or that it does not have the cutout if your vehicle doesn't.
2. Inspect for Hidden Damage and Rust
- Check the Bottom Seam: This is the most common place for rust to form. Run your hand along the bottom edge and look for any bubbling paint or flaking metal.
- Look for Signs of Body Filler: Check for wavy reflections, mismatched paint texture, or use a small magnet to see if it sticks firmly across the entire door. Areas where the magnet is weak may have been repaired with Bondo.
- Examine for Previous Paint Work: Look for overspray on the weatherstripping or inside the door jambs. A quality repair is fine, but poor paint work can peel or fade.
3. Understand Component Differences
Compatibility Warning: Some sources indicate that the window regulator design may have changed for the 2008 model year (Taurus X). While the door shell itself interchanges, you should plan to reuse the window regulator from your original door to ensure compatibility.
4. Why Choose a Used OEM Door?
For a part like a door, fitment is everything. An original equipment (OEM) door was manufactured by Ford to the exact specifications of your vehicle. This ensures that body lines will match up, the door will seal properly against wind and rain, and it will close without issues. Aftermarket door shells are often cheaper but can require significant extra labor to align correctly, potentially costing more in the long run.
Replacement Difficulty & Cost
Installation Details
- Difficulty: 4 out of 5 (Advanced)
- Estimated Time: 3-5 hours (not including painting)
- DIY Feasible: Yes, for experienced mechanics. This is a two-person job.
Replacing a door shell is a complex task. It involves disconnecting the electrical harness, carefully removing the interior door panel, 🎬 See this step-by-step door panel removal walkthrough and transferring every component: the window glass, window regulator, latch assembly, lock actuator, speaker, and wiring. The door itself is heavy and must be carefully aligned on its hinges to ensure it opens and closes smoothly without hitting the fender or body. Professional installation is recommended for most people.
Cost Breakdown
The total cost can vary significantly based on the price of paint and labor in your area.
| Item | Estimated Cost | Notes |
|---|---|---|
| Used OEM Door Shell | $250 - $550 | Price depends on condition and availability. |
| New Aftermarket Door Shell | $200 - $400 | May require extra work for proper fitment. |
| New OEM Door Shell | $700 - $1,200+ | Ordered from a Ford dealership. |
| Professional Painting | $500 - $1,000 | Includes blending into adjacent panels for a perfect color match. |
| Shop Labor (Installation) | $250 - $500 | Covers swapping components and aligning the new door. |
Frequently Asked Questions (FAQ)
Do I have to paint a used door?
Only if you want it to match your car perfectly. You might get lucky and find a used door in the exact same color, but even then, sun fading on your original paint may cause a slight mismatch. For a seamless look, professional painting and blending are required.
Can I reuse the lock, window, and handle from my old door?
Yes, and you should. A replacement door shell is just the metal panel. You are expected to transfer all of your original internal and external components (mirror, handle, lock cylinder, window, regulator, etc.) to the new shell.
What tools are needed to replace a door?
You will need a comprehensive socket set, screwdrivers (Phillips and flathead), a trim removal tool kit to safely remove the interior panel, and likely a Torx bit set for the latch screws. Having a friend to help lift and align the door is essential.
My door just makes a buzzing noise but won't lock. Do I need a whole new door?
No. A buzzing or grinding noise is the classic symptom of a failed door lock actuator, which is a small, replaceable motor inside the door. You only need to replace the actuator, not the entire door assembly. This involves removing the interior door panel to access it.
🎬 Watch: How to replace the door lock actuatorHelpful Videos
Technical Specifications
OEM Part Numbers: 5F9Z-7420124-AA 5F9Z-7420124-BC 5F9Z7420124BC
Fits Right Front (Passenger Side). Sold as a shell only, requiring transfer of all internal and external components. Available with or without a cutout for the keyless entry keypad.
