2002-2010 VW Passat Deck Lid: Solving Trunk Wiring, Latch, and Generational Swap Issues
This guide covers the critical differences between B5.5 and B6 Passat deck lids and diagnoses the most common electrical failures that plague them.
- The 2002-2010 range covers two different generations (B5.5 and B6) whose deck lids are NOT interchangeable. Verify your year before buying.
- The #1 cause of trunk electrical problems is broken wires in the rubber boot between the lid and the body, not a faulty latch.
- When buying a used lid, inspect the wiring harness for damage and check for rust under trim and along the bottom seam.
- On B6 models (2006-2010), a trunk that won't open electronically may be due to the valet switch in the glove box being activated.
A Critical Warning: B5.5 vs. B6 Generations
Warning: The 2002-2010 Volkswagen Passat spans two distinct generations, and their deck lids are NOT interchangeable. Buying the wrong one is a common and costly mistake. Before purchasing, you must identify your specific vehicle.
| Generation | Model Years | Key Identifying Features |
|---|---|---|
| B5.5 | 2002-2005 | More rounded body shape. Taillights are primarily on the car's body, with only a small, flat section integrated into the trunk lid's edge. Part numbers typically start with 3B5. |
| B6 | 2006-2010 | More angular body lines. Taillights have a prominent circular element and a larger, more complex shape that extends significantly onto the deck lid. Part numbers typically start with 3C5. |
Symptoms of Deck Lid and Component Failure
Most issues with the Passat's trunk area are electrical, not with the metal panel itself. These problems often lead owners to believe they need a new deck lid, when a smaller component is the actual culprit.
1. Trunk Wiring Harness Failure (The #1 Most Common Issue)
The wires that power the trunk's electronics pass through a rubber boot between the body and the lid. Years of opening and closing cause these wires to fatigue and break. This is the source of most Passat trunk problems.
- Symptoms:
- Trunk will not open with the key fob or driver's door switch.
- License plate lights are out or flicker.
- Third brake light (CHMSL) is inoperative.
- "Trunk Ajar" warning light stays on the dashboard.
- A burning smell from melting wire insulation.
- Randomly blowing fuses.
Pro Tip: Before replacing any parts, pull back the rubber boot where the wiring harness flexes. You will likely find cracked, frayed, or completely severed wires. Repairing these wires is often a much cheaper fix than replacing the entire latch or lid assembly.
2. Faulty Trunk Latch Actuator or Microswitch
The latch mechanism itself contains a small electric motor (actuator) and a switch (microswitch) that tells the car whether the trunk is open or closed. These components can fail internally.
- Symptoms:
- Trunk lid pops back up and will not stay closed.
- Trunk opens by itself, sometimes while driving. 🎬 Watch: How to replace the trunk lock mechanism
- You can hear a click or whir from the latch, but it doesn't release.
- For B5.5 models, a broken internal cable between the actuator and latch mechanism is also common. 🎬 See this B5.5 trunk actuator repair walkthrough
3. Physical Damage and Rust
As a body panel, the deck lid is susceptible to dents from minor collisions and rust on older vehicles. When inspecting a used lid, check these common rust areas:
- Along the bottom seam where water can collect.
- Under the plastic trim piece above the license plate.
- Around the mounting holes for the license plate and emblem.
Official Recalls and Technical Service Bulletins (TSBs)
There are no major recalls from the National Highway Traffic Safety Administration (NHTSA) directly targeting the deck lid, wiring, or latch mechanism for either the B5.5 or B6 Passat sedans.
- 2002-2005 (B5.5): Recalls were issued for unrelated items like a fuel system heat shield and a brake light switch.
- 2006-2010 (B6): Recalls were issued for Takata airbags and a fuel pump control module, which can cause a loss of motive power. While not a deck lid issue, the fuel pump recall is critical for B6 owners to be aware of.
- A TSB for the B6, #TT 55-12-03, is listed for the trunk lid, but the specific details are not publicly available.
Buying a Used Deck Lid: What to Check
A used OEM deck lid is often a better value than a new aftermarket panel, offering superior fit and finish. However, careful inspection is key.
1. Confirm the Generation and Part Number
This is the most important step. A B5.5 lid will not fit a B6, and vice-versa. Match the part number prefix (3B5 vs. 3C5) to your old lid or VIN.
2. Inspect the Wiring Harness
Even if the lid is in perfect condition, the wiring harness may be damaged. Peel back the rubber boot and look for brittle insulation, exposed copper, or shoddy electrical tape repairs. A lid with a pristine, flexible harness is a huge plus.
3. Check for Hidden Damage and Rust
Look for signs of a previous accident. Check for paint overspray on the underside, uneven panel gaps, or areas that feel thick with body filler. Bring a small magnet; it won't stick to areas with heavy filler. Check all seams and edges for bubbling paint, which indicates underlying rust.
4. B6 Models: Verify Rearview Camera Support
For 2006-2010 models, deck lids for cars with a factory rearview camera have a specific cutout for the camera module (which is often part of the VW emblem release). A lid without this cutout cannot be easily modified to fit one.
Replacement Overview & Difficulty
- Difficulty Rating: 3 out of 5 (Requires a helper)
- Estimated Time: 1.5 hours
- DIY Feasible: Yes, for those comfortable with basic tools.
Replacing the deck lid is a two-person job to prevent scratching the paint or damaging the panel. The process generally involves disconnecting the wiring harness connector inside the trunk, unbolting the gas support struts (prop one side up while you do the other), and then unbolting the two main hinges. The most tedious part is often carefully swapping the lock mechanism, lights, and wiring harness from the old lid to the new one if they are not included.

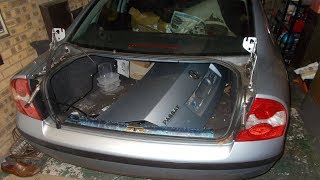

🎬 Watch: Step-by-step Volkswagen Passat trunk removal guideCost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM | $600 - $900+ (unpainted) |
| New Aftermarket | $250 - $400 (unpainted, may have fitment issues) |
| Used OEM | $150 - $350 (color match possible but not guaranteed) |
| Shop Labor | $150 - $250 |
Frequently Asked Questions (FAQ)
Why won't my Passat trunk open with the remote or button?
The most likely cause is broken wires inside the rubber boot between the trunk lid and the car body. The second most common cause is a failed latch actuator. For B6 models (2006-2010), also check the valet switch in the glovebox, as it disables the electronic release.
Can I just repair the broken trunk wires?
Yes. This is a very common DIY repair. You can splice in new sections of wire using butt connectors with heat shrink to restore the connection. It is much more cost-effective than replacing the entire harness if only a few wires are broken.
My trunk won't stay shut. What's the problem?
This is usually caused by a faulty latch mechanism. The internal gears may be stripped or the microswitch may be sending a constant "open" signal. On B6 models, check that the glow-in-the-dark internal emergency release handle isn't stuck in the pulled position, as this will prevent the latch from catching.
How do I open the trunk if the electronics have failed completely?
You will need to access the trunk from the inside. Fold down the rear seats and climb into the trunk area. On B5.5 and B6 models, there is a manual release mechanism on the latch itself that you can activate with a screwdriver or by pulling a handle to pop the trunk open.
Helpful Videos
Technical Specifications
OEM Part Numbers: B5.5 (2002-2005 Sedan): 3B0827025AL, 3B5827025AH, 3B5827025AK, 3B5827025AL, 3B5827025R B6 (2006-2010 Sedan): 3C5827025G, 3C5971147E (Wiring Harness)
This part is for Sedan models only and will not fit Passat Wagon models.
