2021-2025 Tesla Model X Dashboard Harness: Solving Electrical Gremlins

Understanding the 'Palladium' Refresh

This dashboard wiring harness is specifically for the refreshed Tesla Model X, often called the 'Palladium' generation, which began production in 2021. This major update included a shift to a horizontal center touchscreen, a new digital instrument cluster, and the introduction of the yoke steering wheel. Due to these significant architectural changes, wiring harnesses from pre-2021 Model X vehicles are not compatible. Verifying your vehicle's production year is the first and most crucial step in ensuring part compatibility.

Symptoms of a Failing Dashboard Harness

A faulty dashboard harness often creates a cluster of seemingly unrelated electrical problems. Because it connects so many different components, a single break or short in the harness can have widespread effects. Many symptoms can also be caused by software glitches, so it's common to first attempt a soft reboot (holding down both scroll wheels on the yoke) or a hard reset. If problems persist, a harness fault may be the cause.

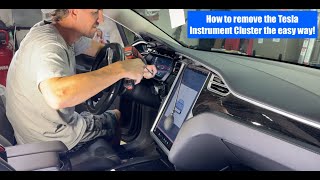

• Blank or Flickering Screens: The most common symptom is an intermittent or total failure of the main center screen or the driver's instrument cluster. 🎬 See how to remove the instrument cluster This can happen while driving, leading to a loss of critical information like speed.
• Multiple, Unrelated Warning Lights: A classic sign of a harness problem is the sudden appearance of multiple, unrelated warning lights for systems like airbags, ABS, traction control, or stability control. This often points to a communication breakdown on the vehicle's data network, which runs through the dash harness.
• Unresponsive Controls: Buttons on the yoke or steering wheel, climate controls, or power window switches may stop working intermittently or altogether.
• Burning Plastic Smell: Any smell of burning plastic from under the dashboard is a critical warning sign of a short circuit. If you smell this, stop the vehicle immediately as it poses a fire risk.
• Intermittent Audio or Component Failure: The radio, speakers, or other accessories like the glove box latch may work one moment and not the next.

Known Issues, Recalls, and Service Bulletins

While there are no specific recalls for the dashboard wiring harness itself on the 2021-2025 Model X, several related electrical recalls and TSBs exist for this generation that involve components connected by the harness:

• NHTSA Campaign 25V172000: Affects some 2021-2025 models where an incorrect airbag may have been installed, preventing the horn from working. This involves the steering wheel assembly, which is connected by the dash harness.
• NHTSA Campaign 25V002000: On some 2023-2025 models, a computer circuit board short could cause a loss of the rearview camera. The fix is a software update or computer replacement.
• Owner-Reported Issues: Forums contain reports from owners who have had other, smaller harnesses fail, such as for the rear parking sensors, which were replaced under warranty. These isolated incidents show that wiring issues can occur in various locations on the vehicle.

Buying a Used Dashboard Wiring Harness: A Buyer's Checklist

Due to the high cost of a new OEM harness and the lack of aftermarket alternatives, a quality used OEM harness is often the best solution. However, careful inspection is critical.

1. Verify the Part Number

The most important step is to match the part number exactly. The known OEM part number is 2494925-00-C. However, Tesla may use different revisions or variations based on the vehicle's specific options (e.g., premium audio, specific computer versions). Always cross-reference the part number from your original harness with the one on the used part.

2. Complete Physical Inspection

Inspect the entire length of the harness and every single connector before purchasing.

• Connectors: Look for cracked plastic housings, bent or corroded pins, and any signs of melting or discoloration from heat. A single damaged pin can render the entire harness useless.
• Wiring: Check for any cuts, scrapes, or sections where the insulation is brittle or has been rubbed through. Pay close attention to areas where the harness might bend or pass through tight spaces.
• Locking Tabs: Ensure all plastic locking tabs on the connectors are intact. These are crucial for a secure connection and are easily broken during removal from the donor car.
• Signs of Damage: Avoid any harness with signs of flood damage (silt, corrosion), fire damage (melted wires), or rodent damage (chewed insulation).

3. Donor Vehicle History

If possible, find out the history of the vehicle the harness came from. A harness from a low-mileage, front-end collision vehicle is generally a better bet than one from a vehicle with extensive water or electrical damage.

Cost of Replacing a Model X Dashboard Harness

Labor is the most significant part of the replacement cost due to the complexity of the job. Aftermarket options are generally not available for this specific, complex part.

Replacement Overview & Difficulty

Replacing the dashboard wiring harness is one of the most complex and labor-intensive repairs on a Model X. It is not a DIY-friendly job for most individuals.

• Difficulty Rating: 5 out of 5
• DIY Feasible: No, professional installation is strongly recommended.
• Scope of Work: The job requires the complete removal of the dashboard assembly, 🎬 Watch: Full dashboard removal walkthrough center console, instrument panel, steering yoke, and numerous trim pieces to gain access. This is a massive undertaking that carries a high risk of damaging trim panels or other electronic components if done incorrectly.
