2025 Lexus UX300h Dashboard Harness: Part No. 82146-76350 & Electrical Diagnosis
This guide covers failure symptoms, inspection tips for a used harness, and critical compatibility details for the 2025 Lexus UX300h, including context on a related engine harness recall.
- For 2025, the Lexus UX250h was renamed the UX300h; you must verify your part number is 82146-76350 to ensure compatibility.
- A recall (24V-587) exists for the *engine* harness on some 2025 UX300h models, which can cause a loss of power. This is a separate part but relevant context.
- Replacement is a 5/5 difficulty job requiring complete dashboard removal and should only be done by a professional.
- When buying a used harness, meticulously inspect all connectors and wires for melting, corrosion, cuts, or rodent damage.
Understanding the 2025 Lexus UX300h
Important: For the 2025 model year, Lexus updated the hybrid system and renamed the UX250h to the UX300h. While they are based on the same platform, parts like wiring harnesses can have subtle but important differences. Always verify that the part number on your original harness is 82146-76350 before purchasing a replacement.
Symptoms of a Failing Dashboard Harness
A faulty dashboard harness often creates a variety of confusing and seemingly unrelated electrical problems. Because it connects so many different components, a single break or short in the harness can have widespread effects. Look for these common warning signs:
- Multiple Warning Lights: The dashboard may light up with numerous, random warning indicators simultaneously. This often happens because multiple systems are losing communication with the vehicle's computer.
- Flickering or Dead Gauges: The speedometer, tachometer, fuel gauge, or temperature gauge may behave erratically, drop to zero intermittently, or stop working altogether.
- Infotainment and Climate Control Issues: The radio or center display screen may reboot, freeze, or not turn on. Similarly, the climate control system might become unresponsive.
- Intermittent Starting Problems: The vehicle may fail to start intermittently, even with a good battery. This can happen if the harness fails to transmit the proper signals from the ignition system or security module.
- Burning Plastic Smell: A distinct smell of burning plastic inside the cabin is a critical warning sign. It can indicate that wires are overheating and insulation is melting, creating a serious fire risk. If you notice this smell, pull over safely and inspect your vehicle immediately.
- Parasitic Battery Drain: A short circuit within the harness can cause a continuous power draw that drains the 12-volt auxiliary battery when the car is off. 🎬 Watch: A mechanic's guide to finding a parasitic battery drain.
Known Issues, Recalls, and Service Bulletins
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) for the dashboard wiring harness on the 2025 Lexus UX300h.
Related Engine Harness Recall: 24V-587
Recall Notice: It is important to be aware of NHTSA recall 24V-587, which affects a small number of 2025 Lexus UX300h vehicles produced between January 9, 2024, and January 17, 2024. This recall is for the engine room main wire harness, not the dashboard harness.
The defect involves misrouted wires that could fracture due to vibration, potentially causing a sudden loss of driving power. Lexus dealers will replace the engine harness on affected vehicles for free. While this is a different part, it highlights the importance of proper harness routing and manufacturing for overall vehicle reliability.
Context from the Lexus UX250h
Owners of the predecessor model, the UX250h, have reported electrical issues that can mimic harness problems. A notable issue is addressed in TSB L-SB-0036-21, where a software problem in the Data Communication Module (DCM) can cause a dead 12V battery, non-functional remote services, and other electrical gremlins. Some owners also report the 12V auxiliary battery draining if the vehicle is not driven regularly. If you are experiencing electrical issues, it's wise to rule out these more common problems before suspecting a major harness failure.
Buying a Used 2025 UX300h Dashboard Harness
Given the high cost of a new OEM harness, a quality used part from a low-mileage vehicle is an excellent value. However, careful inspection is critical. A damaged used harness will only lead to more problems.
Physical Inspection Checklist
Before buying, meticulously inspect the entire harness:
- Check Every Connector: Look at each plastic connector. Ensure none are cracked, melted, or have broken locking tabs. Check inside for any green or white corrosion on the metal pins.
- Inspect the Wires: Gently feel the bundles of wires. The outer insulation should be flexible. Avoid any harness where the wires feel brittle, stiff, or cracked. Look for any signs of melted insulation or exposed copper wire. 🎬 See how to visually locate a short in a wiring harness.
- Look for Cut or Spliced Wires: A harness should be completely intact. Any cut wires or amateur-looking electrical tape splices are major red flags. This often indicates a previous, improper repair attempt.
- Verify the Part Number: Make sure the tag on the harness reads 82146-76350. An eBay listing for a used harness from a 2025 UX300h confirms this part number.
- Check for Rodent Damage: Look for any signs of chewing on the wires or connectors. Rodents are a common cause of harness failure.
Pro Tip: Ask the seller for the VIN of the vehicle the harness came from. This allows you to check the vehicle's history to ensure it wasn't from a flood- or fire-damaged car, which can cause hidden and extensive electrical issues.
Replacement Difficulty & Cost
Difficulty: 5 out of 5 (Professional Installation Only)
Replacing the dashboard wiring harness is one of the most labor-intensive repairs on a modern vehicle. It requires the complete removal of the dashboard assembly, including the steering column, instrument cluster, center console, infotainment system, and airbags. This is not a feasible DIY job and should only be performed by an experienced professional technician.

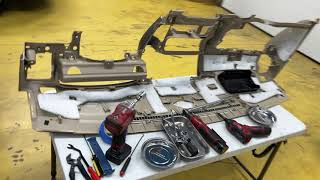

🎬 Watch: See the complexity of a professional Lexus dashboard replacement.Estimated labor time for this job is typically between 12 and 25 hours.
Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM | $1,800 - $2,800+ |
| New Aftermarket | Not Available |
| Used OEM | $400 - $750 |
| Remanufactured | Not Available |
| Shop Labor | $1,800 - $3,750+ |
Frequently Asked Questions (FAQ)
Is the 2025 UX300h harness the same as a 2024 UX250h harness?
Not necessarily. The 2025 UX300h introduced a new fifth-generation hybrid system. While the dashboard layout is similar, changes to the powertrain and electronics could result in different harness connectors or wiring. You must match the OEM part number (82146-76350) to ensure compatibility.
Can I just repair my old harness instead of replacing it?
Repairing a single, accessible broken wire is sometimes possible. However, if the damage is extensive, involves multiple circuits, or is located deep within the dashboard, replacement is the only reliable solution. Widespread issues like heat damage, corrosion, or rodent damage compromise the entire harness.
Does a used dashboard harness need to be programmed?
No. The harness itself is a passive component and does not require programming. However, some of the electronic modules it connects to (like the instrument cluster or immobilizer system) are VIN-coded to the vehicle. If you are replacing other modules along with the harness, they may require programming by a Lexus dealer or a specialized shop.
What is the most common cause of dashboard harness failure?
On newer vehicles, outright failure due to age is rare. The most common causes are external factors such as rodent damage (chewing), water intrusion from a leaking windshield or sunroof, or physical damage from a previous improper repair or installation of aftermarket electronics like alarms or remote starters.
Helpful Videos
Technical Specifications
OEM Part Numbers: 82146-76350
No key specifications found.
