2002-2007 Subaru Impreza Dashboard: Cracks, Compatibility, and Swapping Bugeye, Blobeye & Hawkeye

Symptoms of a Failing Dashboard Panel

Failure of the dashboard in a 2002-2007 Subaru Impreza is almost always related to physical and cosmetic damage rather than mechanical breakdown. These issues are typically caused by long-term exposure to sun, heat, and humidity.

1. Cracks, Fading, and Warping

The most common symptom is the appearance of cracks on the top surface of the dash. These often start as small hairline fractures near high-stress areas like the defroster vents or the seams of the passenger airbag cover and can grow over time. Prolonged exposure to UV rays from the sun dries out the vinyl and underlying plastic, making it brittle. You may also notice significant color fading or a warped, uneven surface in areas that get the most direct sunlight.

2. Sticky or Tacky Surface

In hot and humid climates, the plasticizers in the dashboard's vinyl material can break down and leach to the surface. This creates a sticky or tacky film that is difficult to clean and attracts dust and debris. While Subaru issued a warranty extension for this issue on other models like the Legacy and Outback, the same material degradation can affect the Impreza. This condition can also cause a distracting glare on the windshield.

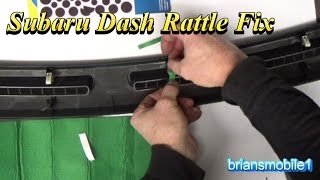

3. Rattles, Squeaks, and Poor Fitment

A rattling dashboard is often a sign of broken mounting tabs on the back of the panel. These tabs are fragile and can easily break during removal for other repairs, such as a heater core or airbag replacement. If the dash has been removed previously—especially for the widespread Takata airbag recall—and not reinstalled correctly, it may not sit flush, leading to persistent noises and visible gaps between panels.

Variant Differences: Bugeye, Blobeye, and Hawkeye Compatibility

The 2002-2007 Impreza platform (known as the GD/GG chassis) had three major facelifts, and while they look similar inside, there are critical differences. Understanding these is essential to buying the right part.

• Bugeye: 2002-2003
• Blobeye: 2004-2005
• Hawkeye: 2006-2007

While the main, bare dashboard shell is physically interchangeable across all 2002-2007 models, the center console area where the radio and climate controls mount is different for each facelift. This means you cannot install a Hawkeye (06-07) center trim and radio into a Bugeye (02-03) dash without extensive modification. For a direct fit, you must buy a dashboard assembly from the same style range as your vehicle.

Key Compatibility Checks:

• Sun Load Sensor: Models with automatic climate control (common on WRX and STI) have a small sensor on top of the dash near the windshield to measure solar intensity. If your car has this feature, your replacement dash must have the corresponding cutout. A dash without the cutout is for manual A/C models.
• Color and Trim: Dashboards came in different colors, most commonly a darker gray for WRX/STI models and a lighter gray for base, TS, and RS trims. Always try to visually match the color, as part number suffixes like 'NF' and 'OE' can be unreliable on used parts.
• Sedan vs. Wagon: The main dashboard panel is the same for both sedan and wagon body styles. Any claims that a dash fits only a wagon are incorrect.

Buying a Used 2002-2007 Impreza Dashboard Panel: What to Check

A used OEM dashboard is often the only cost-effective option, as new panels are expensive or discontinued. Inspecting a used part carefully is critical, as installation is a massive job you only want to do once.

Physical Inspection Checklist:

• Mounting Tabs: This is the most important check. Carefully inspect the back and underside of the dashboard for any broken or cracked plastic mounting tabs. Even one broken tab in a key area can cause persistent rattles.
• Surface Condition: Run your hand over the entire top surface. Feel for any stickiness or gummy residue. Look for deep cracks, especially around the defroster vents. Minor surface scratches are acceptable, but deep gouges are not.
• Airbag Area: Inspect the passenger airbag seam. It should be clean and straight. Any bulging, cracking, or discoloration could indicate a past deployment or water damage.
• VIN Plate Area: Ensure the area on the driver's side where the VIN plate shows through the windshield is not damaged or modified.
• Structural Integrity: Flex the dashboard slightly. It should feel solid. If it feels overly brittle or flimsy, it has likely suffered extensive sun damage.

Dashboard Panel Replacement Overview

Replacing the dashboard on a 2002-2007 Impreza is a highly advanced and time-consuming project. It is not recommended for beginners.

• Difficulty: 5/5 (Expert)
• Estimated Time: 8-12 hours for an experienced DIYer.

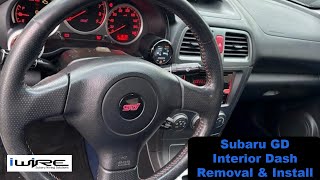

• Key Steps: The process involves disconnecting the battery (mandatory for airbag safety), removing the steering wheel, instrument cluster, A-pillar trim, glove box, center console, radio, and climate controls before unbolting the main dash assembly from the firewall and side pillars. The passenger airbag must also be carefully removed and transferred.
🎬 See this step-by-step dashboard removal walkthrough

Cost Comparison: New vs. Used Impreza Dashboard

This table provides an estimated cost breakdown for replacing a dashboard panel. Prices can vary significantly based on location, part condition, and availability.
