2003-2004 Outlander Dashboard Panel: Airbag Recalls, Water Leaks & Replacement Guide
Navigate the key safety recalls, common cracking issues, and the complex replacement process for your first-generation Mitsubishi Outlander dashboard.
- This part is subject to two major safety recalls: one for water leaks disabling the airbag system (NHTSA 03V194) and one for a potentially faulty passenger airbag inflator (NHTSA 14V-770).
- Replacement is a 5/5 difficulty job requiring 8-12 hours and removal of the entire cabin front; it is not recommended for DIYers.
- Compatibility is critical. You must match the interior color code (e.g., 'HA' for gray) found on the door jamb or firewall VIN plate.
- When buying used, the most important inspection is for broken mounting tabs, as these are common and will cause permanent rattles.
Critical Safety Warnings: Recalls and Airbag Integrity
Before addressing common wear and tear, it's crucial to be aware of significant safety recalls affecting the 2003-2004 Mitsubishi Outlander's dashboard area. The passenger-side airbag is an integral part of this dashboard panel assembly.
Recall Notice: A recall was issued for some 2004 Outlander models for a potentially defective passenger airbag inflator that could rupture during deployment (NHTSA Campaign ID: 14V770). This applies to vehicles built between July 21, 2003, and July 15, 2004. It is essential to verify if a specific vehicle's VIN is affected by this recall.
Recall Notice: Another significant recall (NHTSA Campaign ID: 03V194) affects 2003 Outlanders for water leaks. Water can enter the cabin through unsealed openings in the dash panel or side sills, collecting on the floor and corroding the wiring for side airbag sensors and seatbelt pre-tensioners. This can cause the SRS (airbag) warning light to illuminate and disable the entire airbag system.
Symptoms of a Failing Dashboard Panel
Most dashboard issues on this generation of Outlander are physical or cosmetic, but they can sometimes point to underlying electrical problems.
- Cracks and Warping: The most common failure is physical damage from years of sun and heat exposure. Cracks often appear near the defroster vents or around the passenger airbag cover.
- Rattles and Squeaks: As the plastic becomes brittle, mounting points can break or loosen, causing persistent rattling noises, especially over rough roads.
- Sticky or Peeling Surface: In some climates, the top layer of the dashboard material can degrade, becoming sticky or peeling away from the rigid structure underneath.
- Intermittent Gauge Cluster Failure: Some owners report the entire instrument cluster—speedometer, tachometer, and LCD display—intermittently going dead. While this can be a fault within the cluster itself, it can also be caused by a compromised wiring harness under the dash.
- SRS Airbag Light: An illuminated SRS light is a critical warning. While it can have many causes, on this vehicle it can be triggered by the water leak issue corroding sensor wiring under the dash area. When this light is on, the airbags will not deploy in a crash. 🎬 Watch: How to diagnose and fix a Mitsubishi airbag light
Buying a Used Dashboard Panel: What to Check
Due to the high cost and limited availability of new panels, a used OEM dashboard is the most practical choice. Careful inspection is key to getting a good part.
1. Verify Compatibility by Interior Color Code
Mitsubishi used different interior colors. You must match the color code of the donor vehicle to your own. The provided part number suffix 'HA' indicates a gray trim, but other colors like charcoal black ('AG69') exist.
- How to find your code: Look for the vehicle identification plate. It's typically a sticker or metal tag located either on the driver's side door jamb or on the firewall in the engine bay. The plate will list an 'INTERIOR' or 'TRIM' code.
2. Inspect All Mounting Tabs
This is the most critical inspection point. The dashboard is held in by numerous plastic tabs and bolt points. After years of heat and vibration, these become brittle.
- Carefully flip the panel over and check every single mounting point, especially around the perimeter and where the center console and instrument cluster attach.
- A panel with even one or two broken main tabs will never sit correctly and will cause persistent, hard-to-fix rattles.
3. Check the Airbag and Cover
The passenger airbag is part of the assembly. Never buy a dashboard from a vehicle that was in a front-end collision where the airbags deployed.
- Inspect the airbag cover seam. It should be perfectly flush and show no signs of being tampered with or deployed.
- Verify the airbag's electrical connector is intact and undamaged.
4. Examine for Physical Damage
- Look for hairline cracks, especially on the top surface exposed to the sun.
- Check for warping by placing the dash on a flat surface.
- Ensure all vent and switch cutouts match your vehicle's trim level (e.g., LS vs. XLS).
Replacement Overview & Difficulty
Replacing the dashboard panel on a 2003-2004 Outlander is a highly complex and time-consuming task recommended only for experienced technicians or very advanced DIY mechanics.
- Difficulty Rating: 5 out of 5
- Estimated Time: 8-12 hours
- DIY Feasible: Not recommended for beginners.
Warning: This procedure requires disconnecting the battery and carefully handling the passenger airbag module. Improper handling can lead to accidental deployment, causing serious injury or death. Always wait at least two minutes after disconnecting the battery negative cable for the system's capacitor to discharge before working on any airbag components.
The general process involves the removal of:
- A-pillar trim panels
- Glove box and lower dash panels
- Center console assembly
- Radio and climate control unit
- Steering column covers and potentially the steering wheel
- Instrument cluster
- Disconnecting numerous electrical harnesses

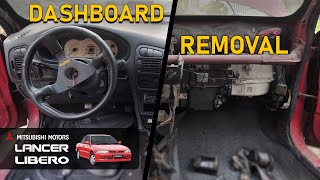

- Unbolting the main dashboard assembly from the firewall and side pillars 🎬 See this step-by-step Mitsubishi dashboard removal walkthrough
Cost to Replace the Dashboard Panel
Labor is the dominant cost in this repair. Sourcing a quality used OEM panel is the most cost-effective strategy.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $1,500+ (if available, likely discontinued) |
| New Aftermarket | Not commonly available |
| Used OEM | $250 - $600 (depending on condition and included components) |
| Shop Labor | $800 - $1,200 (based on 8-12 hours at typical shop rates) |
| Total (Used Part + Labor) | $1,050 - $1,800 |
Frequently Asked Questions (FAQ)
Is the passenger airbag included with the dashboard panel?
Yes, on the 2003-2004 Outlander, the main dashboard structure includes the integrated passenger-side airbag. When you buy a complete used dashboard, it should come with the undeployed airbag module.
Is a cracked dashboard dangerous?
A simple cosmetic crack is not inherently dangerous. However, severe cracking or warping around the passenger airbag cover could potentially interfere with its proper deployment in a crash. Furthermore, if the SRS airbag warning light is on, the system is disabled and will not protect occupants, which is a critical safety failure.
How do I find my interior color code?
Check the information plate on the driver's side door jamb or on the firewall under the hood. It will have a label for 'TRIM' or 'INTERIOR' followed by a code, such as 'HA' for gray or 'AG69' for charcoal black.
Was the 2003-2004 Outlander part of the big Takata airbag recall?
No, according to search results, the 2003-2006 Outlander was not included in the widespread Takata airbag inflator recalls that affected many other Mitsubishi models. However, it has its own separate and very important recalls, including one for the passenger airbag inflator on some 2004 models (NHTSA 14V-770) and another for water leaks that can disable the side airbag system (NHTSA 03V194).
Helpful Videos
Technical Specifications
OEM Part Numbers: MN124441 MR975101 MR975101HA
Material: Molded plastic and composite. Includes integrated passenger-side airbag assembly. Available in multiple interior colors, including Gray (Trim Code: HA) and Charcoal Black (Trim Code: AG69).
