2001-2007 Escape & 2005-2007 Mariner Dashboard: Why It Cracks at the Airbag and How to Replace It

Symptoms of a Failing Dashboard Panel

Unlike many mechanical parts, a dashboard panel's failure is almost always visible. The symptoms are typically related to physical deterioration from age, sun exposure, and temperature cycles. Owners of a 2001-2007 Ford Escape or 2005-2007 Mercury Mariner should watch for the following signs.

• Cracks Along the Passenger Airbag Seam: This is the most common failure. You will see a distinct crack forming along the pre-scored outline where the passenger airbag is designed to deploy. Years of heat and sun exposure cause the plastic to become brittle and shrink, eventually splitting at its weakest point.
• Rattling or Ticking Noises: As the plastic ages and becomes brittle, it can create annoying sounds. A common complaint is a ticking or rattling noise from the passenger side of the dash, especially in cold weather when the plastic contracts. This can be caused by the airbag cover vibrating or other parts of the dash assembly fitting loosely.
• Warping and Discoloration: Intense, long-term sun exposure can cause the top of the dashboard to warp, lift away from the windshield, or become faded and discolored.
• Broken Mounting Tabs: The plastic tabs on the back of the panel that hold it to the vehicle's frame can become brittle and break, leading to a loose fit, squeaks, and rattles. This is often discovered during removal for other repairs.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While the dashboard cracking is a well-known issue among owners, there have been no official recalls or Technical Service Bulletins (TSBs) issued by Ford for the cracking dashboard panel itself on these specific models. However, anyone removing the dashboard should be aware of two major safety recalls for components located behind it.

• NHTSA Recall 07S51 (ABS Module Fire Risk): This critical recall affects certain 2001-2004 Ford Escape models. A faulty seal on the Anti-Lock Brake System (ABS) module connector could allow moisture to enter, leading to an electrical short, overheating, smoke, and potentially a fire in the engine compartment near the firewall. This can occur even when the vehicle is off.
• NHTSA Recall 04V574 (Sticking Throttle): Affecting 2002-2004 Ford Escape and Mazda Tribute models, this recall addressed an accelerator cable that could bind where it passes through the dash panel, potentially preventing the throttle from returning to idle.

These recalls do not pertain to the dashboard panel's structural integrity but are essential safety notes for any technician or DIYer working in this area of the vehicle.

Buying a Used Dashboard Panel: What to Look For

Due to the high cost and likely discontinuation of new OEM panels, a quality used OEM panel is the most practical solution. Here’s what to check before you buy.

Physical Inspection

• Examine the Airbag Seam: This is the #1 priority. Carefully inspect the entire passenger airbag outline for any signs of hairline cracks, stress marks, or splitting. Reject any panel that shows even minor cracking in this area, as it will only get worse.
• Check for Sun Damage: Look for warping along the front edge where the dash meets the windshield. Check for chalky, faded, or discolored areas that indicate the panel has had heavy sun exposure and may be brittle.
• Inspect All Mounting Points: Flip the panel over and check every screw hole and clip retainer for cracks or breaks. A panel with broken tabs will never fit securely and will cause rattles.
• Look for Deep Scratches and Gouges: While minor scuffs can be expected, deep gouges in the main surfaces cannot be easily repaired.

Compatibility Verification

• Match Your Interior Color: The most reliable way to ensure a color match is to find the interior trim code on the vehicle identification sticker, usually located on the driver's side door jamb. Provide this code to the seller to verify a match.
• Check for Trim Options: The Mercury Mariner was available with a woodgrain trim option on the center bezel area. Ensure the replacement panel matches your vehicle's original trim level (standard finish or woodgrain).
• Confirm Vehicle Fitment: While the core structure is the same, ensure the panel is from a 2001-2007 Ford Escape or a 2005-2007 Mercury Mariner.

Replacement Guide

Installation Difficulty and Cost

• Difficulty Rating: 5 out of 5 (Expert Level)
• Estimated Time: 8-12 hours for a professional.
• DIY Feasible: Not recommended for beginners. This is one of the most involved repairs on any vehicle.

Replacing the dashboard panel is a massive undertaking that requires dismantling almost the entire vehicle interior. The estimated shop labor cost for this job is typically between $800 and $1,200, depending on local labor rates.

Replacement Overview

While a full step-by-step guide is beyond this article's scope, the process involves the following major steps to illustrate the complexity:

1. Disconnect the battery and wait at least 30 minutes for the airbag system to discharge.
2. Remove both front seats.
3. Remove the center console.
4. Remove the steering wheel and steering column trim. In some cases, the entire steering column may need to be lowered or removed.
5. Remove the A-pillar trim panels on both sides.

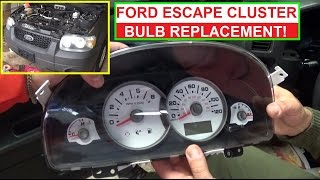

6. Remove the instrument cluster, radio, 🎬 Watch: How to remove the instrument cluster and climate control unit.
7. Disconnect numerous electrical connectors for lights, sensors, and control modules.
8. Unbolt the main dashboard assembly from the firewall and side pillars.
9. Carefully remove the entire assembly from the vehicle.
🎬 Watch: Full dashboard removal walkthrough
10. Transfer all components (airbags, vents, wiring, etc.) to the new panel before reversing the process for installation.

Cost of Replacement: New vs. Used

Frequently Asked Questions (FAQ)
