Ford Escape, C-Max & Mariner Dashboards (2005-2016): Cracks, Airbags, and Screen Compatibility

Major Compatibility Alert: Two Different Dashboards

Before you begin, it's crucial to understand that this guide covers two distinct vehicle platforms and dashboard designs that are NOT interchangeable. The vehicles share a name but not the same core structure across all years.

• First Generation Platform (2005-2012): This applies to the 2005-2012 Ford Escape and the 2005-2011 Mercury Mariner. These vehicles share a similar boxier interior design.
• Second Generation Platform (2013-2016): This applies to the 2013-2016 Ford Escape and the 2013-2016 Ford C-Max. These models feature a more modern, sculpted interior and different electronic systems.

Part 1: 2005-2012 Ford Escape & 2005-2011 Mercury Mariner

Common Problems & Symptoms

The primary issues with the dashboards in this generation are often related to age, sun exposure, and electrical problems within the instrument cluster it houses.

• Cracking and Warping: After years of exposure to sun and heat, the plastic can become brittle, leading to cracks, especially on the top surface and around speaker or defroster vents.
• Electrical Issues & Gauge Failure: Many owners report intermittent or total failure of the instrument cluster, where all gauges drop to zero and warning lights illuminate. This is often caused by a bad fuse, corroded wiring, or an internal failure of the cluster itself, not the main dashboard panel.

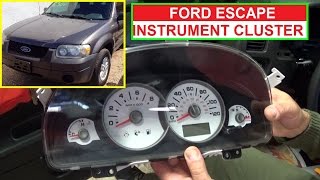

🎬 Watch: How to remove the instrument cluster
• Rattles and Squeaks: As the vehicle ages, the plastic clips and mounting points of the dash can become loose or break, causing annoying noises while driving.
• Passenger Airbag Warning: Since the passenger airbag is integrated into the dash, issues with the airbag system or its sensors can sometimes be related to wiring that runs behind or through the dashboard assembly.

Known Issues, Recalls, and TSBs

• Power Steering Assist Failure (Recall 14S05): For 2008-2011 Escape and Mariner models, a recall was issued for a faulty steering torque sensor that could cause a loss of power steering. While not a dash issue itself, the repair may involve accessing components near the steering column, which is connected to the dash.
• Fuel Delivery Module Crack (Recall 16S41): On 2010-2012 Escapes with the 3.0L engine, the fuel delivery module could crack and leak fuel.
• Aftermarket Seat Covers (Recall 10E025000): A recall was issued for aftermarket seat covers that were not compatible with the side airbags, potentially interfering with deployment. This highlights the importance of ensuring all safety systems are unobstructed.

Part 2: 2013-2016 Ford Escape & 2013-2016 Ford C-Max

Common Problems & Symptoms

This generation's dashboard issues are more frequently related to its integrated electronics, particularly the central display screen.

• Blank Center Display Screen: A very common failure is the 4.2-inch or 8-inch center screen going black, which can affect access to navigation, audio, and climate controls. This is typically a failure of the screen or the APIM (Accessory Protocol Interface Module), not the dashboard structure itself. Replacement screens are available.

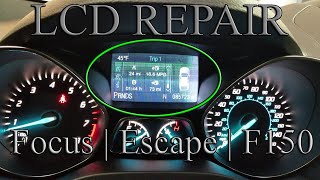

🎬 See how to reset a frozen or black screen
• Peeling or Delamination: The soft-touch surface on some dashboards can begin to peel or bubble, especially in hot climates.
• Instrument Cluster Failure: Similar to the older generation, the main instrument cluster can fail, leading to a blank display, a no-start condition due to the anti-theft system, or multiple false warning lights.
• Rattles Around Screens/Vents: Loose trim or mounting points around the large center stack can cause persistent rattles.

Variant Differences: 4.2-inch vs. 8-inch Screens

A critical compatibility point for this generation is the center display. The main dashboard panel has different-sized cutouts depending on the factory-installed screen.

• Base/SE Models: Typically came with the smaller 4.2-inch display. The dashboard for this version has a smaller opening.
• SEL/Titanium Models: Often equipped with the larger 8-inch MyFord Touch system. The dashboard for these trims has a much larger cutout to accommodate the bigger screen.

Known Issues, Recalls, and TSBs

• Side Curtain Airbag (Recall 14S04): A recall was issued for 2013-2014 Escape and C-Max models for a software error in the Restraint Control Module (RCM) that could delay side-curtain airbag deployment in a rollover. The fix involves reprogramming the RCM.
• Instrument Panel Software (Recall 15C03): Ford recalled some models for an issue where the instrument cluster could be inoperative, failing to warn the driver of safety issues. The fix was a software update.

Buying a Used Dashboard Panel: A Buyer's Checklist

Since a new OEM dashboard can cost over $2,000, a used part is often the only economical option. Inspect a used dash carefully to avoid buying someone else's problems.

Step 1: Verify Exact Compatibility

• Vehicle Generation: Confirm you are buying for the correct platform (2005-2012 Escape/Mariner vs. 2013-2016 Escape/C-Max).
• Screen Size (2013+): Match the dash to your vehicle's 4.2-inch or 8-inch screen system.
• Color and Trim: Ford offered several interior colors (Black, Tan, Gray). Get the VIN from the donor vehicle to verify the original color code if possible.
• Engine Type (2005-2012): The initial data mentions a difference between gas and hybrid models. This is likely due to different wiring harnesses or mounting points for hybrid-specific components. Double-check compatibility if you have a Hybrid model.

Step 2: Physical Inspection

1. Check the Airbag: This is the most critical safety check. Ensure the passenger airbag cover is intact, has not been deployed, and shows no signs of tampering. A deployed airbag makes the entire dash unusable.
2. Inspect the Surface: Look for deep scratches, sun-fading, and cracks. For older models, feel the surface for any sticky or gummy residue, which indicates the plastic is breaking down and cannot be easily repaired.
3. Check All Mounting Points: Flip the dashboard over and inspect all plastic tabs, clips, and screw holes. Broken mounting points are a primary cause of rattles and poor fitment.
4. Examine Vents and Doors: Make sure all HVAC vents open and close properly and that the glove box door (if included) latches securely.
5. Look for Cut or Damaged Wires: While most of the wiring is part of a separate harness, inspect any integrated wiring for cuts, fraying, or melted connectors.

Replacement Overview and Cost

Installation Difficulty & Labor

Replacing a dashboard is one of the most labor-intensive repairs on a vehicle. It requires removing the steering wheel, instrument cluster, center console, A-pillar trim, radio, and climate controls, and disconnecting dozens of electrical connectors.

• Difficulty Rating: 5 out of 5 (Expert level)
• Estimated Time: 8-12 hours
• DIY Feasible: Not recommended for beginners. Requires extensive tools and patience. 🎬 Watch this complete dashboard removal walkthrough Improperly handling the airbag modules is extremely dangerous.

Cost Breakdown

The cost varies significantly based on the part source and labor rates.
