2019-2024 Volvo XC40 & C40 Dash Panel: A Guide to Rattles, Damage, and Replacement
This guide covers common issues, replacement costs, and what to look for when buying a used dash panel for your 2019-2024 Volvo XC40 or 2022-2024 Volvo C40.
- The most common issue is not failure, but persistent rattles and creaks from the dash area.
- Replacement is a highly complex, expert-level job (5/5 difficulty) requiring removal of the steering column, center console, and airbags.
- When buying used, you MUST verify the exact color and trim finish, as multiple versions exist for the same part number.
- A used dash panel is typically a 'bare shell', meaning you must transfer all electronics, vents, and trim from your old panel.
Symptoms of a Failing or Damaged Dash Panel
Since the dash panel is primarily a structural and cosmetic component, "failure" usually refers to physical damage or noise rather than a mechanical or electrical breakdown. Here are the most common issues owners experience.
1. Rattles, Creaks, and Buzzing Noises
By far the most common complaint for the Volvo XC40 and C40 is the development of various noises from the dashboard area. Owners describe these sounds as ticking, buzzing, or creaking, often appearing at certain speeds or on specific road surfaces. These noises can be difficult to pinpoint but are often caused by plastic trim pieces rubbing against each other or clips becoming loose over time. Some owners have noted noises from behind the instrument cluster or near the center speaker. In some cases, a dealer may apply felt tape or foam to resolve the issue.
2. Physical Damage
Physical damage is another common reason for replacement. This can include:
- Cracks or Warping: Prolonged exposure to direct sunlight and heat can cause the plastic and vinyl materials to become brittle and crack or warp over time.
- Scratches and Gouges: Deep scratches or gouges from loading/unloading items or general wear and tear can detract from the interior's appearance.
- Airbag Deployment: If the passenger airbag has deployed in an accident, it will destroy the dash panel, requiring a complete replacement.
Known Issues, TSBs, and Recalls
While there are no recalls specifically for the main dash panel structure on the 2019-2024 Volvo XC40 or 2022-2024 Volvo C40, several recalls and Technical Service Bulletins (TSBs) involve components located within the dashboard.
- Dashboard Software Issues: Some owners have reported software glitches causing the map to fail on the instrument panel display. This is typically resolved with a system reboot or a software update from the dealer.
- General Rattles: Numerous owner complaints on forums like Reddit and SwedeSpeed mention persistent dash rattles. While no specific TSB for a widespread dash rattle fix was found in searches, some dealers have acknowledged it as a known issue and attempted fixes by adding foam insulation.
- Related Recalls: Other recalls for these vehicles involve systems housed in the dash, such as software issues affecting the emergency call (e-call) system or the rearview camera display, but these do not pertain to the physical dash panel itself.
Warning: This article is about the bare dash panel shell. It does not include the digital instrument cluster, infotainment screen, or airbags. Problems with those components are separate issues.
Buying a Used Dash Panel for Your XC40 or C40
A used OEM dash panel can be a cost-effective solution for replacing a damaged unit. However, careful inspection is critical before you buy.
Key Inspection Points:
- Confirm It's a Bare Shell: Most used dash panels are sold as the bare plastic and vinyl structure. You will need to transfer your original instrument cluster, infotainment screen, vents, switches, and airbag. Verify with the seller exactly what is included. Some recyclers may sell the dash with the passenger airbag still installed.
- Verify Color and Trim: The XC40 and C40 were available with multiple interior color schemes and trim finishes (e.g., Charcoal, Oxide Red, different textures). A part number can have multiple color variations. Always visually compare the used part to your original dashboard or provide your VIN to the seller to ensure an exact match.
- Check All Mounting Points: Carefully inspect the back and underside of the panel. Look for cracked or broken plastic tabs and mounting points. A panel with damaged mounting points will not install securely and will likely cause rattles.
- Inspect for Sun Damage: Look for signs of fading, discoloration, or a brittle texture, which indicates heavy sun exposure. Avoid panels that appear dried out, as they are more prone to cracking during installation.
- Avoid Flood-Damaged Parts: Never purchase a dash panel from a vehicle with a flood-damaged history. It can harbor mold, mildew, and lead to electrical issues with transferred components down the road.
Replacement Difficulty and Labor Costs
Replacing the dash panel in a modern vehicle like the XC40 or C40 is a complex and time-consuming job.
- Difficulty Rating: 5 out of 5 (Expert Level)
- DIY Feasible: No. This is not recommended for a DIY mechanic.

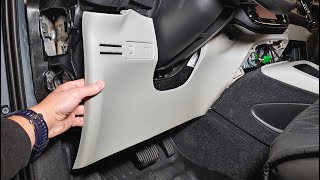

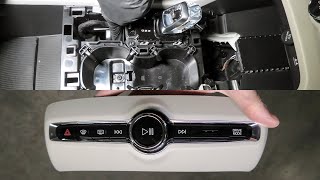

The process involves disconnecting the battery and systematically removing numerous components, including the A-pillar trim, 🎬 Watch this guide on removing the lower knee bolster panel center console, steering wheel 🎬 See how to remove the center console cluster and column, glove box, instrument cluster, infotainment screen, and the passenger airbag module. Due to the complexity and the critical safety systems involved (especially the airbag), this job should be left to a professional technician.
Estimated Shop Labor: Professional installation can take between 8 to 12 hours. With shop labor rates typically ranging from $100 to $200 per hour, the labor cost alone can be significant.
Pro Tip: Since the entire dashboard has to be removed, this is an opportune time to address other issues in this area, such as replacing a faulty climate control blend door actuator or addressing known rattle points with foam or felt tape.
Cost Comparison
The price for a replacement dash panel varies significantly based on whether you buy new OEM, used OEM, or have it installed by a professional.
| Part Source | Estimated Cost |
|---|---|
| New OEM Panel (Bare) | $1,040 - $1,452 |
| New Aftermarket Panel | Not Commonly Available |
| Used OEM Panel (Bare or with Airbag) | $300 - $500 |
| Shop Labor Cost | $826 - $1,212 |
Frequently Asked Questions (FAQ)
Will a dash panel from a Volvo C40 fit my XC40?
Yes, because the 2022-2024 C40 and 2019-2024 XC40 are built on the same platform, the main dash panel structure is interchangeable. However, you must ensure the color, material, and trim finish are an exact match for your vehicle's interior specification.
Does a replacement dash panel need to be programmed?
No, the bare dash panel itself is a non-electronic part and does not require any programming. However, the electronic components you transfer to it, such as the instrument cluster or infotainment system, are coded to your vehicle's VIN and must be correctly reinstalled.
Can I just fix a crack in my dashboard instead of replacing it?
For small cracks, professional interior repair specialists can sometimes fill and re-texture the area for $80 - $300. However, for large cracks, warping, or damage from an airbag deployment, full replacement is the only proper solution.
My dashboard is just rattling. Do I need to replace it?
No, a rattle does not require a full replacement. The noise is typically caused by a loose clip or trim piece. A technician can often diagnose the source of the rattle and secure it with foam padding or new clips, which is much less expensive than a full dash replacement.
Helpful Videos
Technical Specifications
OEM Part Numbers: 31442543 314425430 32227140
Material: Molded ABS plastic substrate with a vinyl, plastic, or textile top layer. Available in multiple colors and finishes, including but not limited to Charcoal and Oxide Red.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
