2020-2025 Toyota Highlander Dash Panel: A Guide to Compatibility, Rattles, and Recalls

Key Variant & Compatibility Checks for 2020-2025 Highlander Dash Panels

The single most important factor when purchasing a used dash panel for a 2020-2025 Toyota Highlander is ensuring it is compatible with your vehicle's specific options. The main trim piece surrounding the infotainment system and center stack is not a one-size-fits-all part. Fitment varies significantly based on screen size, model year, and the presence 🎬 Watch: Side-by-side comparison of the 8-inch vs 12.3-inch screen variants of a Head-Up Display (HUD).

• Screen Size: The most significant difference is the cutout for the infotainment screen. Early models came standard with an 8-inch screen, while a larger 12.3-inch screen was standard on the Platinum trim and optional on the Limited. In later model years, the 12.3-inch screen became more widely available. A panel designed for an 8-inch screen will not fit a vehicle with a 12.3-inch screen, and vice-versa.
• Head-Up Display (HUD): Higher trim levels like the Platinum are equipped with a HUD, which projects information onto the windshield. Dash panels for these models have a specific cutout on the driver's side for the HUD projector. A non-HUD panel will cover this opening. Part numbers like 55401-0E140-C1 and 55401-0E340-C1 are specifically listed for models 'With head-up display'.
• Model Year Splits: There appears to be a part number change around 2023. For example, part number 55401-0E140-C1 is listed for 2020-2022 models, while 55401-0E340-C1 is for 2023-2025 vehicles. While they may look similar, always try to match the part to your specific year range to ensure correct fitment of clips and mounting points.
• Color and Finish: Toyota used different colors and finishes across the trim levels, such as black, noble brown, and black/red combinations. The part number's suffix (e.g., -C1, -C2) often denotes the color. Be sure to match this to maintain your vehicle's interior aesthetic.

Known Issues, TSBs, and Recalls

While generally reliable, the Highlander's dash and instrument panel area are associated with a few known issues and a significant safety recall.

Instrument Panel Blank Screen Recall (NHTSA 25V595000)

In September 2025, Toyota issued a major recall (internal numbers 25TB08, 25TA08) for numerous models, including the 2023-2025 Highlander. A software error can cause the 12.3-inch digital instrument panel (the screen behind the steering wheel) to go blank at startup. This prevents the display of critical information like vehicle speed, warning lights, and tire pressure, increasing the risk of a crash. Dealers will perform a software update to fix the issue free of charge.

Dash Rattles and Noises

A common complaint among owners is the development of rattles, buzzes, or creaks from the dashboard area. These noises are often caused by the many plastic trim pieces and clips expanding and contracting with temperature changes, or from vibrations during driving. While there isn't a specific TSB for general dash rattles on the 2020-2025 model, this is a frequent topic in owner forums. The cause is typically plastic-on-plastic contact between panels.

Whistle Noise from Front Grille (TSB T-SB-0048-22)

Some 2020–2022 Highlander and Highlander Hybrid vehicles (excluding the XSE trim) may produce a whistling noise from the front of the vehicle at speeds over 35 mph. This is not a dash panel issue, but is often perceived as coming from the dash area. The noise is caused by the radiator grille bracket, and Toyota has issued a Technical Service Bulletin with a redesigned part to resolve it.

Symptoms of a Damaged Dash Panel

• Visible Damage: The most common reason for replacement is cosmetic damage. This includes deep scratches (especially on glossy 'piano black' surfaces), cracks from impact or sun exposure, and chemical melting from spilled air fresheners.
• Annoying Rattles and Buzzes: If a mounting tab or clip is broken, the panel may not sit securely, leading to persistent rattling noises that can be difficult to locate.
• Poor Fitment and Gaps: A warped or damaged panel may have noticeable gaps between it and adjacent trim pieces, such as the A-pillar trim or center console. This can be a sign of a previous improper installation or broken clips.
• Broken Vents or Controls: In some cases, the dash panel itself is fine, but an integrated component like an air vent louver is broken. Since these are often part of the larger panel assembly, the entire panel may need to be replaced.

Buying a Used 2020-2025 Highlander Dash Panel: What to Inspect

A used OEM dash panel can be an excellent value, but careful inspection is critical to getting a good part.

1. Verify Compatibility First: Before anything else, confirm the part is from a vehicle with the same screen size (8-inch or 12.3-inch) and HUD configuration as yours. Get the part number from the seller and compare it to your original part if possible.
2. Inspect All Mounting Tabs: This is the most critical physical check. Carefully examine the back of the panel and inspect every single mounting tab and clip receiver. Even one broken tab can cause a persistent rattle after installation. Ask the seller for clear, high-resolution photos of the back side.
3. Check for Surface Scratches and Blemishes: Get detailed photos of the front surface in good lighting. Glossy black finishes are notorious for showing fine scratches. Decide what level of cosmetic wear is acceptable to you.
4. Look for Hidden Repairs: Check the back of the panel for signs of glue, epoxy, or plastic welding. This indicates a previous attempt to fix a crack or broken tab, which may not hold up over time.
5. Confirm All Vents are Intact: If the panel includes air vents, make sure the louvers all move correctly and are not broken or disconnected from their adjustment tabs.

Replacement Overview

Replacing the main center dash panel is a moderately difficult task that requires patience and the right tools to avoid damaging other interior components.

• Difficulty: 3/5

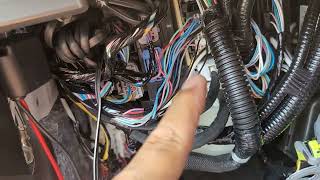

• Tools Required: Plastic trim removal tool kit, 🎬 Watch: How to safely remove the Highlander driver dash panel Phillips screwdriver, small socket set.
• General Steps:
  1. Disconnect the negative battery terminal.
  2. Use plastic pry tools to carefully remove adjacent trim pieces, which may include side panels, lower dash panels, and trim around the shifter.
  3. Once the main panel's edges are exposed, locate and remove any retaining screws.
  4. Gently pull the panel away from the dashboard. It is held in by a series of clips.
  5. Before fully removing, reach behind and disconnect any electrical connectors for the hazard switch, climate controls, etc.
  6. Transfer any components that are not included with the new panel, such as air vents or control modules.
  7. Installation is the reverse of removal. Be sure to press firmly to engage all clips and ensure there are no gaps.
