1999 Porsche 911 (996) Dash Panel: A Guide to Leather Shrinkage, Rattles, and Replacement

Primary Failure: The Infamous 996 Leather Dash Shrinkage

By far the most common and well-documented issue with the 1999 Porsche 911 dash panel is the shrinkage and peeling of the optional full leather covering. This problem typically appears around the defroster vents near the windshield. Over time, exposure to heat and sun causes the leather to dry out, lose its elasticity, and pull away from the underlying dash structure. The adhesive used by the factory fails, and the leather begins to ripple, bubble, or lift, creating an unsightly appearance. While regular conditioning can help prolong the life of the leather, once shrinkage begins, it is very difficult to reverse without professional intervention.

Other Common Dash Panel Issues in the 1999 911

While leather shrinkage is the most notorious problem, other issues can also affect the dash panel.

Symptoms of Failure

• Cracking and Warping (Vinyl Dashboards): Though less common than leather issues, the standard vinyl dash can become brittle with age and prolonged sun exposure, leading to cracks, especially in high-stress areas.
• Rattles, Squeaks, and Creaks: As the car ages, the various plastic and metal components of the dash assembly can begin to rub against each other or the windshield, causing persistent noises. Porsche even issued Technical Service Bulletins (TSBs) for dealers on how to strategically place felt to reduce these noises. TSBs 1/02 and 2/02 specifically address clicking noises from the right-hand side and center of the instrument panel.
• Damaged or Deformed Defroster Vents: The plastic defroster vent trim at the base of the windshield can become brittle and crack or warp from heat cycles.
• Airbag Cover Issues: The passenger airbag cover is integrated into the dash. In rare cases, the seams can begin to separate, or the cover can become deformed. Any damage in this area is a serious safety concern.
• Failing Instrument Cluster Displays: While not part of the dash panel itself, the instrument cluster it houses is prone to issues. The LCD screens for the odometer and trip computer can suffer from pixel loss or go blank entirely. Sometimes, the entire cluster can fail intermittently, which may be caused by failing internal electronics or simply loose connectors at the back of the unit.

Buying a Used 1999 Porsche 911 Dash Panel: A Buyer's Checklist

Due to the high cost of a new OEM dash panel, a quality used unit is often the best choice. However, careful inspection is critical to avoid buying a part that has the same problems you're trying to fix.

Step 1: Identify Your Dash Type (Leather vs. Vinyl)

The most important distinction is whether your car has the standard vinyl/leatherette dash or the optional full leather dash. They are not directly interchangeable without significant effort. A leather dash will have visible stitching and a softer, textured feel, while a vinyl dash has a more uniform, molded appearance.

Step 2: Match Your Interior Color Code

Porsche offered several interior colors for the 1999 model year, including Black, Graphite Grey, Metropole Blue, Savannah Beige, and Boxster Red. You must match the color code of the donor part to your vehicle's interior. The interior color code is typically a three-character code found on the vehicle's option sticker, which is usually located under the front trunk lid. Common codes include A11 for Black, C50/C51 for Graphite Grey, and S30/S31 for Savannah.

Step 3: Physical Inspection Checklist

• For Leather Dashes: This is the most critical inspection. Look very closely at the area around the defroster vents. Check for any signs of pulling, bubbling, or lifting. Run your fingers along the seams. Even minor shrinkage is a red flag, as it will likely worsen over time.
• Mounting Points: Flip the dash over and inspect all mounting tabs and screw holes. These plastic tabs can become brittle and break during removal. A dash with broken tabs will never fit securely and will be a source of rattles.
• Airbag Area: Carefully inspect the passenger airbag cover. Look for any discoloration, deformation, or stress marks around the seams. Never purchase a dash from a vehicle where the airbags have deployed.
• Structural Integrity: Check for any cracks in the underlying frame, especially around the instrument cluster opening and glove box. Also, check for signs of previous repairs, like epoxy or glue residue.
• Defroster Vents: Ensure the long plastic vent trim piece is intact and not cracked or warped. This part can be expensive to replace on its own.

A Note on Compatibility with the Boxster (986)

The 1997-2004 Porsche Boxster (986) shares a significant portion of its interior architecture with the 996 911. The main dash panel itself is often interchangeable between the two models, as confirmed by shared part numbers in the Porsche electronic parts catalog (PET). This can expand your search for a good used part. However, always verify the specific part number before purchasing.

Cost of Replacing a 1999 911 Dash Panel

Replacing the dash panel is a significant expense, primarily due to the intensive labor involved.

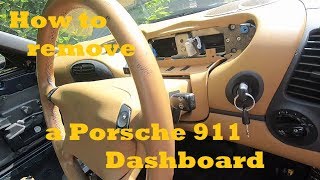

Dash Panel Replacement Overview

Replacing the dash panel is a complex and time-consuming task recommended only for experienced DIY mechanics or professionals. The process involves removing a significant portion of the interior.

Key steps in the replacement process include:

1. Disconnecting the battery.
2. Removing the steering wheel and instrument cluster.
3. Removing the center console, radio, and climate control unit.
4. Removing trim pieces, including A-pillar covers, side air vents, and speaker grilles.
5. Carefully unbolting and disconnecting the passenger airbag module from underneath the dash.
6. Locating and removing all screws and bolts securing the dash panel to the firewall and chassis.
7. Carefully maneuvering the old dash out of the car and installing the new one, which is the reverse of removal.

Known Issues, Recalls, and TSBs

There have been no specific NHTSA recalls for the dash panel itself on the 1999 Porsche 911. However, the 1999 model year, being the first for the 996 generation, had several other known issues and TSBs, including potential engine problems and oil leaks. Porsche did issue TSBs related to interior noises, including two that specifically address fixing clicking sounds from the dash area by strategically applying felt.
