1999-2005 Mazda Miata Dash Panel: A Guide to Cracks, Rattles, and Replacement
Your complete guide to diagnosing dash damage, choosing the right used replacement, and understanding the critical airbag safety procedures for your NB Miata.
- Airbag safety is the top priority. Check for Takata recalls using your VIN and always disconnect the battery before starting any work on the dashboard.
- Dash panels are different between early 'NB1' (1999-2000) and later 'NB2' (2001-2005) Miatas; source a replacement from the correct year range.
- When buying used, carefully inspect for cracks near the defrost vents and ensure all plastic mounting tabs on the back are intact to prevent future rattles.
- Replacement is a very difficult, expert-level job requiring nearly the entire interior to be removed. Professional installation is strongly recommended.
Symptoms of a Failing or Damaged Dash Panel
Since the dash panel is primarily a structural and cosmetic part, signs of failure are almost always visual or audible. There are no specific OBD-II codes associated with the dash panel itself.
Cracks and Warping
Years of sun exposure can cause the plastic to become brittle and crack, especially around the windshield defrost vents and speaker grilles. In severe cases, the dash can warp, pulling away from the windshield or causing fitment issues with other interior panels. This is the most common failure for these dashboards.
Rattles and Squeaks
A variety of annoying noises can come from the dashboard area. These are often caused by broken mounting tabs on the dash panel itself, allowing it to vibrate against the firewall or other components. Rattles can also come from loose items within the dash, like wiring harnesses or HVAC lines that have come unsecured during previous repairs. Some owners have traced rattles to the cowl area near the windshield 🎬 Watch this quick fix for a common NB dashboard rattle. or even the heater core lines.
Damaged Airbag Cover
The passenger airbag cover is an integrated part of the dash panel. After an airbag deployment, the cover is destroyed and cannot be repaired; the entire dash panel must be replaced. A visible crack or split in the seam of the airbag cover is a major safety concern and indicates the dash needs immediate replacement.
CRITICAL SAFETY WARNING: Takata Airbag Recall
Many older vehicles, including some Mazda models, were affected by the massive Takata airbag recall. These airbags can deploy with explosive force, sending metal shrapnel into the cabin, which can cause serious injury or death. Before purchasing a vehicle or working on the dash, use the VIN to check for any open recalls on the official NHTSA website or Mazda's recall information page. All safety recall repairs are performed free of charge by authorized dealers.
Buying a Used 1999-2005 Miata Dash Panel
Due to the high cost and potential discontinuation of new OEM dash panels, a quality used part is often the best choice. However, careful inspection is critical.
Step 1: Verify Compatibility (NB1 vs. NB2)
The 1999-2005 (NB) Miata is split into two sub-generations: the NB1 (1999-2000) and the NB2 (2001-2005). While the main dash panels look similar, there are differences in the interior, including the center console and stereo, that may affect compatibility. The chassis was also stiffened for 2001. Always purchase a dash from the same generation as your car (NB1 or NB2) to ensure proper fitment of all surrounding components.
Step 2: Match Your Interior Color
NB Miatas came with several interior colors over the years, primarily Black, Tan/Parchment, and special edition colors like Blue or Gray. The initial data for this article mentioned color codes -02 for Black and -21 for Tan. Forum discussions mention a beige code of B4. The most reliable way to ensure a match is to get the dash from a donor car with the same interior color scheme as yours.
Step 3: Physical Inspection Checklist
Before buying, inspect the used dash panel thoroughly:
- Check for Cracks: Pay close attention to the top surface, especially around the thin plastic areas near the defrost vents.
- Inspect Mounting Tabs: Turn the dash over and check all mounting points, especially the plastic tabs. Broken tabs are a primary cause of rattles and poor fitment.

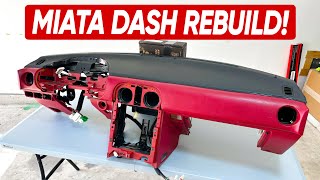

- Examine the Airbag Cover: Ensure the passenger airbag cover is intact, with no splits, cracks, or signs of tampering. 🎬 See how to restore and repair a damaged Miata dashboard. Never buy a dash that shows signs of a previous airbag deployment.
- Look for Warping: Place the dash on a flat surface to check for any significant warping or twisting.
- Assess Cosmetic Condition: Look for deep scratches, stains, or sun fading that may not be acceptable for your vehicle.
Replacement Overview and Difficulty
Replacing the dash panel is a complex and time-consuming job, not recommended for beginners.
- Installation Difficulty: 5 out of 5 (Expert)
- Estimated Time: 8-12 hours
- DIY Feasible?: Yes, for experienced mechanics.
The process involves removing the A-pillar trim, center console, radio, glove box, instrument cluster, steering wheel, and steering column. Numerous electrical connectors and control cables must be carefully disconnected and labeled.

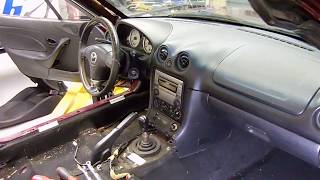

Warning: The airbag system is dangerous. Always disconnect the battery for at least 30 minutes before beginning any work. The passenger airbag is part of the dash assembly and must be handled with extreme care. Professional installation is highly recommended 🎬 Watch a full step-by-step walkthrough of removing an NB Miata dashboard. to ensure safety systems are reinstalled correctly.
Cost Comparison: New vs. Used
Aftermarket dash panels are generally not available, though some custom aluminum or vinyl wrap options exist for racers and customizers. Your main choices are new OEM or used OEM.
| Part Source | Estimated Cost |
|---|---|
| New OEM | $300 - $400+ (if available) |
| New Aftermarket | Not Generally Available |
| Used OEM | $150 - $300 |
| Shop Labor | $800 - $1200+ |
Frequently Asked Questions (FAQ)
Is the dash from a 1999 Miata the same as a 2004 Miata?
No. While they look very similar, the 1999 model is an 'NB1' and the 2004 is an 'NB2'. There were interior revisions in 2001, including to the center console and seats, which can affect how the dash fits with surrounding parts. It is best to source a replacement dash from the same year range (1999-2000 or 2001-2005) as your car.
My dash is rattling. Does the whole thing need to be replaced?
Not necessarily. Rattles can come from many sources. Common culprits include loose items in the glove box, a vibrating gauge cluster hood, or loose HVAC lines behind the dash. Try to pinpoint the source of the rattle by pressing on different parts of the dash while driving. Sometimes a rattle can be fixed by securing a loose wire or adding foam padding without removing the entire dashboard.
Can I just replace the passenger airbag cover?
No. The passenger airbag cover is an integral part of the dash panel structure. It is not sold as a separate component. If the cover is damaged or has been deployed, the entire dash panel assembly must be replaced.
Can I install a dash panel myself?
This is a very advanced DIY job. It requires extensive disassembly of the car's interior, including safety-critical components like the steering wheel and airbags. While guides and videos are available, it should only be attempted by those with significant mechanical experience. For most owners, professional installation is the safest option.
Helpful Videos
Technical Specifications
OEM Part Numbers: NC10-60-350 NC10-60-401A-02 NC10-60-401C-02 NC10-60-401D-02 NC10-60-401D-21 NC10-60-401D-80
Fits 1999-2005 Mazda MX-5 Miata. Material: Plastic shell over metal frame. Variations exist for NB1 (1999-2000) and NB2 (2001-2005) models. Multiple color codes exist, including Black and Tan/Parchment.
